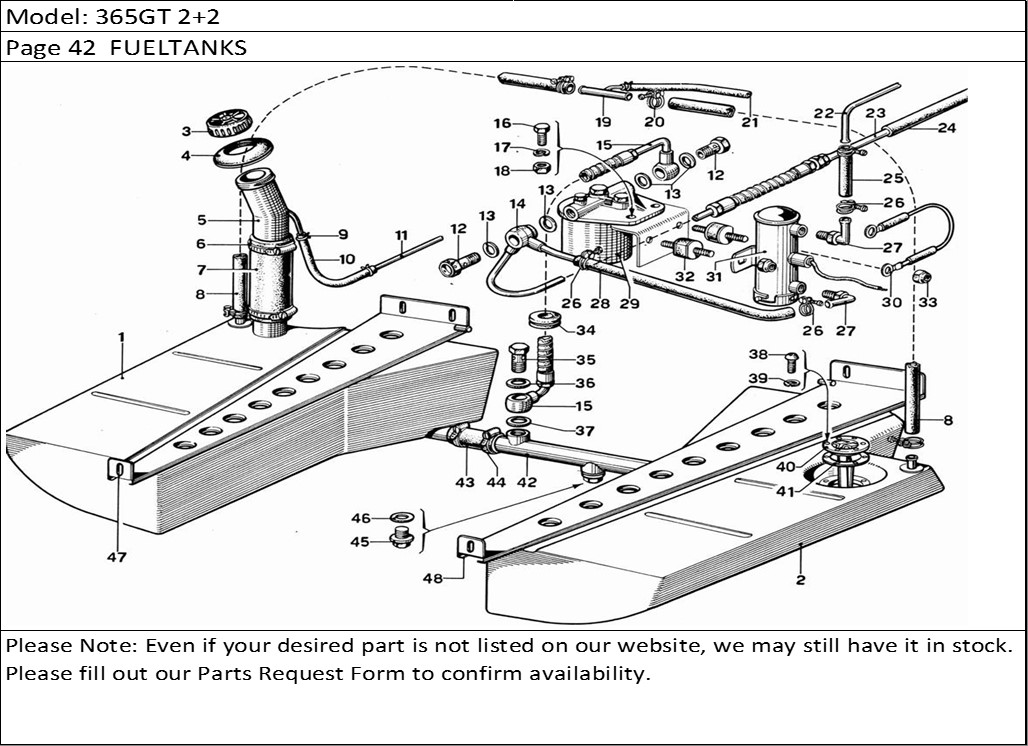

365GT 2+2 Page 42 FUELTANKS
Product Description
365GT 2+2 Page 42 FUELTANKS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 820741 | Serbatoio sinistro | 1 |
| 2 | 820742 | Serbatoio destro | 1 |
| 3 | 820486 | Tappo serbatoio | 1 |
| 4 | 20/6000 | Rubber Gasket | 1 |
| 5 | 820752 | UNION | 1 |
| 6 | BS. 3628 | Fascetta 0 50x70 | 2 |
| 7 | 95111 | Manicotto gomma | 1 |
| 8 | 0 16x22x20 | Tubo collegamento | 1 |
| 9 | 94951 | Spring | 3 |
| 10 | 95018 | SLEEVE | 2 |
| 11 | 180775 | Tubo di ritorno dal tubo alimentazione carburatori al serbatoio | 1 |
| 12 | 95253 | Union | 2 |
| 13 | 92786 | GASKET | 4 |
| 14 | 180742 | Complessivo tubo dal filtro alle pompe | 1 |
| 15 | 180772 | Complessivo tubo flessibile collegamento serbatoi al filtro | 1 |
| 16 | 10x25UNI 5 | Bolt | 2 |
| 17 | REG10 | Washer | 2 |
| 18 | 10x1,25 UN | Nut | 2 |
| 19 | 820570 | UNION | 1 |
| 20 | TIPO C15=1 | Jubilee Clip | 4 |
| 21 | 5 x 9 x 30 | Tubo sfiato . | 1 |
| 22 | 180774 | Complessivo tubo pompa elettrica al tubo alimentazione carburatori | 1 |
| 23 | 180773 | Assieme tubo rigido tra filtro e pompa meccanica | 1 |
| 24 | GEMMA 611x | Tubo protezione | 1 |
| 25 | 95303 | SLEEVE | 1 |
| 26 | TWO C. 013 | Jubilee Clip | 4 |
| 27 | 94918 | Union | 2 |
| 28 | 0 gx14x500 | Tubo per pompa . | 1 |
| 29 | 34341 | Filtro carburante FISPA 3037.06 | 1 |
| 30 | 34403 | Treccia per massa | 1 |
| 31 | V 476087 | Pompa benzina elettrica | 1 |
| 32 | 34408 Fr. | Support | 2 |
| 33 | 106 MA | Nut | 2 |
| 34 | 820571 | Cable Grommet | 1 |
| 35 | 95252 | Union | 1 |
| 36 | 92930 | GASKET | 1 |
| 37 | 95017 | GASKET | 6 |
| 38 | 4 VR4x10 | Screw | 6 |
| 39 | REG4 | Washer | 1 |
| 40 | 67.8034.99 | Comando indicatore benzina | 1 |
| 41 | 82925 | Gasket or Seal | 1 |
| 42 | 820740 | Tubo collegamento | 1 |
| 43 | 95003 | SLEEVE | 2 |
| 44 | 95026 29/ | Fascetta per tubo collegamento serbatoi | 4 |
| 45 | 16 TF 1 | Tappo scarico | 1 |
| 46 | 95109 | GASKET | 1 |
| 47 | - | Bracket / Support | 1 |
| 48 | - | Bracket / Support | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
