365GT 2+2 Page 45 TOOLKIT
Product Description
365GT 2+2 Page 45 TOOLKIT
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

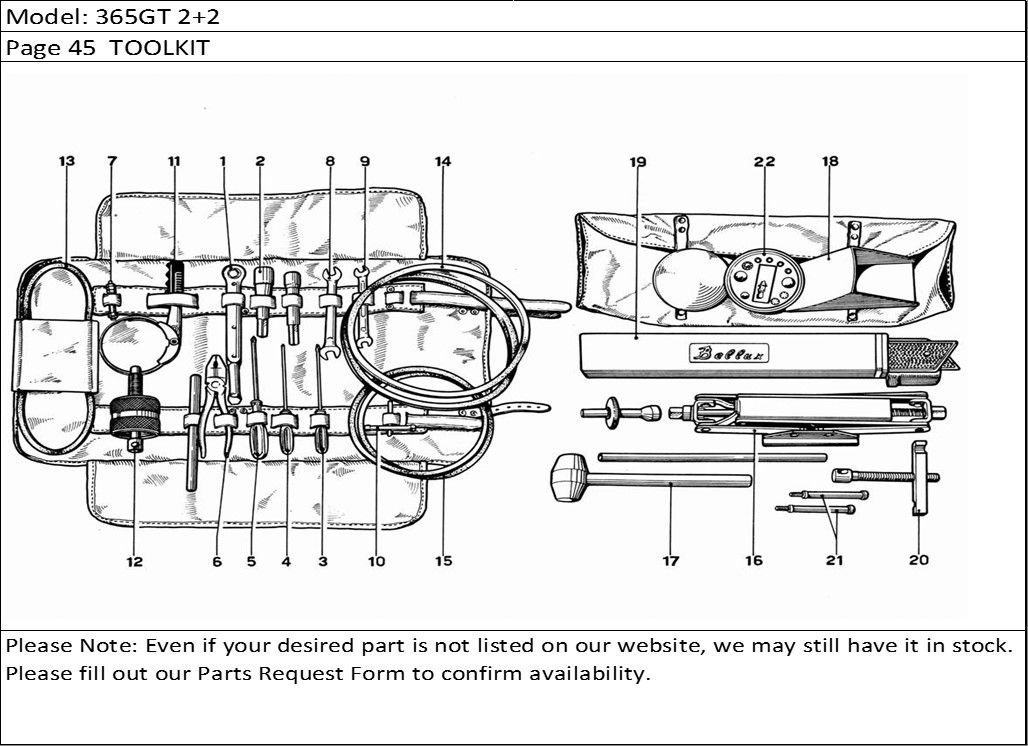

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 840017 | Chiave a cricchetto | 1 |
| 2 | 840016 | Chiave per candele | 1 |
| 3 | - | Cacciavite | 1 |
| 4 | - | Cacciavite a croce fino F 4 | 1 |
| 5 | - | Cacciavite a croce f. F 7-9 | 1 |
| 6 | - | Pinza universal da 190 mm | 1 |
| 7 | - | Tubetto rigido per ingras sare | 1 |
| 8 | - | Chiave fissa da mm. 12 x 14 | 1 |
| 9 | - | Chiave fissa da mm. 10 x 11 | 1 |
| 10 | 84114 | Chiave per carburatore | 1 |
| 11 | 36.901.000 | Chiave per filtro olio | 1 |
| 12 | 84055 | Estrattore per mozzi anteriori | 1 |
| 13 | 60366 | Cinghia per generatore | 1 |
| 14 | 60190 | Cinghie per compressore | 2 |
| 15 | 9,5x8.25x7 | Cinghie per pompa idraulica | 2 |
| 16 | BR 232 | Martinetto per sollevamento | 1 |
| 17 | - | Mazzuolo di piombo (kg.1.500) | 1 |
| 18 | - | Cuneo in lamiera | 1 |
| 19 | - | Triangolo di segnalazione | 1 |
| 20 | 840018 | Estrattore mozzi posteriori | 1 |
| 21 | - | Viti per estrattore | 2 |
| 22 | 12 V. 5/21 | Contenitore con: Lampada a doppio filamento | 1 |
| 22 | 12 V. 21 W | Contenitore con: Lampada | 1 |
| 22 | 12 V. 4 W | Contenitore con: Lampada | 1 |
| 22 | 12 V. 5 W | Contenitore con: Lampada | 1 |
| 22 | 8 Amp. | Contenitore con: Fusibile | 1 |
| 22 | 15 Amp. | Contenitore con: Fusibile | 1 |
| 22 | 30 Amp. | Contenitore con: Fusibile | 1 |
| 22 | 55 W. | Contenitore con: Lampada per proiettore conzoccolo P 14.5 S | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
