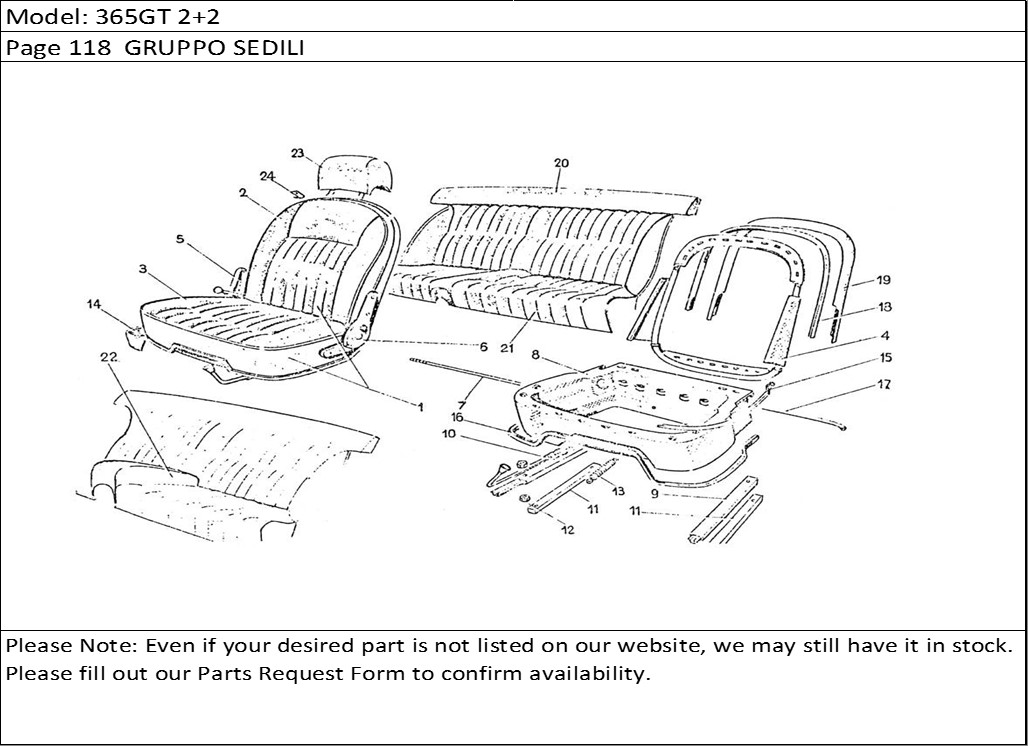

365GT 2+2 Page 118 GRUPPO SEDILI
Product Description
365GT 2+2 Page 118 GRUPPO SEDILI
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 2516700000 | Sedile ant.D confezionatosolo U.S.A. | 1 |
| 1 | 2516700100 | Sedile ant.S confezionatosolo U.S.A. | 1 |
| 1 | 2516600000 | Sedile anteriore D confezionatoComprende voci: 5-6-7-9-10 solo EUROPA | 1 |
| 1 | 2516600100 | Sedile anteriore S confezionato | 1 |
| 2 | 2426600200 | Schienale sedile anteriore confezionatosolo EUROPA | 2 |
| 2 | 2516700200 | Schienale sedile ant.confez.solo U.S.A. | 2 |
| 3 | 2516600400 | Cuscino sedile anteriore D confezionato | 1 |
| 3 | 2516600500 | Cuscino sedile anteriore S confezionato | 1 |
| 4 | 2516700606 | Ossatura schienale sed.ant.cpl.solo U.S.A. | 2 |
| 4 | 2416600616 | Ossatura schienale sedile anteriore cpl.solo EUROPA | 2 |
| 5 | 2426609002 | Dispositivo lat.regolaz.schien.sedile anteriore D | 1 |
| 5 | 2426609102 | Diapositivo lat.regolaz.schien.sodile anteriore S | 1 |
| 6 | 2416609302 | Dispositivo centr.regolaz.schien.sedile anteriore S | 1 |
| 6 | 2416609202 | Dispositivo certr.regolaz.schien.sedile anteriore D | 1 |
| 7 | 2416610201 | Barra di colleg.dispositivi regolaz. schienale | 2 |
| 8 | 2516616807 | Base sedile anteriore cpl. | 2 |
| 9 | 1446620006 | Guida esterna per scorr.sedile anteriore | 2 |
| 10 | 2516721106 | Guida int.con comando scorr.sedile Ssolo U.S.A. | 1 |
| 10 | 2516721006 | Guida int.con comando scorr.sedile Dsolo U.S.A. | 1 |
| 10 | 1446621106 | Guida interna con comardo scorr.sedile Ssolo EUROPA | 1 |
| 10 | 1446621006 | Guida interna con comardo scorr.sedile Dsolo EUROPA | 1 |
| 11 | 2516623006 | Spessoramento sotto sedile anteriore | 4 |
| 12 | 2416625001 | Tassello per appoggio estremit? guida mobile sedile anteriore | 12 |
| 13 | 2426625401 | Spring | 2 |
| 14 | 2516636400 | Guerniz.esterna per base sedile D | 1 |
| 14 | 2516636500 | Guerniz.esterna per base sedile S | 1 |
| 15 | 2416636808 | Molura per guerniz.est.base sedile D | 1 |
| 15 | 2416636908 | Molura per guerniz.est.base sedile S | 1 |
| 16 | 2516641000 | Guerniz.per aletta perimetrale base sedile | 2 |
| 17 | 2516641200 | Guerniz.per aletta inf.post.base sedile | 2 |
| 18 | 2426642408 | Molura per ebanisteria schienalo | 2 |
| 19 | 2426644010 | Ebanisteria schienale sedile ant.cpl. | 2 |
| 20 | 2516651000 | Schienale sedile posteriore confez. | 1 |
| 21 | 2516665000 | Cuscino sedile post.D confez. | 1 |
| 21 | 2516665100 | Cuscino sedile post.S confezionato | 1 |
| 22 | 2516690000 | Appoggiabraccia centr.post.confezionato | 1 |
| 23 | 2416648400 | Appoggiatesta cpl. confezionatosolo EUROPA | 1 |
| 24 | 2416649018 | Gancio per attacco appoggiateata a sedile 4 | 4 |
| 25 | 1446736803 | Springsolo U.S.A. | 2 |
| 26 | 2516735000 | Appoggiatesta completo confezionatosolo U.S.A. | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
