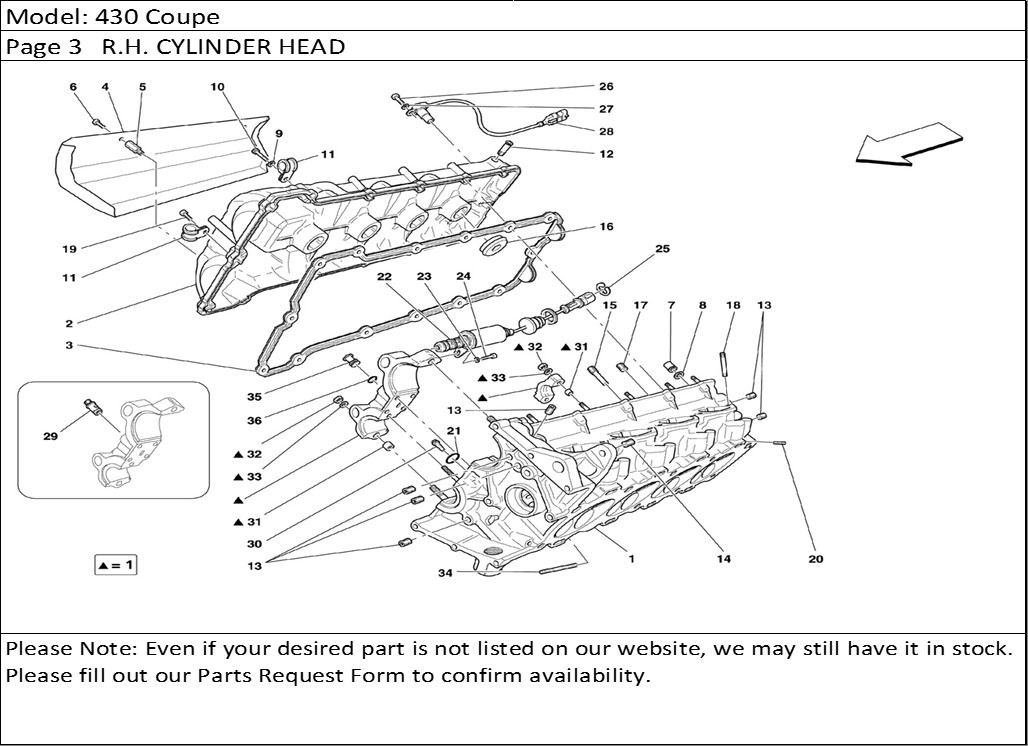

430 Coupe Page 3 R.H. CYLINDER HEAD
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
Location in Parts Diagram | Part # | Description | Quantity Used |
---|
1 | 206796 | COMPLETE R.H. HEAD -Valid till engine No. 97780- | 1 |
1 | 219172 | COMPLETE R.H. HEAD -Valid from engine Nr. 97781 and valid till engine Nr. 99607- -Valid till M.Y.06- | 1 |
1 | 218552 | COMPLETE R.H. HEAD -Valid from engine Nr. 99608- -Valid from M.Y. 06- -Valid till Ass. Nr. 71273- -Valid till stock exhaustion- | 1 |
1 | 235661 | COMPLETE R.H. HEAD -Valid from engine Nr. 99608- -Valid from M.Y. 06- -With valve seat Como 12- -Valid from Ass. Nr. 71274- -Valid after stock exhaustion of 218552- | 1 |
2 | 197575 | R.H. CYLINDERS HEAD COVER -Valid till Ass. Nr. 67970 for USA and CDN- -Valid till Ass. Nr. 69638 for not USA and CDN- | 1 |
2 | 221342 | R.H. CYLINDERS HEAD COVER -Valil from M.Y. 07- -Valid from Ass. Nr. 67971 for USA and CDN- -Valid from Ass. Nr. 69639 for not USA and CDN- | 1 |
3 | 198927 | R.H. HEAD COVER GASKET | 1 |
4 | 229163 | ANTI-HEAT SHIELD | 1 |
5 | 212466 | STUD | 1 |
6 | 14305724 | SCREW | 1 |
7 | 183524 | NUT | 10 |
8 | 151117 | SHER | 10 |
9 | 11197774 | SHER | 14 |
10 | 156834 | SCREW | 14 |
11 | 10441490 | BRACKET WITH SHEATH | 2 |
12 | 124342 | THREADED UNION | 1 |
13 | 14326001 | THREADED PLUG | 6 |
14 | 140135 | THREADED INSERT | 1 |
15 | 183447 | THREADED PLUG | 4 |
16 | 187706 | GASKET -Valid till Ass. Nr. 67970 for USA and CDN- -Valid till Ass. Nr. 69638 for not USA and CDN- | 4 |
16 | 223982 | GASKET -Valil from M.Y. 07- -Valid from Ass. Nr. 67971 for USA and CDN- -Valid from Ass. Nr. 69639 for not USA and CDN- | 4 |
17 | 164400 | THREADED PLUG | 1 |
18 | 13541334 | STUD | 8 |
19 | 233600 | SCREW | 1 |
19 | 14305124 | SCREW -Not as spare part- -Replaced by 233600- | 1 |
20 | 199760 | THREADED PLUG | 4 |
21 | 134233 | GASKET | 1 |
22 | 250646 | VARIATOR CONTROL SOLENOID VALVE | 1 |
23 | 11197774 | SHER -Not as spare part- | 1 |
24 | 231617 | SCREW | 1 |
24 | 14433124 | SCREW -Not as spare part- -Replaced by 231617- | 1 |
25 | 11087376 | FLEXIBLE RING | 1 |
26 | 14305224 | SCREW | 1 |
27 | 11197774 | SHER | 1 |
28 | 219865 | R.H. EXHAUST SHAFT PHASE SENSOR | 1 |
28 | 219864 | R.H. INDUCTION SHAFT PHASE SENSOR | 1 |
28 | 219349 | PHASE SENSOR -Not as spare part now- -Replaced by 219864 and 219865- | 2 |
28 | 177673 | PHASE SENSOR -Not as spare part now- -Replaced by 219349- | 2 |
29 | 184681 | OIL PRESSURE CHECK VALVE | 1 |
30 | 180266 | OIL FILTER | 1 |
31 | 102725 | CENTERING DOWEL | 22 |
32 | 15896214 | NUT | 22 |
33 | 11197774 | SHER | 22 |
34 | 211641 | STUD | 8 |
35 | 220239 | PLUG | 1 |
36 | 220245 | GASKET | 1 |
14 | 65520000 | FRONT FIXING BRACKET | 4 |
15 | 10902024 | SCREW | 8 |
16 | 12640677 | WASHER | 8 |
17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
29 | 10902424 | SCREW | 2 |
30 | 116413 | WASHER | 2 |
31 | 63234200 | SCREW | 2 |
32 | 12646801 | WASHER | 2 |
33 | 185378 | CLIP | 3 |
34 | 183672 | BULB -For gas lamps | 2 |
35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
36 | 65705400 | BRACKET -For gas lamps | 2 |
37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
38 | 155751 | CLIP -Valid for USA and CDN | 4 |
39 | 14084111 | NUT -Valid for USA and CDN | 8 |
40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
41 | 66120200 | INSULATION | 1 |
42 | 14190190 | NUT WITH CAGE | 2 |
43 | 64529600 | SPACER | 8 |
4 | 66325702 | Description not available | |
4 | 67259102 | Description not available | |
4 | 66325725 | Description not available | |
4 | 67259127 | Description not available | |
