430 Coupe Page 6 TIMING CONTROLS

Product Description

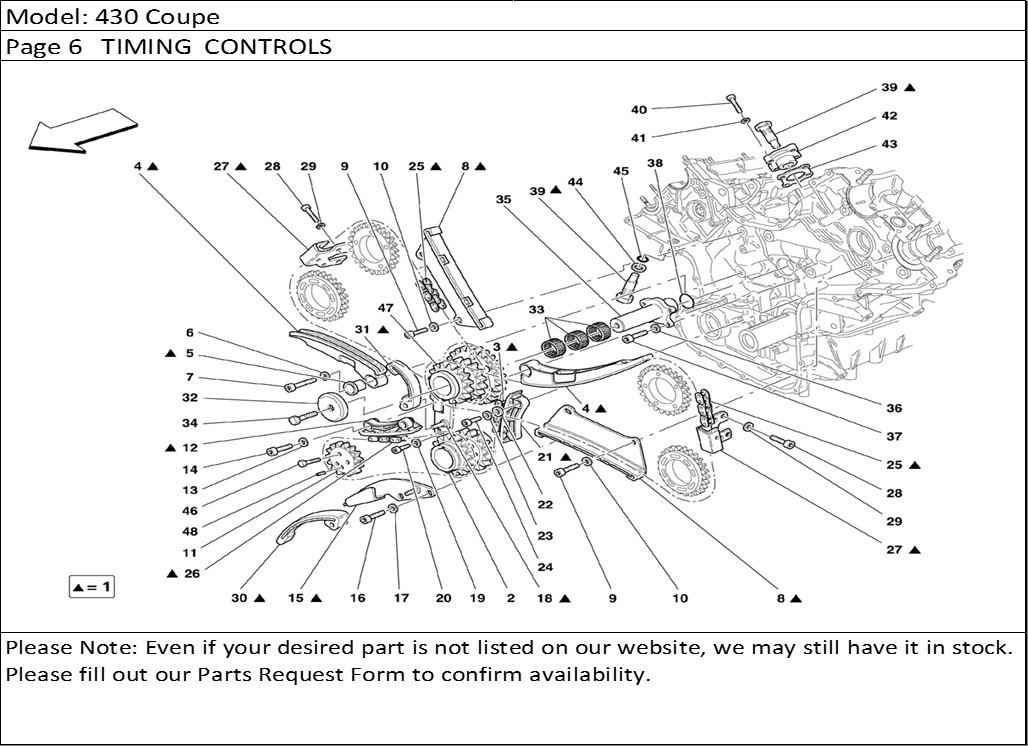

430 Coupe Page 6 TIMING CONTROLS

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts Diagram	Part #	Description	Quantity Used
1	197879	TIMING CONTROL ASSEMBLY	1
2	186854	CRANKSHAFT TOOTHED WHEEL	1
3	175286	TRANSMISSION CHAIN	1
4	186184	MOBILE GUIDE SHOE	2
5	175303	BUSHING	2
6	10569373	SHER	2
7	14306424	SCREW	2
8	186185	FIXED TENSION	2
9	14306224	SCREW	4
10	11193874	SHER	4
11	189564	TOOTHED WHEEL CONTROL PUMP	1
12	186186	FIXED TENSION	1
13	11197774	SHER	2
14	14305424	SCREW	2
15	185724	GUIDE SHOE SUPPORT	1
16	14305724	SCREW	2
17	11197774	SHER	2
18	186159	GUIDE SHOE SUPPORT	1
19	11197774	SHER	2
20	14305724	SCREW	2
21	186181	FIXED TENSION	1
22	12647624	SHER	2
23	11197774	SHER	2
24	14432224	SCREW	2
25	193616	TIMING CONTROL CHAIN	2
26	175314	CHAIN	1
27	189569	UPPER FIXED TENSION	2
28	14305934	SCREW	8
29	11197774	SHER	8
30	185725	CHAIN TIGHTENER GUIDE SHOE	1
31	196683	CHAIN TIGHTENER GUIDE SHOE	1
32	194262	SHOULDER	1
33	175282	ROLLER CAGE	3
34	16043124	SCREW	1
35	194261	SUPPORT -Valid till engine Nr. 116245-	1
35	227197	SUPPORT -Valid from engine Nr. 116246-	1
36	11181574	SHER	4
37	14304224	SCREW	4
38	104212	O.R. GASKET -Valid till engine Nr. 116245-	1
39	197880	HYDRAULIC TIGHTENER	2
40	14432224	SCREW	4
41	11197774	SHER	4
42	190060	BUSH FOR TIGHTENER	1
43	185854	GASKET	1
44	190171	SPACER	1
45	192069	O.R. GASKET	1
46	189563	SCREW	3
47	193565	TRANSMISSION TOOTHED WHEEL	1
48	189779	DOWEL	1
14	65520000	FRONT FIXING BRACKET	4
15	10902024	SCREW	8
16	12640677	WASHER	8
17	140594	REAR SIDE-MARKER LAMP -Valid for USA and CDN	2
17	147563	FRONT SIDE-MARKER LAMP -Valid for USA and CDN	2
18	65164700	HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer	1
19	65511700	GASKET -Valid for cars with headlights washer	1
20	65363000	HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer	1
21	65380000	HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer	2
22	65380100	L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
22	65667200	R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
23	15517201	SCREW -Valid for cars with headlights washer	6
24	65896600	R.H. SUPPORT -Valid for cars with headlights washer	1
24	65896700	L.H. SUPPORT -Valid for cars with headlights washer	1
25	65896400	R.H. PLUG -Valid for cars with headlights washer	1
25	65896500	L.H. PLUG -Valid for cars with headlights washer	1
26	10441590	BRACKET -Valid for cars with headlights washer	4
27	14296191	RIVET -Valid for cars with headlights washer	4
28	65161700	L. H. FRONT SIDE LIGHT SUPPORT	1
28	65161500	R. H. FRONT SIDE LIGHT SUPPORT	1
29	10902424	SCREW	2
30	116413	WASHER	2
31	63234200	SCREW	2
32	12646801	WASHER	2
33	185378	CLIP	3
34	183672	BULB -For gas lamps	2
35	65705600	L.H. BRACKET -For gas lamps	1
35	65705500	R.H. BRACKET -For gas lamps	1
36	65705400	BRACKET -For gas lamps	2
37	185554	FRONT LIGHT CONTROL STATION -For gas lamps	2
38	155751	CLIP -Valid for USA and CDN	4
39	14084111	NUT -Valid for USA and CDN	8
40	12638124	WASHER -Valid for USA and CDN	8
41	66120200	INSULATION	1
42	14190190	NUT WITH CAGE	2
43	64529600	SPACER	8
4	66325702	Description not available
4	67259102	Description not available
4	66325725	Description not available
4	67259127	Description not available
