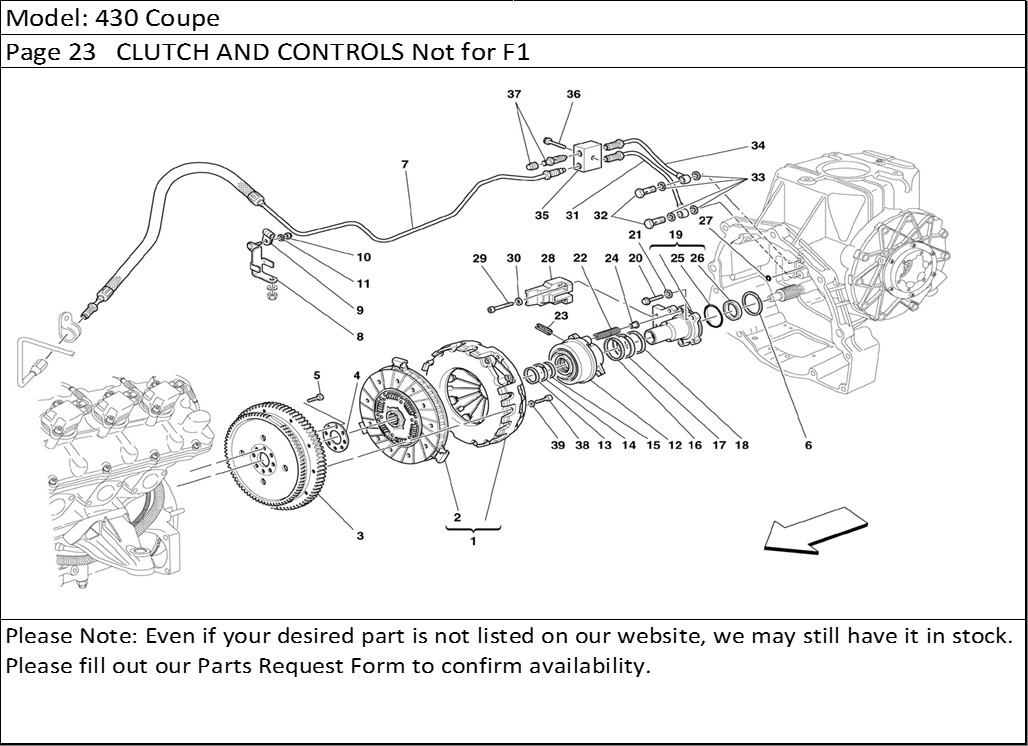

430 Coupe Page 23 CLUTCH AND CONTROLS Not for F1
Product Description
430 Coupe Page 23 CLUTCH AND CONTROLS Not for F1
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 222090 | COMPLETE CLUTCH -Not as spare part- -Replaced by 222090- | 1 |
| 1 | 222090 | COMPLETE CLUTCH | 1 |
| 2 | 222090 | CLUTCH DISC -Not as spare part now- | 1 |
| 3 | 230425 | COMPLETE ENGINE FLYWHEEL -Not as spare part- -Replaced by 230425- | 1 |
| 3 | 230425 | COMPLETE ENGINE FLYWHEEL | 1 |
| 4 | 103876 | FLYWHEEL FIXING WASHER | 1 |
| 5 | 201755 | SCREW | 8 |
| 5 | 103875 | SCREW -Not as spare part now- -Replaced by 201755- | 8 |
| 6 | 173360 | SPACER -Possible fitting- | 2 |
| 7 | 207386 | CLUTCH CONTROL HOSE -Valid till car Ass. Nr. 58632- | 1 |
| 7 | 219377 | CLUTCH CONTROL HOSE -Valid from car Ass. Nr. 58633- | 1 |
| 8 | 178342 | PIPES FIXING BRACKET | 1 |
| 9 | 10440990 | BRACKET WITH SHEATH | 1 |
| 10 | 102741 | NUT | 1 |
| 11 | 10730114 | SHER | 1 |
| 12 | 234943 | THRUST BEARING -Valid till Ass. Nr. 75199- -Valid till stock exhaustion- | 1 |
| 12 | 234943 | THRUST BEARING -Valid from Ass. Nr. 75200- -Valid after stock exhaustion of 208310- | 1 |
| 13 | 172970 | SCRAPER RING | 1 |
| 14 | 208014 | RING | 1 |
| 15 | 172972 | SEAL RING | 1 |
| 16 | 154508 | SEAL RING | 1 |
| 17 | 154507 | RING | 1 |
| 18 | 154551 | SCRAPER RING | 1 |
| 19 | CRF360/430 | COMPLETE BEARING SUPPORT FLANGE | 1 |
| 20 | 16052024 | SCREW | 2 |
| 21 | 12601374 | SHER | 2 |
| 22 | 155207 | PRELOAD SPRING | 2 |
| 23 | 14604170 | FLEXIBLE PIN | 1 |
| 24 | 155206 | SPACER FOR SPRING | 2 |
| 25 | 136140 | O.R. GASKET | 1 |
| 26 | 172363 | SEAL RING | 1 |
| 27 | 121813 | O.R. GASKET | 2 |
| 28 | 201160 | SUPPORT | 1 |
| 29 | 14358524 | SCREW | 2 |
| 30 | 10519378 | SHER | 2 |
| 31 | 242066 | CLUTCH CONTROL TUBE | 1 |
| 31 | 180183 | CLUTCH CONTROL TUBE -Not as spare part- -Replaced by 242066- | 1 |
| 32 | 11903811 | UNION | 2 |
| 33 | 10284460 | GASKET | 4 |
| 34 | 242074 | BLEEDER SYSTEM PIPE -Not as spare part- -Replaced by 242074- | 1 |
| 34 | 242074 | BLEEDER SYSTEM PIPE | 1 |
| 35 | 235706 | BLOCK -Valid from Ass. Nr. 72730- -Replaces 196918- | 1 |
| 35 | 235706 | BLOCK -Valid till Ass. Nr. 72729- -Not as spare part- -Replaced by 235706- | 1 |
| 36 | 16286324 | SCREW | 1 |
| 37 | 121699 | BLEEDER SCREW -Valid till Ass. Nr. 72729- -Not as spare part- -Replaced by 152954- | 1 |
| 37 | 152954 | BLEEDER SCREW -Valid from Ass. Nr. 72730- -Replaces 121699- | 1 |
| 38 | 204385 | SCREW | 9 |
| 39 | 11194379 | SHER | 9 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
