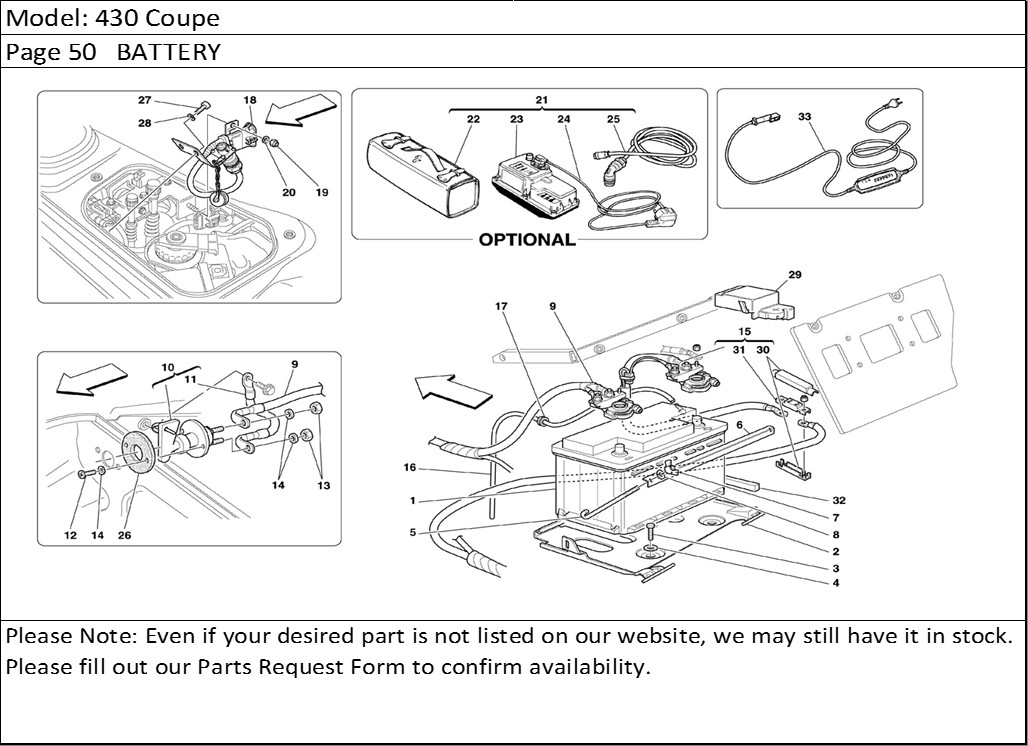

430 Coupe Page 50 BATTERY
Product Description
430 Coupe Page 50 BATTERY
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 168852 | BATTERY 12V TYPE VR760 | 1 |
| 2 | 67943100 | BATTERY BIN | 1 |
| 3 | 10902124 | SCREW | 3 |
| 4 | 12640624 | WASHER | 3 |
| 5 | 68138000 | TIE ROD | 2 |
| 6 | 69836200 | BRACKET -Not as spare part- -Replaced by 69836200- | 1 |
| 6 | 69836200 | BRACKET | 1 |
| 7 | 102741 | NUT | 2 |
| 8 | 14499324 | WASHER | 2 |
| 9 | 240646 | DASHBOARD CONNECTION CABLES -Full optional- -HI FI Bose system- -Not for GD- -Valid from car Nr. 157672 (Ass. Nr.74557)- -Valid from M.Y. 2008- | 1 |
| 9 | 240644 | DASHBOARD CONNECTION CABLES -Optional- -Navtrak- -Not for GD- -Valid from Ass. Nr. 71979- | 1 |
| 9 | 218507 | DASHBOARD CONNECTION CABLES -Valid for GD- -Not as spare part- -Replaced by 218507- | 1 |
| 9 | 218507 | DASHBOARD CONNECTION CABLES -Valid for GD- -Valid till car Ass. Nr. 61554- | 1 |
| 9 | 220462 | DASHBOARD CONNECTION CABLES -Valid for GD- -Valid from car Ass. Nr. 61555- -Valid till Ass.Nr.65448- | 1 |
| 9 | 227585 | DASHBOARD CONNECTION CABLES -Valid for GD- -Navtrak- -Valid from Ass. Nr. 65449- -Valid till Ass.Nr.71567- | 1 |
| 9 | 232682 | DASHBOARD CONNECTION CABLES -Valid for GD- -Full optional- -Navtrak- -Valid from Ass. Nr. | 1 |
| 9 | 241955 | DASHBOARD CONNECTION CABLES -Valid for GD- -Full optional- -Navtrak- -Valid from Ass. Nr. | 1 |
| 9 | 241956 | DASHBOARD CONNECTION CABLES -Valid for GD- -Full optional- -HI FI Bose system- -Valid from | 1 |
| 9 | 228204 | DASHBOARD CONNECTION CABLES -Valid for GD- -Navtrak- -Standard- -Valid from Ass. Nr. 65449- -Valid till Ass. Nr. 71567- | 1 |
| 9 | 232683 | DASHBOARD CONNECTION CABLES -Valid for GD- -Navtrak- -Standard- -Valid from Ass. Nr. | 1 |
| 9 | 241954 | DASHBOARD CONNECTION CABLES -Valid for GD- -Navtrak- -Standard- -Valid from Ass. Nr.71979- | 1 |
| 9 | 240643 | DASHBOARD CONNECTION CABLES -Full optional- -Navtrak- -Not for GD- -Valid from Ass. Nr. 71979- -Valid till car Nr. 157671 (Ass. Nr.74556)- -Valid till M.Y. 2008- | 1 |
| 9 | 232677 | DASHBOARD CONNECTION CABLES -Full optional- -Navtrak- -Not for GD- -Valid from Ass. Nr. 71568- -Valid till Ass. Nr. 71978- | 1 |
| 9 | 218503 | DASHBOARD CONNECTION CABLES -Not for GD- -Valid till stock exhaustion- | 1 |
| 9 | 218384 | DASHBOARD CONNECTION CABLES -Standard- -Not for GD- -Valid till Ass. Nr. 61554- | 1 |
| 9 | 218503 | DASHBOARD CONNECTION CABLES -Full optional- -Not for GD- -Valid till Ass. Nr. 61554- | 1 |
| 9 | 231520 | DASHBOARD CONNECTION CABLES -Standard- -Not for GD- -Valid from Ass. Nr. 61555- -Valid till Ass. Nr. 67217 for USA and CDN- -Valid till stock exhaustion for not USA and CDN- -Valid till Ass. Nr.71567- | 1 |
| 9 | 232674 | DASHBOARD CONNECTION CABLES -Standard- -Not for GD- -Valid from Ass. Nr. 71568- -Valid till Ass. Nr. 71978- | 1 |
| 9 | 240642 | DASHBOARD CONNECTION CABLES -Standard- -Not for GD- -Valid from Ass. Nr. 71979- | 1 |
| 9 | 231520 | DASHBOARD CONNECTION CABLES -Standard- -Not for GD- -Valid from Ass. Nr.67218 for USA and CDN- -Valid after stock exhaustion of 220460 for not USA e CDN- -Valid till Ass. Nr. 71567- | 1 |
| 9 | 232679 | DASHBOARD CONNECTION CABLES -Standard- -Not for GD- -Valid for USA and CDN- -Valid from Ass. Nr. 71568- -Valid till Ass. Nr. 71978- | 1 |
| 9 | 233837 | DASHBOARD CONNECTION CABLES -Standard- -Not for GD- -Valid for USA and CDN- -Valid from Ass.Nr.71979- | 1 |
| 9 | 220461 | DASHBOARD CONNECTION CABLES -Full optional- -Not for GD- -Valid from car Ass. Nr. 61555- -Valid till Ass. Nr. 65970- | 1 |
| 9 | 227584 | DASHBOARD CONNECTION CABLES -Full optional- -Navtrak- -Not for GD- -Valid from Ass. Nr. 65971- -Valid till Ass. Nr. 67217- | 1 |
| 9 | 231519 | DASHBOARD CONNECTION CABLES -Full optional- -Navtrak- -Not for GD- -Valid from Ass. Nr. 67218- -Valid till Ass. Nr. 71567- | 1 |
| 10 | 240470 | CUT-OUT SWITCH ASSEMBLY | 1 |
| 10 | 240470 | CUT-OUT SWITCH ASSEMBLY -Not as spare part- -Replaced by 240470- | 1 |
| 11 | 196451 | GROUND CABLE | 1 |
| 12 | 13272472 | SCREW | 2 |
| 13 | 10721911 | NUT | 2 |
| 14 | 14496277 | WASHER | 4 |
| 15 | 233463 | COMPLETE BATTERY POSITIVE CABLE -Valid for GD- -Valid after stock exhaustion of 210793- | 1 |
| 15 | 210793 | COMPLETE BATTERY POSITIVE CABLE -Valid for GD- -Valid till stock exhaustion- | 1 |
| 15 | 233462 | COMPLETE BATTERY POSITIVE CABLE -Not for GD- -Valid after stock exhaustion of 198700- | 1 |
| 15 | 233462 | COMPLETE BATTERY POSITIVE CABLE -Not for GD- -Valid till stock exhaustion- | 1 |
| 16 | 181056 | BATTERY VENT PIPE | 1 |
| 17 | 10396280 | CABLE BUSHING | 1 |
| 18 | 200857 | BATTERY CHARGING CONNECTION CABLE -Optional- | 1 |
| 19 | 102741 | NUT -Optional- | 1 |
| 20 | 10519424 | WASHER -Optional- | 1 |
| 21 | 178682 | BATTERY CHARGER KIT -Optional- | 1 |
| 22 | 65699200 | BATTERY BAG CASE -Optional- | 1 |
| 23 | 177791 | BATTERY CHARGER -230V- -Optional- | 1 |
| 24 | 177794 | ER SUPPLY CABLE -Optional- | 1 |
| 25 | 178676 | CABLE WITH CONNECTOR -Optional- | 1 |
| 26 | 198207 | GASKET | 1 |
| 27 | 10902224 | SCREW | 1 |
| 28 | 12644424 | WASHER | 1 |
| 29 | 185418 | PROTECTION COVER | 1 |
| 30 | 198703 | MEGA FUSE SUPPORT | 1 |
| 31 | 198704 | MEGA FUSE | 1 |
| 32 | 217351 | GASKET | 1 |
| 33 | 231503 | BATTERY CHARGER KIT -Not for USA, CDN, GB, J- -Optional- | 1 |
| 33 | 260121 | BATTERY CHARGER KIT -Valid for USA and CDN- -Optional- | 1 |
| 33 | 231506 | BATTERY CHARGER KIT -Valid for GB- -Optional- | 1 |
| 33 | 236798 | BATTERY CHARGER KIT -Valid for J- -Optional- | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
