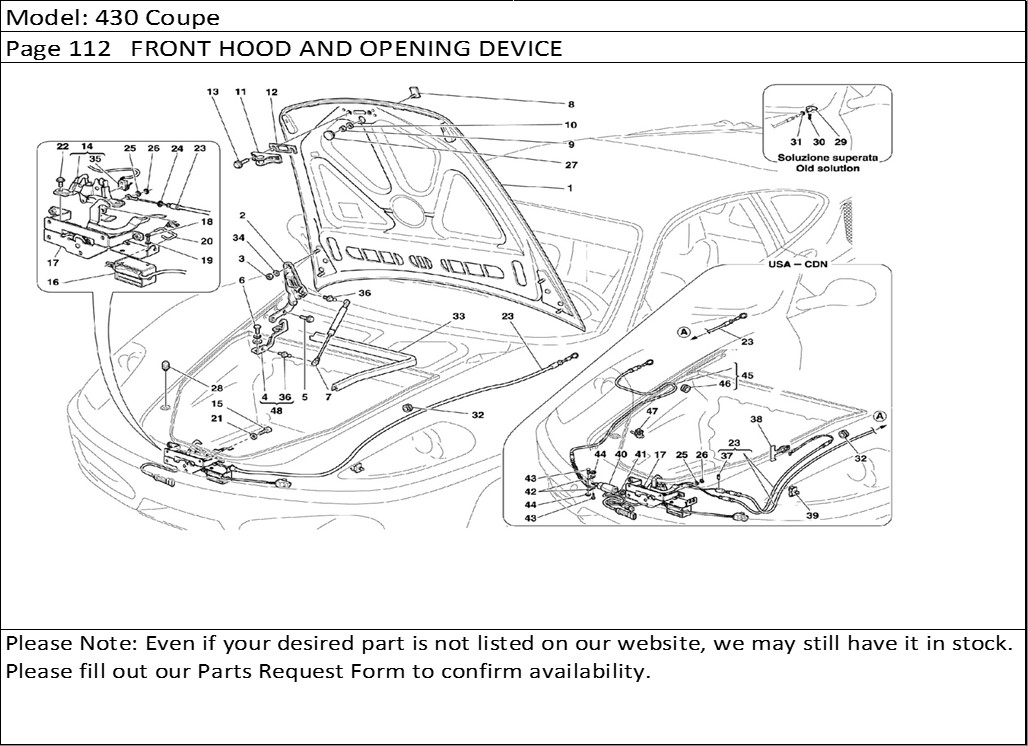

430 Coupe Page 112 FRONT HOOD AND OPENING DEVICE
Product Description
430 Coupe Page 112 FRONT HOOD AND OPENING DEVICE
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 80870811 | COMPLETE FRONT HOOD BONNET -Valid till Ass. Nr. 74570- -Valid till stock exhaustion- | 1 |
| 1 | 80870811 | COMPLETE FRONT HOOD BONNET -Valid from Ass. Nr. 74571- -Valid after stock exhaustion of 65313100- | 1 |
| 2 | 65712200 | COMPLETE R.H. HINGE -Valid till Ass. Nr. 74453- | 1 |
| 2 | 80945700 | COMPLETE R.H. HINGE -Valid from Ass. Nr. 74454- | 1 |
| 2 | 65712300 | COMPLETE L.H. HINGE -Valid till Ass. Nr. 74453- | 1 |
| 2 | 80945900 | COMPLETE L.H. HINGE -Valid from Ass. Nr. 74454- | 1 |
| 3 | 13832211 | NUT | 4 |
| 4 | 65710700 | L.H. BRACKET | 1 |
| 4 | 65710600 | R.H. BRACKET | 1 |
| 5 | 16287124 | SCREW | 4 |
| 6 | 16287127 | SCREW | 4 |
| 7 | 67508100 | SHOCK ABSORBER FOR HOOD SUPPORT -Valid till Ass. Nr. 74557- | 2 |
| 7 | 80136300 | SHOCK ABSORBER FOR HOOD SUPPORT -Valid from Ass. Nr. 74558- | 1 |
| 8 | 65394800 | FRONT ORNAMENT | 1 |
| 9 | 169180 | NUT | 1 |
| 10 | 10519378 | WASHER | 1 |
| 11 | 65770100 | STRIKER | 1 |
| 12 | 65772100 | THICKNESS | 1 |
| 13 | 16286027 | SCREW | 2 |
| 14 | 67046200 | COMPLETE INNER DEVICE FOR FRONT HOOD OPENING | 1 |
| 15 | 13027026 | SCREW | 4 |
| 16 | 65757300 | ACTUATOR | 1 |
| 17 | 80807300 | COMPLETE BRACKET -Valid for USA and CDN- -Valid from Ass. Nr. 74672- | 1 |
| 17 | 67364800 | COMPLETE BRACKET -Valid for USA and CDN- -Valid till Ass. Nr. 74671- | 1 |
| 17 | 80804300 | COMPLETE BRACKET -Not for USA and CDN- -Valid from Ass. Nr. 74672- | 1 |
| 17 | 67011600 | COMPLETE BRACKET -Not for USA and CDN- -Valid till Ass. Nr. 74671 - | 1 |
| 18 | 13271814 | SCREW | 2 |
| 19 | 127492 | WASHER | 2 |
| 20 | 65777800 | SMALL ROD | 1 |
| 21 | 11194674 | WASHER | 4 |
| 22 | 16296927 | SCREW | 2 |
| 23 | 65801300 | CABLE FOR FRONT HOOD OPENING -Not for USA and CDN- | 1 |
| 23 | 67404100 | CABLE FOR FRONT HOOD OPENING -Valid for USA and CDN- -Not as spare part- -Replaced by 69328800- | 1 |
| 23 | 69328800 | CABLE FOR FRONT HOOD OPENING -Valid for USA and CDN- | 1 |
| 24 | 11087676 | FLEXIBLE RING | 1 |
| 25 | 14496101 | WASHER | 1 |
| 26 | 11087476 | FLEXIBLE RING | 1 |
| 27 | 14506787 | PLUG | 1 |
| 28 | 65546600 | SMALL BLOCK | 2 |
| 29 | 60710900 | EMERGENCY HANDLE -Not as spare part- | 1 |
| 30 | 60711000 | CLIP -Not as spare part- | 1 |
| 31 | 11087674 | FLEXIBLE RING -Not as spare part- | 1 |
| 32 | 10396180 | CABLE GROMMET | 2 |
| 33 | 65850000 | GASKET FOR TRUNK HOOD | 1 |
| 34 | 12646724 | WASHER | 4 |
| 35 | 67493300 | MICRO-SWITCH | 1 |
| 36 | 65939900 | PIN -Q.ty 2 from Ass. Nr. 74558- | 4 |
| 37 | 60276805 | DOWEL -Valid for USA and CDN- | 1 |
| 38 | 67053000 | HANDLE FOR SAFETY CHILDREN -Valid for USA and CDN- | 1 |
| 39 | 62854300 | FIXING CLIP -Valid for USA and CDN- | 1 |
| 40 | 67365100 | ACTUATOR -Valid for USA and CDN- | 1 |
| 41 | 60538800 | RING NUT -Valid for USA and CDN- | 1 |
| 42 | 67558300 | SMALL LINK -Valid for USA and CDN- | 2 |
| 43 | 67555700 | PIN-Valid for USA and CDN- | 2 |
| 44 | 11087476 | FLEXIBLE RING -Valid for USA and CDN- | 2 |
| 45 | 67405000 | EMERGENCY CABLE -Valid for USA and CDN- | 1 |
| 46 | 10396180 | CABLE GROMMET -Valid for USA and CDN- | 1 |
| 47 | 65897700 | CLIP -Valid for USA and CDN- -Valid till Ass. Nr. 72259- | 1 |
| 47 | 177553 | CLAMP -Valid from Ass. Nr. 72260- | 1 |
| 48 | 69977000 | R.H. BRACKET ASSEMBLY | 1 |
| 48 | 69977100 | L.H. BRACKET ASSEMBLY -Valid till Ass. Nr. 74557- | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
