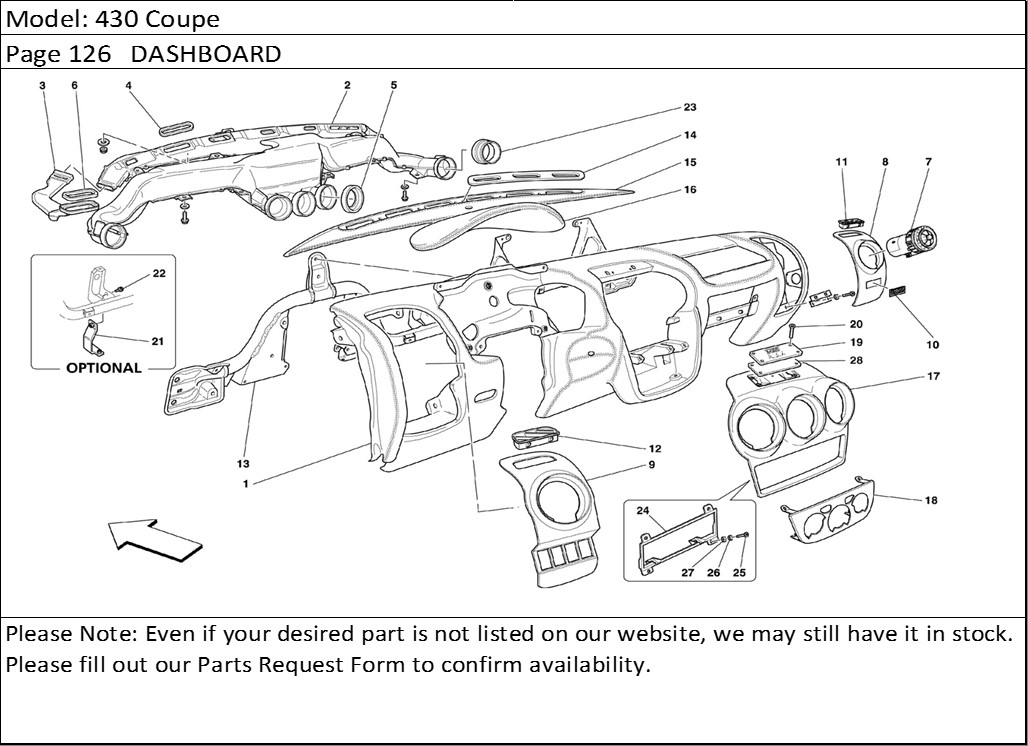

430 Coupe Page 126 DASHBOARD
Product Description
430 Coupe Page 126 DASHBOARD
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 802694 | DASHBOARD WITH INSTRUMENTS -Not for USA, CDN, GD and J- -Standard- | 1 |
| 1 | 683583 | DASHBOARD WITH INSTRUMENTS -Valid for GB- -Air-bag de-activation- | 1 |
| 1 | 676850 | DASHBOARD WITH INSTRUMENTS -Not for GB- -Air-bag de-activation- | 1 |
| 1 | 691418 | DASHBOARD WITH INSTRUMENTS -Valid for J- -Standard- | 1 |
| 1 | 691419 | DASHBOARD WITH INSTRUMENTS -Valid for AUS- -Standard- | 1 |
| 1 | 802697 | DASHBOARD WITH INSTRUMENTS -Valid for GB- -Standard- | 1 |
| 1 | 693051 | DASHBOARD WITH INSTRUMENTS -Valid for CDN- -Standard- | 1 |
| 1 | 692126 | DASHBOARD WITH INSTRUMENTS -Valid for USA- -Standard- | 1 |
| 2 | 63352900 | AIR DUCTING-Not for GD- | 1 |
| 2 | 65536200 | AIR DUCTING-Valid for GD- | 1 |
| 3 | 65132400 | L.H. SIDE DUCTING | 1 |
| 3 | 65132300 | R.H. SIDE DUCTING | 1 |
| 4 | 66050600 | GASKET | 6 |
| 5 | 63353300 | CENTRAL AIR OPENING GASKET | 3 |
| 5 | 63353300 | CENTRAL AIR OPENING GASKET -Not as spare part now- -Replaced by 63353300- | 3 |
| 6 | 65132500 | GASKET | 2 |
| 7 | 68811300 | AIR DIFFUSOR OPENING | 5 |
| 8 | 67796810 | R.H. AIR OUTLET PLATE -Standard- -PPG236411 col sm.met.gr.opaco W 682- | 1 |
| 8 | 68648100 | R.H. AIR OUTLET PLATE -Optional- -Carbon version- | 1 |
| 9 | 67916310 | L.H. AIR OUTLET PLATE -Standard- -PPG236411 col sm.met.gr.opaco W 682- | 1 |
| 9 | 68648200 | L.H. AIR OUTLET PLATE -Optional- -Carbon version- | 1 |
| 10 | 80462510 | 60 ANNI MARK | 1 |
| 10 | 69833810 | CAMPIONI DEL MONDO PLATE | 1 |
| 10 | 69065010 | CAMPIONI DEL MONDO 2004 PLATE -Not as spare part- -Replaced by 69833810- | 1 |
| 10 | 68124210 | CAMPIONI DEL MONDO 2003 PLATE | 1 |
| 11 | 67919000 | R.H. PLATE | 1 |
| 12 | 67919100 | L.H. PLATE | 1 |
| 13 | 68356100 | DASHBOARD FRAME ASSEMBLY -Valid for GD- | 1 |
| 13 | 67790600 | DASHBOARD FRAME ASSEMBLY -Not for GD- | 1 |
| 14 | 65018300 | L.H. AIR OUTLET PLATE -Not for GD- | 1 |
| 14 | 65891000 | L.H. AIR OUTLET PLATE -Valid for GD- | 1 |
| 14 | 65018200 | R.H. AIR OUTLET PLATE -Not for GD- | 1 |
| 14 | 65891100 | R.H. AIR OUTLET PLATE -Valid for GD- | 1 |
| 15 | 696595 | MOULDING FOR WINDSCREEN AIR PLATE -Not for GD- | 1 |
| 15 | 696596 | MOULDING FOR WINDSCREEN AIR PLATE -Valid for GD- | 1 |
| 16 | 684217 | DASH BOARD | 1 |
| 17 | 67796610 | UPPER CENTRALPLATE -Standard- -PPG236411 col sm.met.gr.opaco W 682- | 1 |
| 17 | 68648300 | UPPER CENTRALPLATE -Optional- -Carbon version- | 1 |
| 18 | 67797010 | ER CENTRALPLATE -Standard- -PPG236411 col sm.met.gr.opaco W 682- | 1 |
| 18 | 68648400 | ER CENTRALPLATE -Optional- -Carbon version- | 1 |
| 19 | 80728900 | CUSTOMER PLATE -Optional- -Valid after stock exhaustion of 69119900- | 1 |
| 19 | 69119900 | CUSTOMER PLATE -Optional- -Valid till stock exhaustion- | 1 |
| 19 | 68872700 | CAR MODEL PLATE -Optional- -Carbon- | 1 |
| 19 | 68719900 | CAR MODEL PLATE -Standard- | 1 |
| 20 | 68927600 | SCREW -Black- | 4 |
| 20 | 64214100 | SCREW -Selfblocking- | 4 |
| 21 | 68615200 | BOX AMPLIFIER FIXING BRACKET -Optional- -Valid for cars with amplifier- -Not for GD- | 1 |
| 21 | 69074200 | BOX AMPLIFIER FIXING BRACKET -Optional- -Valid for cars with amplifier- -Valid for GD- | 1 |
| 22 | 16285127 | SCREW -Optional- -Valid for cars with amplifier- | 2 |
| 23 | 68135000 | L.H. SIDE AIR OPENING GASKET | 1 |
| 23 | 68134900 | R.H. SIDE AIR OPENING GASKET | 1 |
| 24 | 68662200 | CAR RADIO FRAME | 1 |
| 25 | 14304021 | SCREW | 4 |
| 26 | 12637824 | WASHER | 4 |
| 27 | 12620374 | WASHER | 4 |
| 28 | 69140100 | CUSTOMER PLATE SUPPORT | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
