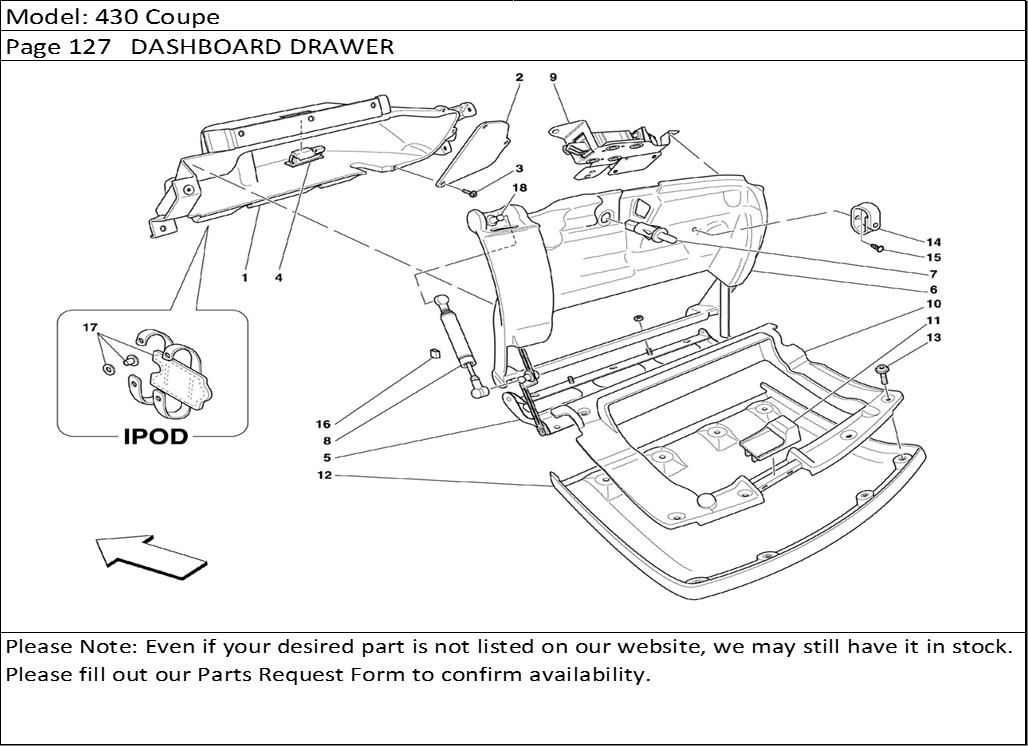

430 Coupe Page 127 DASHBOARD DRAWER
Product Description
430 Coupe Page 127 DASHBOARD DRAWER
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 69894800 | DRAWER -Valid till stock exhaustion- -Not for satellite anti-theft- -Not for GD- | 1 |
| 1 | 69894800 | DRAWER -Valid after stock exhaustion of 68354500- -Valid for satellite anti-theft- -Not for GD- | 1 |
| 1 | 80124800 | DRAWER -Optional- -IPOD presetting version- -Not for GD- | 1 |
| 1 | 69988900 | DRAWER -Valid for GD- | 1 |
| 1 | 80145900 | DRAWER -Optional- -IPOD presetting version- -Valid for GD- | 1 |
| 2 | 68354600 | END PLATE | 1 |
| 3 | 16082801 | SCREW | 3 |
| 4 | 188250 | DRAWER LAMP | 1 |
| 5 | 67795900 | COMPLETE BOX HINGE | 1 |
| 6 | 67793400 | GLOVE BOX FRAME | 1 |
| 7 | 188266 | PUSH BUTTON | 1 |
| 8 | 68353800 | SHOCK ABSORBER FOR DOOR | 1 |
| 9 | 68663100 | LOCK | 1 |
| 10 | 67795800 | DOOR FRAME | 1 |
| 11 | 68662600 | HOOK | 1 |
| 12 | 677951 | COVERED DOOR | 1 |
| 13 | 64460500 | SCREW | 8 |
| 14 | 68810900 | BELT FOR LIGHT | 2 |
| 15 | 61568600 | BUTTON | 2 |
| 16 | 65079200 | RUBBER | 2 |
| 17 | 80146600 | COMPLETE IPOD ELASTIC -Optional- -IPOD presetting version- | 1 |
| 18 | 15151911 | PIN | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
