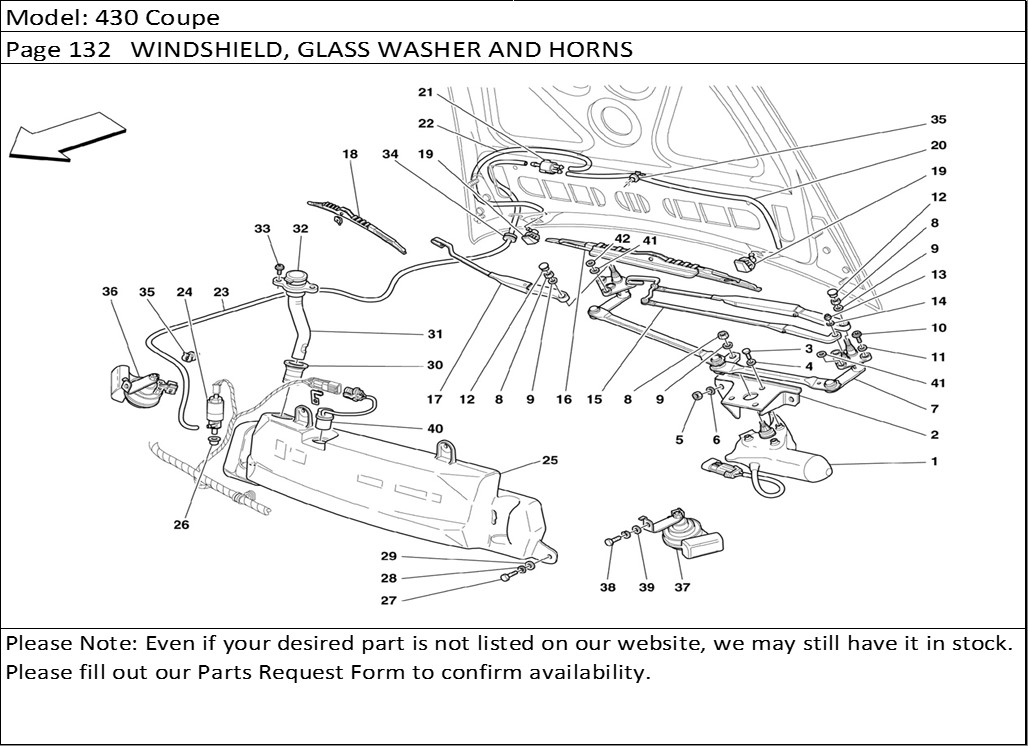

430 Coupe Page 132 WINDSHIELD, GLASS WASHER AND HORNS
Product Description
430 Coupe Page 132 WINDSHIELD, GLASS WASHER AND HORNS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 63780200 | WINDSHIELD WIPER MOTOR | 1 |
| 2 | 173416 | WINDSHIELD WIPER MOTOR FASTENING BRACKET | 1 |
| 3 | 10902224 | SCREW | 3 |
| 4 | 127494 | WASHER | 3 |
| 5 | 104030 | NUT | 3 |
| 6 | 14496524 | WASHER | 3 |
| 7 | 65409100 | COMPLETE WINDSHIELD WIPER LEVERAGE -Not for GD- | 1 |
| 7 | 65849300 | COMPLETE WINDSHIELD WIPER LEVERAGE -Valid for GD- | 1 |
| 8 | 16100814 | NUT | 3 |
| 9 | 12601374 | WASHER | 3 |
| 10 | 64830600 | SCREW | 6 |
| 11 | 12644477 | WASHER | 6 |
| 12 | 65190900 | SMALL COVER | 2 |
| 13 | 15896472 | NUT | 1 |
| 14 | 12601176 | WASHER -Not as spare part- -Replaced by 12601174- | 1 |
| 14 | 12601174 | WASHER | 1 |
| 15 | 65849400 | DRIVER SIDE WINDSHIELD WIPER ARM -Valid for GD- | 1 |
| 15 | 65409200 | DRIVER SIDE WINDSHIELD WIPER ARM -Not for GD- | 1 |
| 16 | 63776100 | DRIVER SIDE WIPER BRUSH | 1 |
| 17 | 65409300 | PASSENGER SIDE WINDSHIELD WIPER ARM -Not for GD- | 1 |
| 17 | 65849500 | PASSENGER SIDE WINDSHIELD WIPER ARM -Valid for GD- | 1 |
| 18 | 65409400 | PASSENGER SIDE WIPER BRUSH | 1 |
| 19 | 65191000 | JET FOR WINDOW WASHING | 2 |
| 20 | 65362600 | RUBBER HOSE | 1 |
| 21 | 61648100 | NONRETURN VALVE | 1 |
| 22 | 65362500 | RUBBER HOSE | 1 |
| 23 | 65362400 | RUBBER HOSE FROM PUMP TO VALVE | 1 |
| 24 | 65358700 | PER PUMP | 1 |
| 25 | 67895900 | NDSHIELD WIPER AND HEADLIGHT WASHER CONTAINER | 1 |
| 26 | 65775100 | GASKET | 1 |
| 27 | 10902414 | SCREW | 4 |
| 28 | 10615474 | WASHER -Not as spare part- -Replaced by 12601274- | 4 |
| 28 | 12601274 | WASHER | 4 |
| 29 | 10523424 | WASHER | 4 |
| 30 | 65581700 | GASKET | 1 |
| 31 | 65581800 | PIPE | 1 |
| 32 | 65374000 | PLUG | 1 |
| 33 | 62940900 | SCREW | 2 |
| 34 | 10396280 | GASKET | 2 |
| 35 | 65759400 | FIXING CLIP | 2 |
| 36 | 199231 | COMPLETE R.H. HORN | 1 |
| 37 | 199232 | COMPLETE L.H. HORN | 1 |
| 38 | 10902324 | SCREW | 2 |
| 39 | 12601274 | WASHER | 2 |
| 40 | 65758700 | LIQUID SENSOR | 1 |
| 41 | 65546300 | BEVEL WASHER | 2 |
| 42 | 12646601 | WASHER | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
