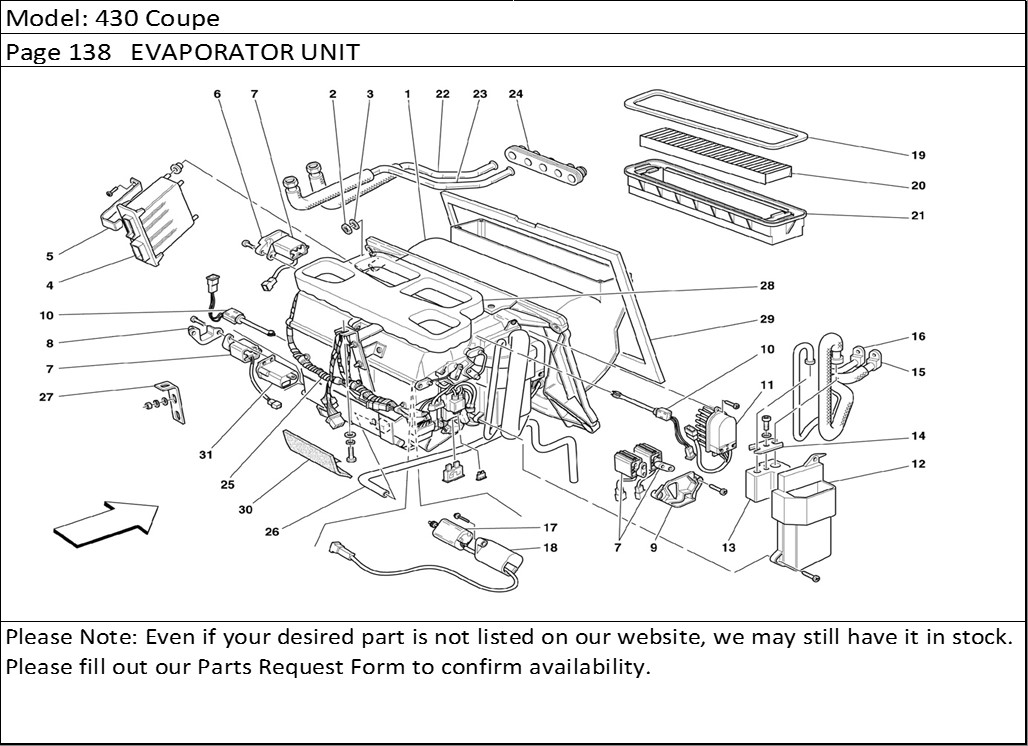

430 Coupe Page 138 EVAPORATOR UNIT
Product Description
430 Coupe Page 138 EVAPORATOR UNIT
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 68070600 | COMPLETE EVAPORATOR SET -Not for GD- | 1 |
| 1 | 68070700 | COMPLETE EVAPORATOR SET -Valid for GD- | 1 |
| 2 | 147985 | NUT | 4 |
| 3 | 12646724 | WASHER | 4 |
| 4 | 204068 | A.C. ELECTRONIC CONTROL STATION | 1 |
| 5 | 66159300 | ECU FIXING BRACKET | 1 |
| 6 | 66207600 | FRONT DOOR ACTUATOR FIXING | 1 |
| 7 | 66207300 | BULHER ACTUATOR | 4 |
| 8 | 66207400 | FRONT FLOOR ACTUATOR FIXING | 1 |
| 9 | 66159100 | DEFROST DOOR ACTUATOR FIXING | 1 |
| 10 | 68154200 | AIR TEMPERATURE SENSOR | 2 |
| 11 | 64280200 | ELECTRO-BLOWER REGULATOR | 1 |
| 12 | 66158300 | EVAPORATOR BATTERY COVER | 1 |
| 13 | 63960100 | EXPANSION VALVE | 1 |
| 14 | 64281500 | FLANGE | 1 |
| 15 | 66157900 | PIPE FROM A/C GROUP | 1 |
| 16 | 65229400 | PIPE FROM EVAPORATOR | 1 |
| 17 | 64280900 | RECYCLE ELECTRIC MOTOR | 1 |
| 18 | 66159000 | ACTUATOR SUPPORT | 1 |
| 19 | 65258600 | GASKET | 1 |
| 20 | 65384300 | ANTI-POLLEN FILTER | 1 |
| 21 | 65629700 | A/C GROUP MOBILE DUCTING | 1 |
| 22 | 65229100 | TER ENTRY PIPE -Not for GD- | 1 |
| 22 | 66218700 | TER ENTRY PIPE -Valid for GD- | 1 |
| 23 | 65229200 | TER OUTLET PIPE -Not for GD- | 1 |
| 23 | 66218800 | TER OUTLET PIPE -Valid for GD- | 1 |
| 24 | 65374100 | PIPESGROMMET | 1 |
| 25 | 65229900 | A/C GROUP ELECTRIC SYSTEM | 1 |
| 26 | 65230200 | SLEEVE FOR CONDENSATE VENT | 1 |
| 27 | 66159200 | EVAPORATOR FIXING BRACKET | 1 |
| 28 | 65930900 | EVAPORATOR UPPER GASKET | 1 |
| 29 | 66207500 | A/C GROUP SET OF GASKETS | 1 |
| 30 | 159147 | RUBBER THICKNESS | 1 |
| 31 | 67014700 | ACTUATOR SUPPORT | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
