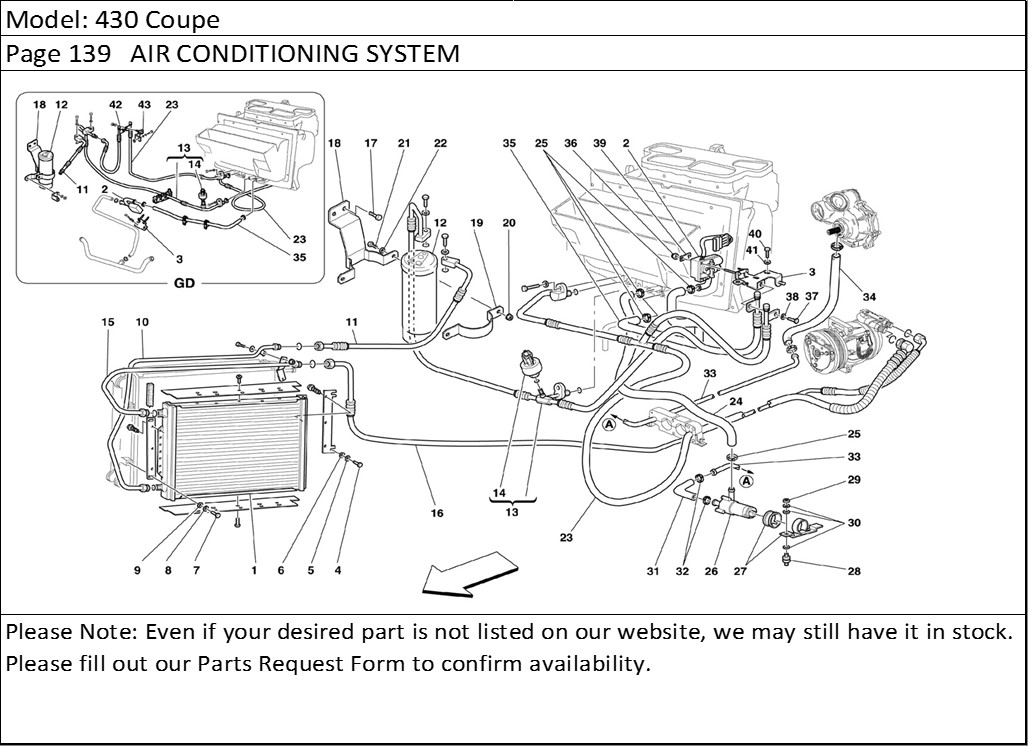

430 Coupe Page 139 AIR CONDITIONING SYSTEM
Product Description
430 Coupe Page 139 AIR CONDITIONING SYSTEM
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 200340 | A.C. CONDENSER | 1 |
| 2 | 65066400 | TGK VALVE | 1 |
| 3 | 66150300 | BRACKET FOR VALVE FIXING -Not for GD- | 1 |
| 3 | 68643100 | BRACKET FOR VALVE FIXING -Valid for GD- | 1 |
| 4 | 10902124 | SCREW | 3 |
| 5 | 12601274 | WASHER | 3 |
| 6 | 14496424 | WASHER | 3 |
| 7 | 60909500 | SCREW | 1 |
| 8 | 12601274 | WASHER | 1 |
| 9 | 12643724 | WASHER | 1 |
| 10 | 80668700 | DELIVERY METAL PIPE | 1 |
| 11 | 67750800 | HOSE FROM CONDENSER TO FILTER | 1 |
| 12 | 67085100 | DEHYDRATING FILTER | 1 |
| 13 | 67750900 | PIPE FROM FILTER TO A.C. SYSTEM -Not for GD- | 1 |
| 13 | 68640900 | PIPE FROM FILTER TO A.C. SYSTEM -Valid for GD- | 1 |
| 14 | 65628200 | PRESSOSTAT | 1 |
| 15 | 67750500 | INLET METAL PIPE | 1 |
| 16 | 67750400 | UNDERFLOOR PIPE | 1 |
| 17 | 10902224 | SCREW | 2 |
| 18 | 67942200 | BRACKET | 1 |
| 19 | 67942200 | RING | 1 |
| 20 | 14098700 | NUT | 2 |
| 21 | 68721400 | SCREW | 2 |
| 22 | 12644424 | WASHER | 2 |
| 23 | 68640800 | PIPE FROM A.C. SYSTEM TO COMPRESSOR -Valid for GD- | 1 |
| 23 | 67750300 | PIPE FROM A.C. SYSTEM TO COMPRESSOR -Not for GD- | 1 |
| 24 | 69741700 | PIPE FROM MINIMUM PUMP TO A.C. SYSTEM -Not for GD- -Not as spare part- -Replaced by 69741700- | 1 |
| 24 | 69741700 | PIPE FROM MINIMUM PUMP TO A.C. SYSTEM -Not for GD- | 1 |
| 24 | 68641000 | PIPE FROM MINIMUM PUMP TO A.C. SYSTEM -Valid for GD- | 1 |
| 25 | 13000390 | SCREW COLLAR | 4 |
| 26 | 65460300 | MINIMUM PUMP | 1 |
| 27 | 68018300 | COMPLETE BRACKET | 1 |
| 28 | 195373 | PAD | 2 |
| 29 | 15896214 | NUT | 2 |
| 30 | 10571570 | WASHER | 2 |
| 31 | 65460700 | PIPE FROM UNDERFLOOR PIPE TO MINIMUM PUMP | 1 |
| 32 | 13000490 | SCREW COLLAR | 2 |
| 33 | 68393000 | TER PIPE UNDERFLOOR | 1 |
| 34 | 68237600 | PIPE FROM WATER PUMP TO UNDRFLOOR PIPE | 1 |
| 35 | 65231700 | PIPE FROM A.C. HEATER TO TGK VALVE -Not for GD- | 1 |
| 35 | 68641100 | PIPE FROM A.C. HEATER TO TGK VALVE -Valid for GD- | 1 |
| 36 | 62790300 | NUT | 2 |
| 37 | 10977524 | SCREW | 1 |
| 38 | 11188079 | WASHER | 1 |
| 39 | 65929400 | SMALL PLATE | 1 |
| 40 | 10902224 | SCREW | 2 |
| 41 | 11193274 | WASHER | 2 |
| 42 | 68863200 | PIPE CONNECTING FILTER A.C. LOADING -Valid for GD- | 1 |
| 43 | 212340 | BRACKET -Valid for GD- | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available |
