Home > Page 11 TIMING (CONTROLS)

Page 11 TIMING (CONTROLS)

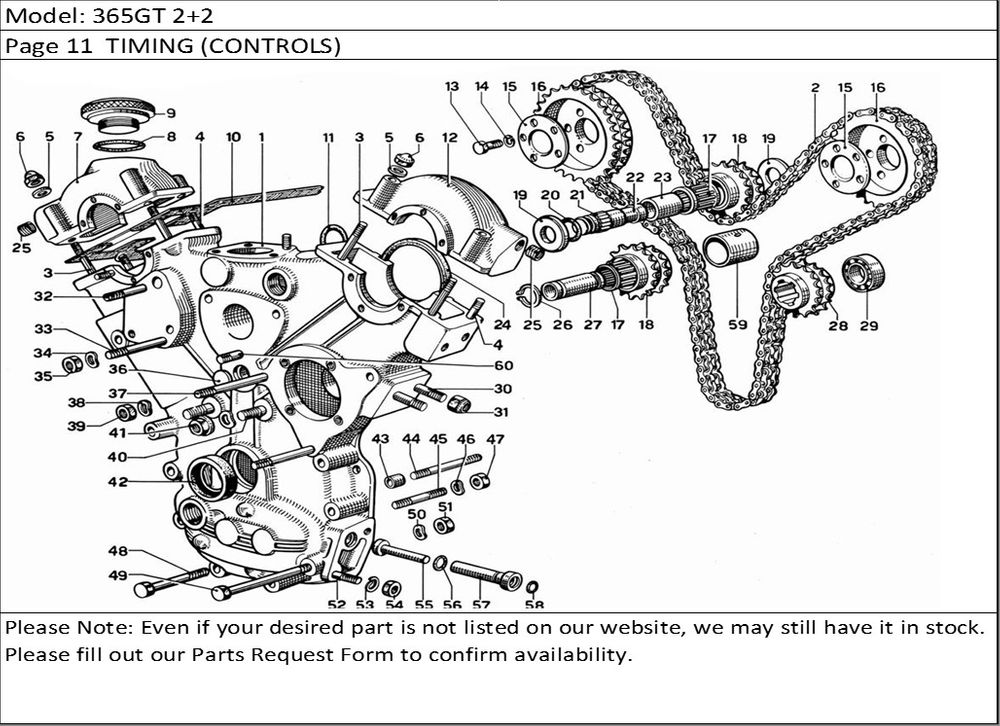

Click On Diagram To Enlarge

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts Diagram	Part #	Description	Quantity Used
1	220199	Scatola distribuzione	1
2	220070	Timming Chain	1
3	P1	Stud	4
4	P1	Stud	4
5	REO 6	Washer	8
6	106 MA	Nut	8
7	220026	Cappello distribuzione D	1
8	144	Oil Seal	1
9	220028	Tappo introduzione olio	1
10	160479	GASKET	2
11	4100	Seal	2
12	22993	Cappello distribuzione S	1
13	92266	Bolt	5
14	REG 8	Washer	5
15	22575	Flangia ritegno ruota	1
16	220069	Ruota sullalbero a camme	2
17	K 19x24x25	Gabbia a rulli	2
18	220080	Ingranaggio galoppino	2
19	22718	Spacer	2
20	112	Sealing Ring	1
21	BN. 15 x 1	Ring	1
22	22716	Pivot	1
23	22717	Bussola per galoppino	1
24	22108	Rubber Gasket	2
25	10x1,25x10	Bush	2
26	AAe19	Seeger Ring	2
27	22712	Pivot	1
28	220068	Ingranaggio pompa acqua	1
29	93457	Cusicnetto a sfere	1
30	95170	Stud	2
31	212 M B	Nut	2
32	P2	Stud	1
33	P2	Stud	2
34	REO 8	Washer	3
35	2DBx1UN155	Nut	3
36	Te 18	Expansion Plug	1
37	P2	Stud	2
38	REO B	Washer	2
39	2DBx1UNISS	Nut	2
40	94849	Stud	2
41	92399	Nut	2
42	4056	Sealing Ring	1
43	BGC1	Grano centraggio pompa olio	2
44	95291	Stud	2
45	P2	Stud	2
46	REO 8	Washer	4
47	2138x1UN15	Nut	4
48	95212	Bolt	3
49	95213	Bolt	3
50	REO B	Washer	6
51	I2D8x1UNI	Nut	6
52	P2	THREADED STUD	2
53	REO 8	Washer	2
54	2D8 x 1 UN	Nut	2
55	34380	Puntalino	1
56	2037	Seal	1
57	34371	Bush	1
58	2031	Seal	1
59	220079	Bush	2
60	P2	Stud	1
14	65520000	FRONT FIXING BRACKET	4
15	10902024	SCREW	8
16	12640677	WASHER	8
17	140594	REAR SIDE-MARKER LAMP -Valid for USA and CDN	2
17	147563	FRONT SIDE-MARKER LAMP -Valid for USA and CDN	2
18	65164700	HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer	1
19	65511700	GASKET -Valid for cars with headlights washer	1
20	65363000	HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer	1
21	65380000	HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer	2
22	65380100	L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
22	65667200	R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
23	15517201	SCREW -Valid for cars with headlights washer	6
24	65896600	R.H. SUPPORT -Valid for cars with headlights washer	1
24	65896700	L.H. SUPPORT -Valid for cars with headlights washer	1
25	65896400	R.H. PLUG -Valid for cars with headlights washer	1
25	65896500	L.H. PLUG -Valid for cars with headlights washer	1
26	10441590	BRACKET -Valid for cars with headlights washer	4
27	14296191	RIVET -Valid for cars with headlights washer	4
28	65161700	L. H. FRONT SIDE LIGHT SUPPORT	1
28	65161500	R. H. FRONT SIDE LIGHT SUPPORT	1
29	10902424	SCREW	2
30	116413	WASHER	2
31	63234200	SCREW	2
32	12646801	WASHER	2
33	185378	CLIP	3
34	183672	BULB -For gas lamps	2
35	65705600	L.H. BRACKET -For gas lamps	1
35	65705500	R.H. BRACKET -For gas lamps	1
36	65705400	BRACKET -For gas lamps	2
37	185554	FRONT LIGHT CONTROL STATION -For gas lamps	2
38	155751	CLIP -Valid for USA and CDN	4
39	14084111	NUT -Valid for USA and CDN	8
40	12638124	WASHER -Valid for USA and CDN	8
41	66120200	INSULATION	1
42	14190190	NUT WITH CAGE	2
43	64529600	SPACER	8
4	66325702	Description not available
4	67259102	Description not available
4	66325725	Description not available
4	67259127	Description not available
