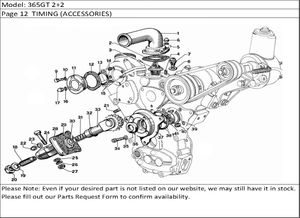

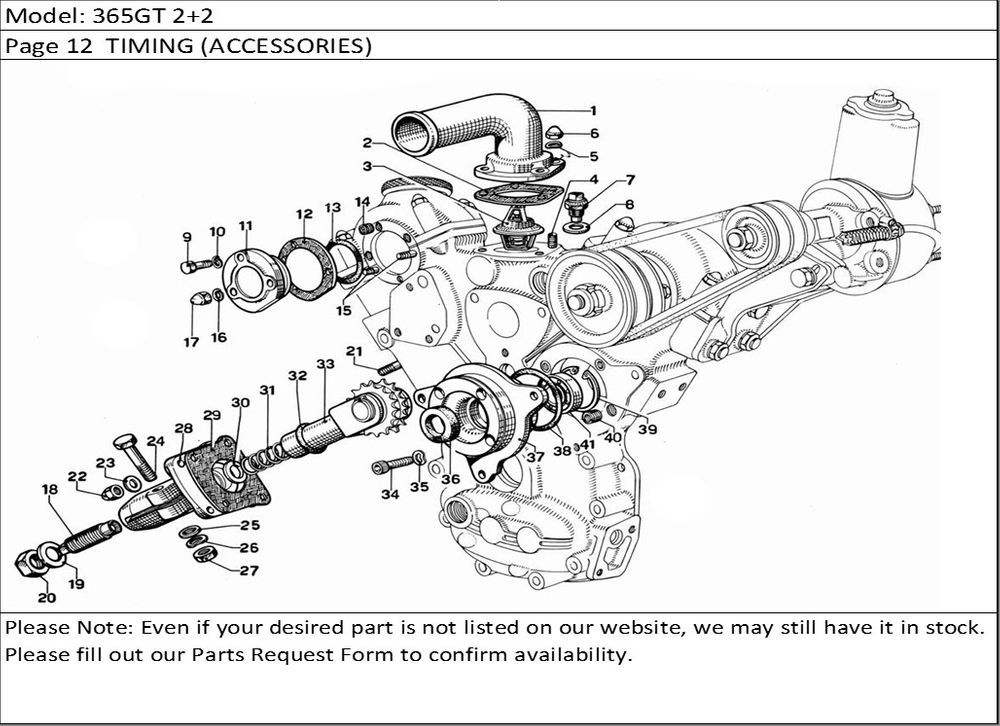

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 220037 | Union | 1 |
| 2 | 22765 | GASKET | 1 |
| 3 | 14640 (954 | Termostato (apertura a 68?c) | 1 |
| 4 | P1 | THREADED STUD | 4 |
| 5 | REO 6 | Washer | 4 |
| 6 | 106 MA | Nut | 4 |
| 7 | 65.9637.99 | Termistore | 1 |
| 8 | 94877 | GASKET | 1 |
| 9 | 6x16UNI573 | Bolt | 1 |
| 10 | REO 6 | Washer | 1 |
| 11 | 220029 | Cover | 1 |
| 12 | 220036 | GASKET | 1 |
| 13 | 3168 | Oil Seal | 2 |
| 14 | 6x100x9 | Bush | 3 |
| 15 | P1 | Stud | 2 |
| 16 | REO 6 | Washer | 2 |
| 17 | 106 MA | Nut | 2 |
| 18 | 220066 | Assieme tendicatena | 1 |
| 18 | 22489 | Threaded Pivot | 1 |
| 19 | 94179 | Washer | 1 |
| 20 | 1 D 16UNI2 | Nut | 1 |
| 21 | P5 | THREADED STUD | 4 |
| 22 | 106 MA | Nut | 4 |
| 23 | REO6 | Washer | 4 |
| 24 | 10x45UNI57 | Bolt | 1 |
| 25 | 10 R 2 | Washer | 1 |
| 26 | REG. 10 | Washer | 1 |
| 27 | 2 D 10UNI5 | Nut | 1 |
| 28 | 22488 | Support | 1 |
| 29 | 22156 | GASKET | 1 |
| 30 | 22145 | Washer | 1 |
| 31 | 22258 | Spring | 1 |
| 32 | 4125 | Sealing Ring | 1 |
| 33 | 22989 | Corpo tenditore | 1 |
| 34 | VTCE625 A | Screw | 4 |
| 35 | 6R3 | Washer | 4 |
| 36 | 1927/6 | Sealing Ring | 1 |
| 37 | 26680 | Flangia sulla distribuzione | 1 |
| 38 | 156 | Sealing Ring | 1 |
| 39 | J 37 x 1,5 | Seeger Ring | 1 |
| 40 | 6 x 100 x | Boccole per pompa acqua | 4 |
| 41 | 93457 | Cuscinetto a sfere | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available | |
