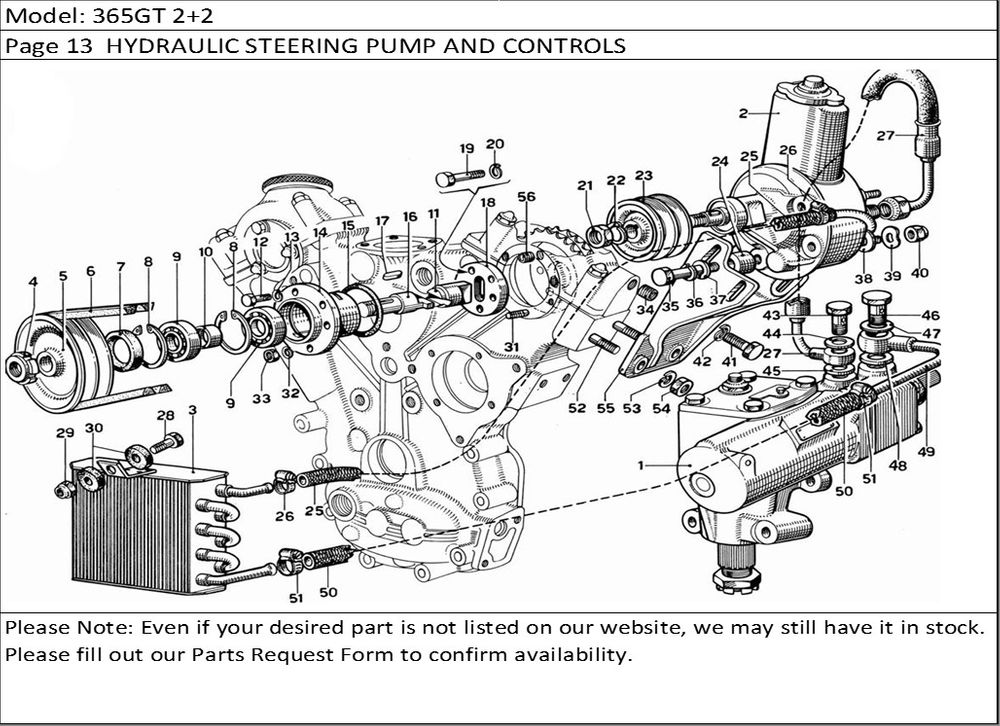

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 8052.975.1 | Scatola guida idraulica R. 15.7:1 | 1 |
| 2 | 740220 76 | Pompa idraulica per coman do guida | 1 |
| 3 | 740234 | Radiatore olio per per guida | 1 |
| 4 | GU K70/17/ | Locking Ring Nut | 1 |
| 5 | 220057 | Puleggia comando pompa | 1 |
| 6 | 95840036 | Cinghia comando pompa continental9,5x8,25x700 | 4 |
| 7 | 254216 | Sealing Ring | 1 |
| 8 | AA 421 | Seeger Ring | 2 |
| 9 | EL 20 | Cuscinetto a sfere | 2 |
| 10 | 22996 | Distanziale interno | 1 |
| 11 | 220088 | Corpo di trascinamento | 1 |
| 12 | 6x18UNI187 | Bolt | 3 |
| 13 | 6R4 | Washer | 3 |
| 14 | 220030 | Bussola porta cuscinetto | 1 |
| 15 | 3187 | Seal | 1 |
| 16 | 220087 | Albero per puleggia comando | 1 |
| 17 | LI | Linguetta sullalbero | 1 |
| 18 | 22999 | Flangia presa moto | 1 |
| 19 | 92669 | Bolt | 5 |
| 20 | 8R4 | Washer | 5 |
| 21 | 95139 | Nut | 1 |
| 22 | 14R4 | Washer | 1 |
| 23 | 220056 | Puleggia sulla pompa | 1 |
| 24 | 22997 | Distanziale per pompa | 1 |
| 25 | V.D.N.10 F | Tubo collegamento pompa al radiatore mt. 1,20 | 1 |
| 26 | 95022 | Fascetta stringitubo | 2 |
| 27 | 740298 FL | Tubo mondata olio dalla pompa alla scatola guida | 1 |
| 28 | 8 x 30UNI | Bolt | 3 |
| 29 | 108 MB | Nut | 3 |
| 30 | 83906 | Tampone per radiatore | 6 |
| 31 | PI | Stud | 3 |
| 32 | - | Washer | 3 |
| 33 | 1 D 6 UNI | Nut | 3 |
| 34 | 10 x 1,25 | Bush | 2 |
| 35 | 3/8"16UNC | Bolt | 2 |
| 36 | 10R4 | Washer | 2 |
| 37 | 10R1 | Washer | 2 |
| 38 | 10R1 | Washer | 2 |
| 39 | 10R3 | Washer | 1 |
| 40 | 318" BS W | Nut | 1 |
| 41 | 10x22UNI 5 | Bolt | 1 |
| 42 | REG 10 | Washer | 1 |
| 43 | 95038 | UNION | 1 |
| 44 | 95041 | GASKET | 1 |
| 45 | 95108 | Gasket or Seal | 1 |
| 46 | 95035 | UNION | 1 |
| 47 | 94877 | GASKET | 1 |
| 48 | 95109 | Gasket or Seal | 1 |
| 49 | 95039 | UNION | 1 |
| 50 | V. DN 13 F | Tubo dalla scatola guida al radiatore mt. 1.20 | 1 |
| 51 | 95023 | Fascetta stringitubo | 2 |
| 52 | 95230 | Pr?gioniero per supporto | 2 |
| 53 | REG 10 | Washer | 2 |
| 54 | 10x1.25UNI | Nut | 2 |
| 55 | 22994 | Support | 1 |
| 56 | 6 X 100 X | Bush | 3 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available | |
