Home > Page 14 OIL PUMP AND FILTERS

Page 14 OIL PUMP AND FILTERS

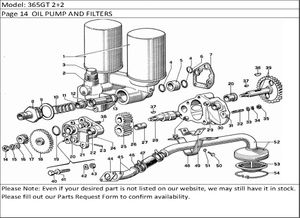

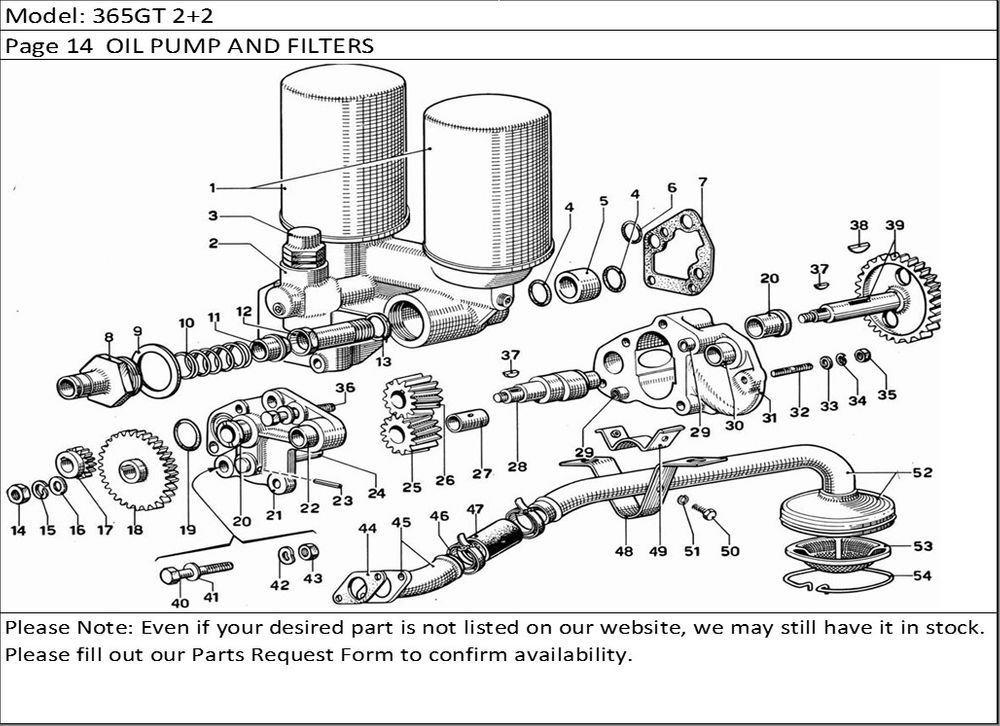

Click On Diagram To Enlarge

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts Diagram	Part #	Description	Quantity Used
1	100325	Oil filter, valvola by pass-	2
2	240224	Base per filtro	1
3	37024000	Valvola regolazione pressio ne olio	1
4	3081	Seal	2
5	240129	Spacer	1
6	2081	Seal	1
7	240131	Gasket or Seal	1
8	22919	Cover	1
9	94983	GASKET	1
10	22915	Spring	1
11	22918	Valvola by pass	1
12	220021	Colonnetta	1
13	94702	GASKET	1
14	1 D 8UNI21	Nut	1
15	8R4	Washer	1
16	8R2	Washer	1
17	34405	DRIVING GEAR	1
18	34406	DRIVEN GEAR	1
19	132	Seal	1
20	240286	Bussola alberino comando	2
21	240285	Cover	1
22	34368	Bussola per alberino	1
23	2,5 x 20	Pin	1
24	240291	Pivot	1
25	240293	DRIVEN GEAR	1
26	240290	DRIVING GEAR	1
27	240292	Bussola per ingranaggio	1
28	34407	Alberino con camma	1
29	8 GC 1	Centering Dowel	2
30	34367	Bussola per alberino	1
31	240284	Corpo pompa	1
32	P 1	THREADED STUD	2
33	8 R 2	Washer	2
34	REO8	Washer	2
35	8x1UNI5588	Nut	2
36	95297	Bolt	1
37	L 2	Key	2
38	4 x 7,5	Key	1
39	240379	Complessivo inamovibile in granaggio condotto pom pa olio	1
40	8x55UNI573	Bolt	1
41	8 R 2	Washer	2
42	REO8	Washer	2
43	8x1UNI5588	Nut	2
44	240295	GASKET	1
45	240297	Assieme tubo entrata olio	1
46	18270	Jubilee Clip	2
47	240299	SLEEVE	1
48	240300	Bracket	2
49	240301	Cavallotto	2
50	5x8UNI5739	Bolt	4
51	REG5	Washer	4
52	240296	Assieme tubo aspirazione olio	1
53	240387	Assieme filtro olio	1
54	24124	Seeger Ring	1
14	65520000	FRONT FIXING BRACKET	4
15	10902024	SCREW	8
16	12640677	WASHER	8
17	140594	REAR SIDE-MARKER LAMP -Valid for USA and CDN	2
17	147563	FRONT SIDE-MARKER LAMP -Valid for USA and CDN	2
18	65164700	HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer	1
19	65511700	GASKET -Valid for cars with headlights washer	1
20	65363000	HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer	1
21	65380000	HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer	2
22	65380100	L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
22	65667200	R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
23	15517201	SCREW -Valid for cars with headlights washer	6
24	65896600	R.H. SUPPORT -Valid for cars with headlights washer	1
24	65896700	L.H. SUPPORT -Valid for cars with headlights washer	1
25	65896400	R.H. PLUG -Valid for cars with headlights washer	1
25	65896500	L.H. PLUG -Valid for cars with headlights washer	1
26	10441590	BRACKET -Valid for cars with headlights washer	4
27	14296191	RIVET -Valid for cars with headlights washer	4
28	65161700	L. H. FRONT SIDE LIGHT SUPPORT	1
28	65161500	R. H. FRONT SIDE LIGHT SUPPORT	1
29	10902424	SCREW	2
30	116413	WASHER	2
31	63234200	SCREW	2
32	12646801	WASHER	2
33	185378	CLIP	3
34	183672	BULB -For gas lamps	2
35	65705600	L.H. BRACKET -For gas lamps	1
35	65705500	R.H. BRACKET -For gas lamps	1
36	65705400	BRACKET -For gas lamps	2
37	185554	FRONT LIGHT CONTROL STATION -For gas lamps	2
38	155751	CLIP -Valid for USA and CDN	4
39	14084111	NUT -Valid for USA and CDN	8
40	12638124	WASHER -Valid for USA and CDN	8
41	66120200	INSULATION	1
42	14190190	NUT WITH CAGE	2
43	64529600	SPACER	8
4	66325702	Description not available
4	67259102	Description not available
4	66325725	Description not available
4	67259127	Description not available
