Page 16 DISTRIBUTORS AND CONTROLS

Click On Diagram To Enlarge

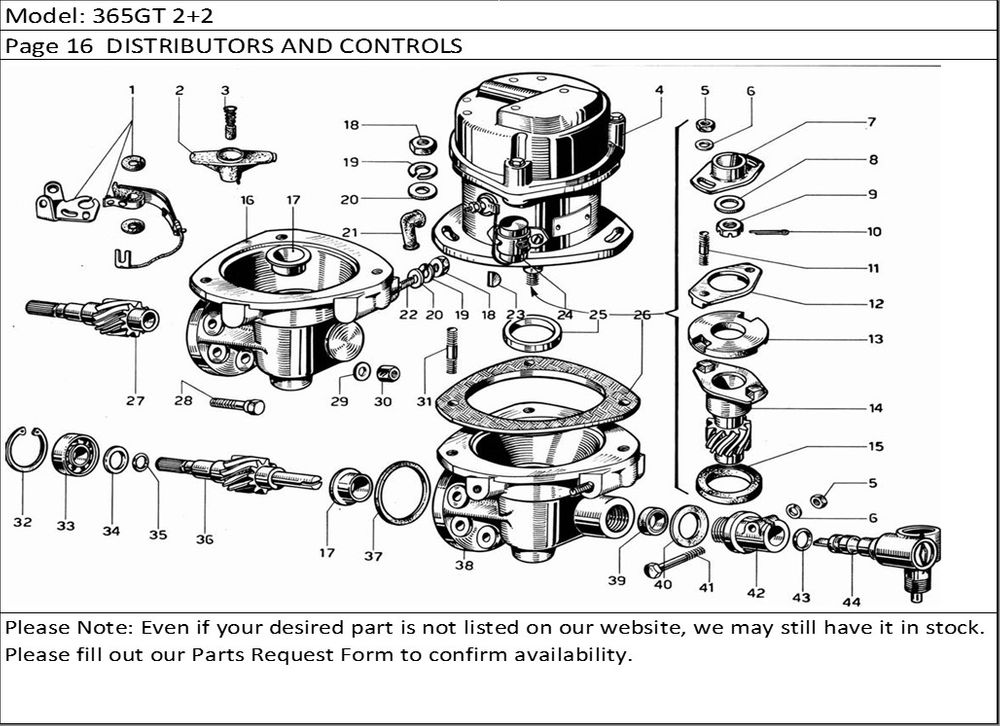

365GT 2+2 Page 16 DISTRIBUTORS AND CONTROLS

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts Diagram	Part #	Description	Quantity Used
-	29126/S 85	Distributore di accensione	2
1	H. 71.0071	Gruppo ruttore	2
2	703.880.01	Spazzola distributrice	2
3	91.006.01	Carboncino con molla	2
4	703.884.01	DISTRIBUTOR CAPUse 144637 on Exhaustion	2
4	144637	Distributor CapUse on Exhaustion of 703.884.01	2
5	6x1UNI5588	Nut	5
6	REG6	Washer	5
7	30823	Flangia sp;nterogeno	2
8	10R1	Washer	2
9	93322	Nut	2
10	C1	Split Pin	2
11	P1	Stud	4
12	30451	Flangia intermedia	2
13	30452	Elemento centrale giunto	2
14	30836	DRIVEN GEAR	2
15	2741/10	Sealing Ring	2
16	29140	Support	1
17	28968	Bush	4
18	8x1UNI5588	Nut	10
19	REGB	Washer	10
20	93798	Washer	10
21	28919	Copri morsetto	6
22	P2	Stud	4
23	9007171	KEY	2
24	CE 1 E	Condensor	2
25	28970	Bush	2
26	16410	GASKET	2
27	30586	Ingranaggio sinistro	1
28	94834	Bolt	4
29	REG 6	Washer	8
30	8x1UNI5588	Nut	8
31	P2	THREADED STUD	6
32	93145	Seeger Ring	2
33	93144	Cuscinetto a sfere	2
34	30588	Washer	2
35	108	Seal	2
36	30609	Ingranaggio destro	1
37	153	Seal	2
38	29139	Support	1
39	1222/7	Seal	1
40	94648	GASKET	1
41	95175	Bolt	1
42	30736	Corpo presa contagiri	1
43	121	Seal	1
44	50.0530.99	Rinvio ad angolo per conta giri	1
14	65520000	FRONT FIXING BRACKET	4
15	10902024	SCREW	8
16	12640677	WASHER	8
17	140594	REAR SIDE-MARKER LAMP -Valid for USA and CDN	2
17	147563	FRONT SIDE-MARKER LAMP -Valid for USA and CDN	2
18	65164700	HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer	1
19	65511700	GASKET -Valid for cars with headlights washer	1
20	65363000	HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer	1
21	65380000	HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer	2
22	65380100	L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
22	65667200	R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
23	15517201	SCREW -Valid for cars with headlights washer	6
24	65896600	R.H. SUPPORT -Valid for cars with headlights washer	1
24	65896700	L.H. SUPPORT -Valid for cars with headlights washer	1
25	65896400	R.H. PLUG -Valid for cars with headlights washer	1
25	65896500	L.H. PLUG -Valid for cars with headlights washer	1
26	10441590	BRACKET -Valid for cars with headlights washer	4
27	14296191	RIVET -Valid for cars with headlights washer	4
28	65161700	L. H. FRONT SIDE LIGHT SUPPORT	1
28	65161500	R. H. FRONT SIDE LIGHT SUPPORT	1
29	10902424	SCREW	2
30	116413	WASHER	2
31	63234200	SCREW	2
32	12646801	WASHER	2
33	185378	CLIP	3
34	183672	BULB -For gas lamps	2
35	65705600	L.H. BRACKET -For gas lamps	1
35	65705500	R.H. BRACKET -For gas lamps	1
36	65705400	BRACKET -For gas lamps	2
37	185554	FRONT LIGHT CONTROL STATION -For gas lamps	2
38	155751	CLIP -Valid for USA and CDN	4
39	14084111	NUT -Valid for USA and CDN	8
40	12638124	WASHER -Valid for USA and CDN	8
41	66120200	INSULATION	1
42	14190190	NUT WITH CAGE	2
43	64529600	SPACER	8
4	66325702	Description not available
4	67259102	Description not available
4	66325725	Description not available
4	67259127	Description not available
