Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

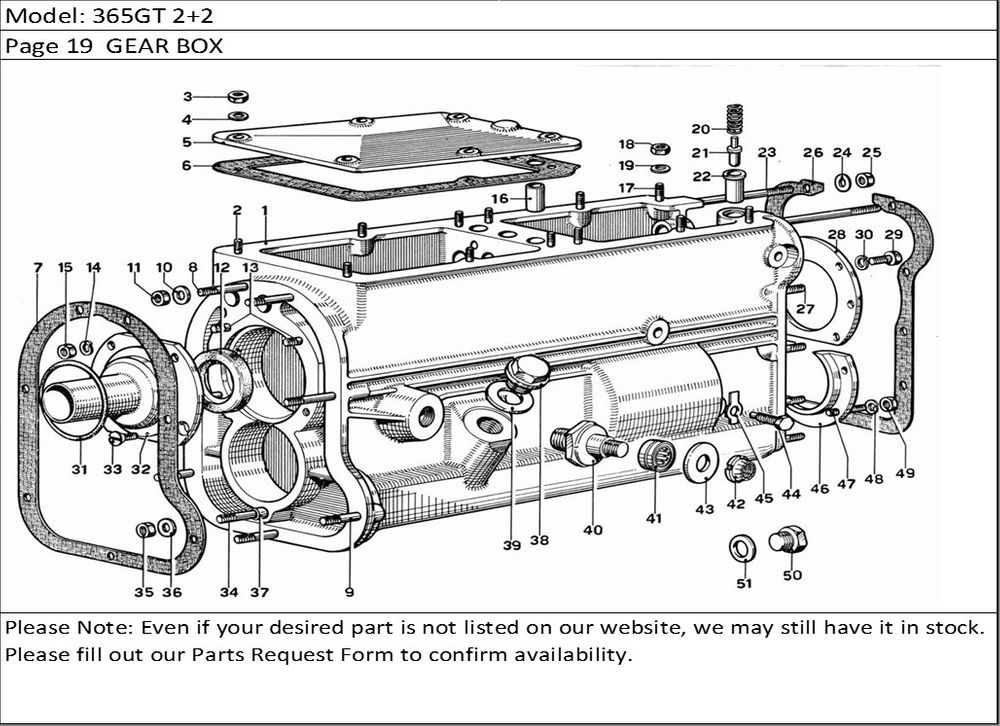

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 1212 | Complessivo combio | 1 |
| 1 | 521219 | Scatola cambio | 6 |
| 2 | P 1 | Stud | 6 |
| 3 | 6x1uryf55a | Nut | 6 |
| 4 | REO 6 | Washer | 1 |
| 5 | 520854 | Cover | 1 |
| 6 | 53047 | GASKET | 1 |
| 7 | 520622 | GASKET | 5 |
| 8 | P 2 | Stud | 2 |
| 9 | P 2 | Short Threaded Stud | 7 |
| 10 | REO 8 | Washer | 7 |
| 11 | 8x11UNI 55 | Nut | 1 |
| 12 | 3252/7 | Sealing Ring | 3 |
| 13 | P 2 | THREADED STUD | 3 |
| 14 | REG B | Washer | 3 |
| 15 | 8x1UNI 558 | Nut | 3 |
| 16 | 521255 | Bush | 6 |
| 17 | P 1 | Short Threaded Stud | 6 |
| 18 | 6x1UNI 558 | Nut | 6 |
| 19 | REO 6 | Washer | 1 |
| 20 | 53684 | Spring | 1 |
| 21 | 520846 | Pivot | 1 |
| 22 | 520847 | Bush | 2 |
| 23 | 95012 | Long Threaded Stud | 10 |
| 24 | REO 8 | Washer | 10 |
| 25 | 8x11UNI 55 | Nut | 1 |
| 26 | 520808 | GASKET | 8 |
| 27 | P2 | Short Threaded Stud | 1 |
| 28 | 521220 | Copercho per cuscinetto | 6 |
| 29 | - | Bolt | 6 |
| 30 | REG6 | Washer | 1 |
| 31 | 167 | Sealing Ring | 1 |
| 32 | 521755 | Flangia con manicotto | 1 |
| 33 | 1 VR 8x15 | Screw | 1 |
| 34 | P2 | THREADED STUD | 1 |
| 35 | 8x1UNI 558 | Nut | 1 |
| 36 | REO 8 | Washer | 1 |
| 37 | SGC1 | Centering Dowel | 1 |
| 38 | 22TF1 | Plug | 1 |
| 39 | 22GR2 | GASKET | 1 |
| 40 | 500495 | Pivot | 1 |
| 41 | RNA4902 PP | Gabbia con rulli | 1 |
| 42 | 15 MC | Nut | 1 |
| 43 | 500496 | Washer | 1 |
| 44 | 521325 | Bolt | 1 |
| 45 | 92363 | PLATE | 1 |
| 46 | 521221 | Cover | 4 |
| 47 | P1 | THREADED STUD | 4 |
| 48 | REG6 | Washer | 4 |
| 49 | 6x1UNI5588 | Nut | 1 |
| 50 | - | Tappo scarico olio | 1 |
| 51 | - | GASKET | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available | |
