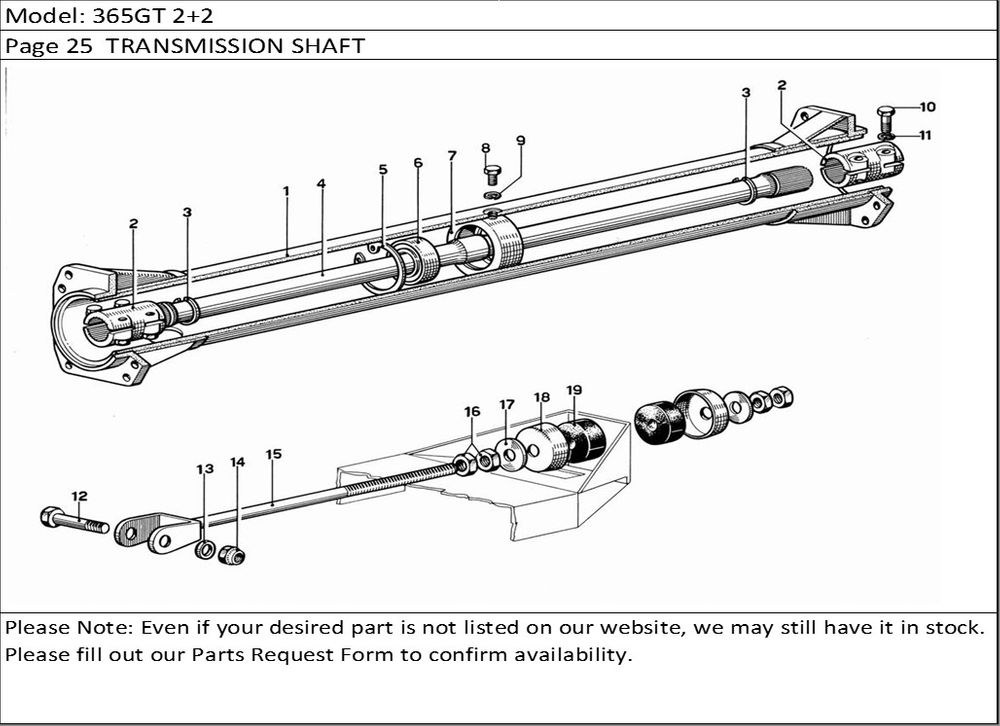

Page 25 TRANSMISSION SHAFT

365GT 2+2 Page 25  TRANSMISSION SHAFT


Click On Diagram To Enlarge


365GT 2+2 Page 25 TRANSMISSION SHAFT

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts DiagramPart #DescriptionQuantity Used
1560465Assieme tubo collegamento ponte al cambio1
2560461Manicotto per albero2
3560474Anelo di fermo2
4560466Albero di trasmissione1
5AAi 55Seeger Ring1
630L30Cuscinetto a sfere1
7560467Support1
895082Bolt3
9REG. 8Washer3
108x35UNI573Bolt8
11REG. 8Washer8
1212x65UNI 5Bolt1
1312 R 2Washer1
14112 MANut1
15560470Tie Rod1
16112x11.25Nut4
1794781Washer2
18520938Scodellino2
19560471Assieme tirante ancoraggio1
19520641Tampone2
1465520000FRONT FIXING BRACKET4
1510902024SCREW8
1612640677WASHER8
17140594REAR SIDE-MARKER LAMP -Valid for USA and CDN2
17147563FRONT SIDE-MARKER LAMP -Valid for USA and CDN2
1865164700HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer1
1965511700GASKET -Valid for cars with headlights washer1
2065363000HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer1
2165380000HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer2
2265380100L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer1
2265667200R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer1
2315517201SCREW -Valid for cars with headlights washer6
2465896600R.H. SUPPORT -Valid for cars with headlights washer1
2465896700L.H. SUPPORT -Valid for cars with headlights washer1
2565896400R.H. PLUG -Valid for cars with headlights washer1
2565896500L.H. PLUG -Valid for cars with headlights washer1
2610441590BRACKET -Valid for cars with headlights washer4
2714296191RIVET -Valid for cars with headlights washer4
2865161700L. H. FRONT SIDE LIGHT SUPPORT1
2865161500R. H. FRONT SIDE LIGHT SUPPORT1
2910902424SCREW2
30116413WASHER2
3163234200SCREW2
3212646801WASHER2
33185378CLIP3
34183672BULB -For gas lamps2
3565705600L.H. BRACKET -For gas lamps1
3565705500R.H. BRACKET -For gas lamps1
3665705400BRACKET -For gas lamps2
37185554FRONT LIGHT CONTROL STATION -For gas lamps2
38155751CLIP -Valid for USA and CDN4
3914084111NUT -Valid for USA and CDN8
4012638124WASHER -Valid for USA and CDN8
4166120200INSULATION1
4214190190NUT WITH CAGE2
4364529600SPACER8
466325702Description not available
467259102Description not available
466325725Description not available
467259127Description not available
