Home > Page 29 REAR SUSPENSION DAMPER AND SELFLEVELLING UNIT

Page 29 REAR SUSPENSION DAMPER AND SELFLEVELLING UNIT

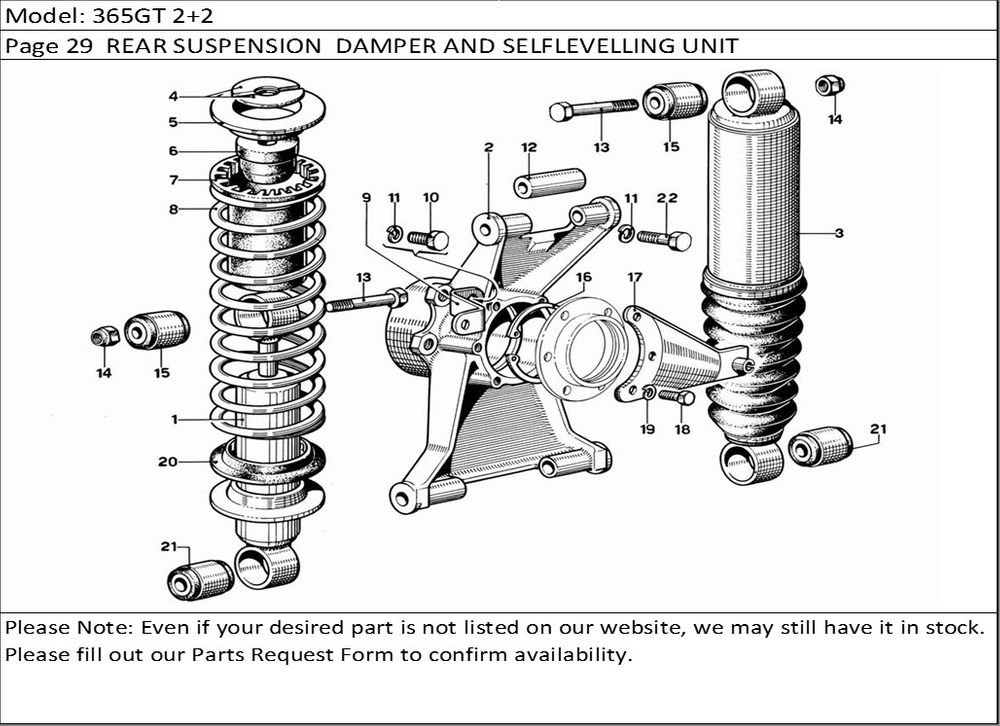

Click On Diagram To Enlarge

365GT 2+2 Page 29 REAR SUSPENSION DAMPER AND SELFLEVELLING UNIT

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts Diagram	Part #	Description	Quantity Used
1	601281 15	Ammortizzatore idraulico posteriore	2
2	601358	Portamozzo e leve	2
3	601413 44	Ammortizzatori idraulici autolivellsnti	2
4	640499	Semianelli	4
5	640535	Scodellino superiore	2
6	601240	Tampone ammortizzatore	2
7	600925	Distanziale superiore	2
8	601366	Spring	2
9	680459	Piastra attacco flessibile olio per freni posteriori .	2
10	8X20UNI574	Bolt	2
11	REG 8	Washer	2
12	601410	Spacer	2
13	12x70x1,25	Bolt	4
14	212x1,25	Nut	4
15	640429 89	Estendbloc per attacchi sup ammortizzatori	4
16	AA85I	Seeger Ring	2
17	680482	Bracket / Support	1
17	680483	Bracket / Support	1
18	8x20UNI 57	Bolt	12
19	REGS	Washer	12
20	640423	Distanziale per molla	4
21	601352	Estendbloc per attacchi inferiori ammortizzatori	2
22	95158	Bolt	4
14	65520000	FRONT FIXING BRACKET	4
15	10902024	SCREW	8
16	12640677	WASHER	8
17	140594	REAR SIDE-MARKER LAMP -Valid for USA and CDN	2
17	147563	FRONT SIDE-MARKER LAMP -Valid for USA and CDN	2
18	65164700	HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer	1
19	65511700	GASKET -Valid for cars with headlights washer	1
20	65363000	HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer	1
21	65380000	HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer	2
22	65380100	L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
22	65667200	R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
23	15517201	SCREW -Valid for cars with headlights washer	6
24	65896600	R.H. SUPPORT -Valid for cars with headlights washer	1
24	65896700	L.H. SUPPORT -Valid for cars with headlights washer	1
25	65896400	R.H. PLUG -Valid for cars with headlights washer	1
25	65896500	L.H. PLUG -Valid for cars with headlights washer	1
26	10441590	BRACKET -Valid for cars with headlights washer	4
27	14296191	RIVET -Valid for cars with headlights washer	4
28	65161700	L. H. FRONT SIDE LIGHT SUPPORT	1
28	65161500	R. H. FRONT SIDE LIGHT SUPPORT	1
29	10902424	SCREW	2
30	116413	WASHER	2
31	63234200	SCREW	2
32	12646801	WASHER	2
33	185378	CLIP	3
34	183672	BULB -For gas lamps	2
35	65705600	L.H. BRACKET -For gas lamps	1
35	65705500	R.H. BRACKET -For gas lamps	1
36	65705400	BRACKET -For gas lamps	2
37	185554	FRONT LIGHT CONTROL STATION -For gas lamps	2
38	155751	CLIP -Valid for USA and CDN	4
39	14084111	NUT -Valid for USA and CDN	8
40	12638124	WASHER -Valid for USA and CDN	8
41	66120200	INSULATION	1
42	14190190	NUT WITH CAGE	2
43	64529600	SPACER	8
4	66325702	Description not available
4	67259102	Description not available
4	66325725	Description not available
4	67259127	Description not available
