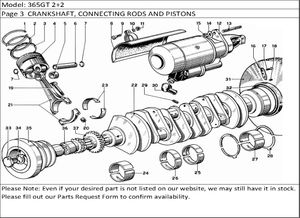

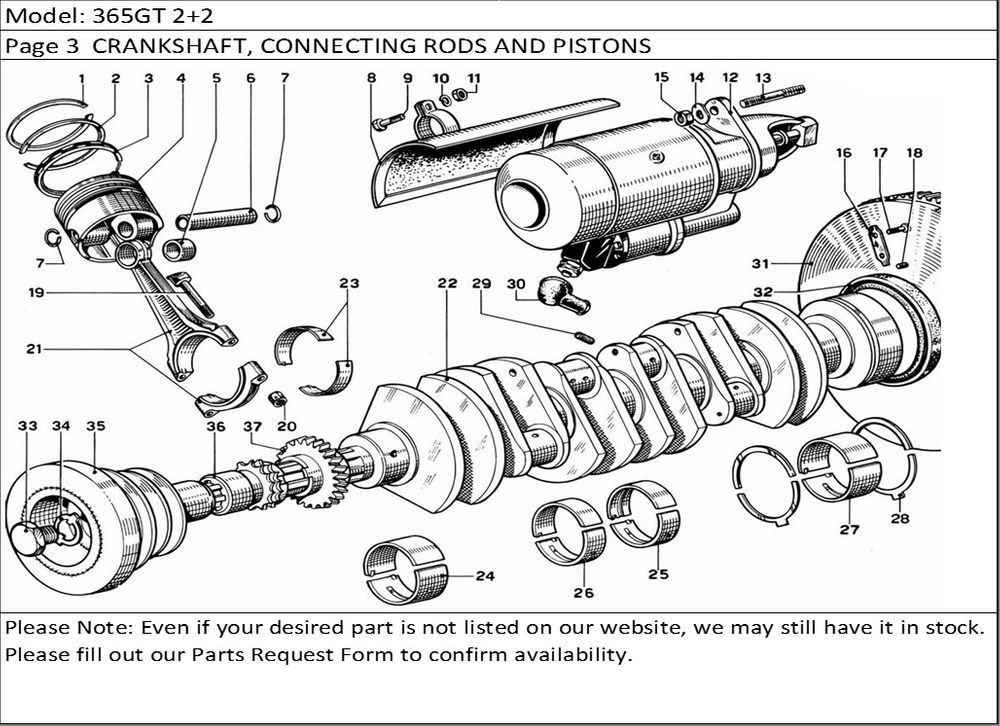

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | - | 1? maggiorazione | 12 |
| 1 | - | 2? maggiorazione | 12 |
| 1 | - | F normale | 12 |
| 1 | 33/1819/00 | Seal | 1 |
| 2 | 35169 | Sealing Ring | 12 |
| 2 | - | F normale | 12 |
| 2 | - | 2 maggiorazione | 12 |
| 2 | - | 1 maggiorazione | 12 |
| 3 | 336420 | Ring | 12 |
| 3 | - | F normale | 12 |
| 3 | - | 2 maggiorazione | 12 |
| 3 | - | 1 maggiorazione | 12 |
| 4 | 14940 | 1 maggiorazione (+ 0,15 mm.) - 14.14940/A | 1 |
| 4 | 14940 | 2 maggiorazione (+ 0,30 mm.) - 14.14940/B | 1 |
| 4 | 14940 | Stantuffo 0 normale | 12 |
| 5 | 14581 | Bush | 12 |
| 6 | 14854 | Spinotto per pistone | 12 |
| 7 | 14594 | Ring | 1 |
| 8 | 13219 | Deflettore con fascetta | 1 |
| 9 | 6 x 20 UNI | Bolt | 1 |
| 10 | REG6 | Washer | 1 |
| 11 | - | Nut | 1 |
| 12 | 13218 | Motorino di avviamento | 1 |
| 13 | 95203 | Stud | 1 |
| 14 | REO 12 | Washer | 2 |
| 15 | 95204 | Nut | 2 |
| 16 | 12124 | PLATE | 4 |
| 17 | 94851 | Bolt | 41 |
| 18 | 94129 | Centering Dowel | 1 |
| 19 | 14927 | Bolt | 24 |
| 20 | 14795 | Nut | 24 |
| 21 | 14985 | Complessivo biella con bulloni, dadi e boccola per spinotto . | 12 |
| 22 | 12513 | Crankshaft | 1 |
| 22 | 12513 | Undersize bearings - 1 Undersize | 1 |
| 22 | 12513 | Undersize bearings - 2 Undersize | 1 |
| 22 | 12513 | Undersize bearings - 3 Undersize | 1 |
| 23 | 14447 | Cuscinetto di biella | 12 |
| 23 | 14447 | Bearing Shells - 3 Undersize | 12 |
| 23 | 14447 | Bearing Shells - 2 Undersize | 12 |
| 23 | 14447 | Bearing Shells - 1 Undersize | 12 |
| 23 | 12513 | 3 Undersize | 12 |
| 23 | 12513 | 2 Undersize | 12 |
| 23 | 12513 | 1? Undersize | 12 |
| 24 | MC1820/4 | MAIN BEARINGS +30SOLD AS MAINS SET ONLY | 1 |
| 24 | 100602 | Cuscinetto anteriore - Semicuscinetto superiore | 1 |
| 24 | - | Cuscinetto anteriore - Semicuscinetto inferiore | 1 |
| 24 | 100035 | Cuscinetti di banco | 1 |
| 24 | - | Bearing Shells - 2 Undersize | 1 |
| 24 | - | Bearing Shells - 1 Undersize | 1 |
| 25 | MC1820/4 | MAIN BEARINGS +30SOLD AS MAINS SET ONLY | 2 |
| 25 | 100618 | MAIN BEARINGS +20 | 2 |
| 25 | 100618 | MAIN BEARINGS +10 | 2 |
| 25 | 100618 | Cuscinetto centrale - Se micuscinetto infer. e superiore | 2 |
| 26 | - | 2 Undersize | 4 |
| 26 | - | Bearing Shells - 1 Undersize | 4 |
| 26 | 100619 | Cuscinetti intermedi - Semicuscinetto inferiore | 4 |
| 26 | 100620 | Cuscinetti intermedi - Semicuscinetto superiore | 4 |
| 26 | MC1820/4 | MAIN BEARINGS +30SOLD AS MAINS SET ONLY | 4 |
| 27 | MC1820/4 | MAIN BEARINGS +30SOLD AS MAINS SET ONLY | 1 |
| 27 | 100037 | Cuscinetto posteriore - Semicuscinetto superiore | 1 |
| 27 | 100603 | Cuscinetto posteriore - Semicuscinetto inferiore | 1 |
| 27 | - | Bearing Shells - 2 Undersize | 1 |
| 27 | - | Bearing Shells - 1 Undersize | 1 |
| 28 | 10345 | 1 maggiorazione (mm. 0,076) (0,003) | 2 |
| 28 | 10345 | 2 maggiorazione (mm. 0,101) (0,004) | 2 |
| 28 | 10345 | 3 maggiorazione (mm. 0,203) (0,008) | 2 |
| 28 | 10345 | Ring | 2 |
| 29 | TF 4 | Tappo filettato | 12 |
| 30 | 13195 | Coprimorsetto | 1 |
| 31 | 12600 | Assieme volano motore | 1 |
| 32 | 100 x 120 | Seal | 1 |
| 33 | 12157 | Screw | 1 |
| 34 | 92987 | PLATE | 1 |
| 35 | 95840038 | Smorzatore torsionale con pulegge | 1 |
| 36 | 12560 | Pignone per catena | 1 |
| 37 | 12331 | Ingranaggio | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available | |
