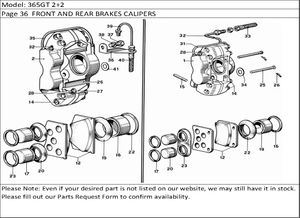

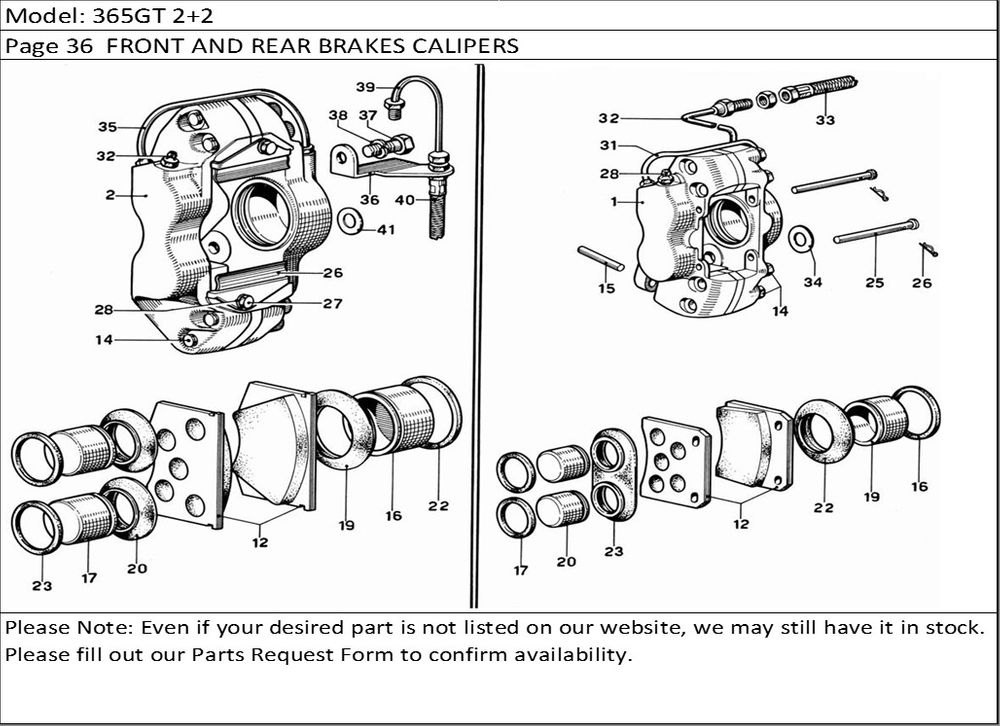

365GT 2+2 Page 36 FRONT AND REAR BRAKES CALIPERS

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts Diagram	Part #	Description	Quantity Used
1	64032235	Tipo 12/10/3 H. P. assieme caliper destro con freno a mano incorporato	4
1	64032236	Tipo 12/10/3 H. P. assieme caliper sinistro con freno a mano incorporato	4
2	64032234	Tipo 3C - assieme caliper D.	1
2	64032233	Tipo 3C - assieme caliper S.	1
12	64320574	Assieme pastiglie sinistre e destre	4
12	64326119	Assieme pastiglie	4
14	64110538	Bolt	8
14	64110420	Bolt	8
15	64320581	Pprnn npr IPVP	4
16	64326115	Sealing Ring	2
16	GB 48668	Pistone interno	2
17	64325111	Pistone esterno	4
17	64326149	Sealing Ring	4
19	6464325434	Pistone interne	2
19	GB 48669	Ring	2
20	64325069	Ring	2
20	64326017	Pistone esterno	4
22	64325028	Ring	2
22	64326148	Sealing Ring	2
23	64326018	Ring	2
23	64326112	Sealing Ring	4
25	64325038	Pivot	4
26	64325009	Fermaglio per perno	4
26	64320575	Spring	4
27	GB 48247	Screw	4
28	64140119	Washer	4
28	64470444	Screw	2
28	363400	Cappuccio copripolvere	2
31	64476997	Assieme tubo olio destro	1
31	64476996	Assieme tubo olio sinistro	1
32	64470444	Screw	2
32	680457	Tubetto dal flessibile al caliper posteriore destro esinistro	2
33	64047358	Flexible Pipe	2
33	363400	Cappuccio copripolvere	2
34	94697	Washer	4
35	6447688	Assieme tubo olio sinistro	1
36	64477689	Assieme tubo olio destro	1
36	680458	Piastra per freni anteriori	2
37	12X20UNI 5	Bolt	2
38	REG 12	Washer	2
39	680453	Tubetto dal flessibile al caliper freno anteriore	2
40	64047362	Flexible Pipe	2
41	94698	Washer	4
14	65520000	FRONT FIXING BRACKET	4
15	10902024	SCREW	8
16	12640677	WASHER	8
17	140594	REAR SIDE-MARKER LAMP -Valid for USA and CDN	2
17	147563	FRONT SIDE-MARKER LAMP -Valid for USA and CDN	2
18	65164700	HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer	1
19	65511700	GASKET -Valid for cars with headlights washer	1
20	65363000	HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer	1
21	65380000	HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer	2
22	65380100	L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
22	65667200	R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
23	15517201	SCREW -Valid for cars with headlights washer	6
24	65896600	R.H. SUPPORT -Valid for cars with headlights washer	1
24	65896700	L.H. SUPPORT -Valid for cars with headlights washer	1
25	65896400	R.H. PLUG -Valid for cars with headlights washer	1
25	65896500	L.H. PLUG -Valid for cars with headlights washer	1
26	10441590	BRACKET -Valid for cars with headlights washer	4
27	14296191	RIVET -Valid for cars with headlights washer	4
28	65161700	L. H. FRONT SIDE LIGHT SUPPORT	1
28	65161500	R. H. FRONT SIDE LIGHT SUPPORT	1
29	10902424	SCREW	2
30	116413	WASHER	2
31	63234200	SCREW	2
32	12646801	WASHER	2
33	185378	CLIP	3
34	183672	BULB -For gas lamps	2
35	65705600	L.H. BRACKET -For gas lamps	1
35	65705500	R.H. BRACKET -For gas lamps	1
36	65705400	BRACKET -For gas lamps	2
37	185554	FRONT LIGHT CONTROL STATION -For gas lamps	2
38	155751	CLIP -Valid for USA and CDN	4
39	14084111	NUT -Valid for USA and CDN	8
40	12638124	WASHER -Valid for USA and CDN	8
41	66120200	INSULATION	1
42	14190190	NUT WITH CAGE	2
43	64529600	SPACER	8
4	66325702	Description not available
4	67259102	Description not available
4	66325725	Description not available
4	67259127	Description not available
