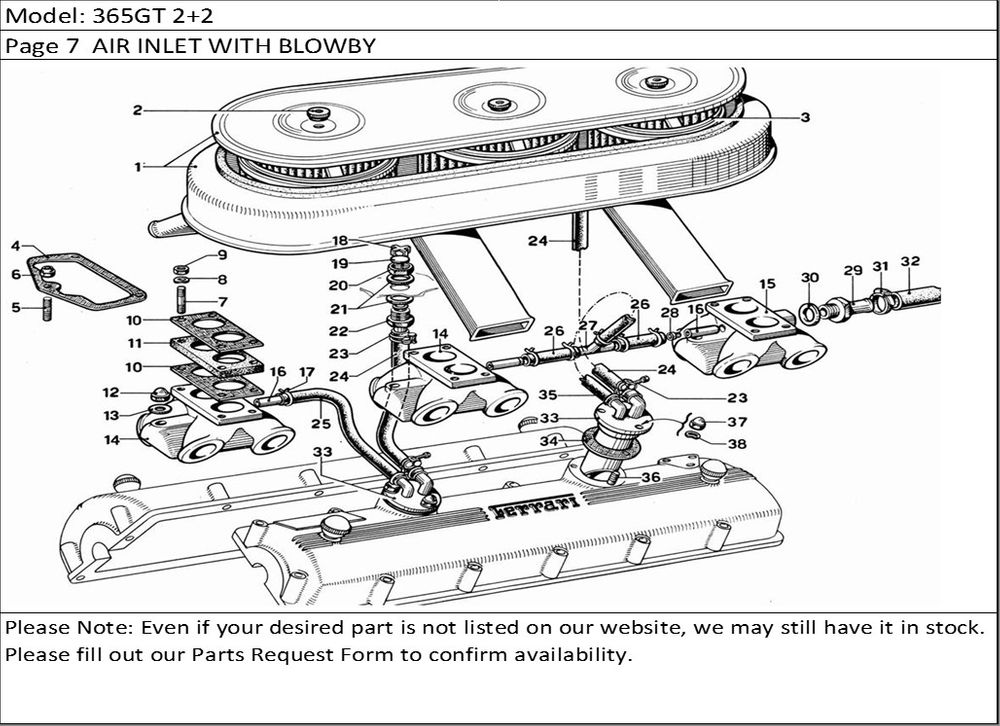

Page 7 AIR INLET WITH BLOWBY

365GT 2+2 Page 7  AIR INLET WITH BLOWBY


Click On Diagram To Enlarge


365GT 2+2 Page 7 AIR INLET WITH BLOWBY

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts DiagramPart #DescriptionQuantity Used
1180585Presa aria1
2-Nut3
395180054Elemento filtrante3
419554GASKET3
564955.003Stud9
6105 MANut9
7P2THREADED STUD12
8REO.8Washer12
98x1UNI 55Nut12
1019167GASKET6
1119166Spacer3
12110 MBNut5
13REO.10Washer6
14180085Collettore alimentazione2
15180086Collettore alimentazione con attacco servofreno . .1
1621012Tubo sul collettore3
1794951Fascetta stringitubo8
1821062Clip2
1921061Dischetto per valvola2
2021064Locknut2
2195248GASKET4
2195248GASKET4
2221063Corpo valvola2
232F.TIPOCI3Jubilee Clip4
2421093 GEMTubo sullo sfiato per collegamento presa aria2
2521009 GEMTubo dallo sfiato anterio al collettore anteriore1
2695042Manicotto sul 3 vie poste riore2
2721011UNION1
2821094Screw3
2969545UNION1
3094191GASKET1
3195024Fascetta 112/S- 22=292
32NDN 13Tubo gomma per servo freno1
3321092Assieme sfiato sul coyerchio teste2
3495045GASKET2
3521010Tubo dallo sfiato posteriore al tre vie1
36-THREADED STUD6
37106 MANut6
38REG 6Washer6
1465520000FRONT FIXING BRACKET4
1510902024SCREW8
1612640677WASHER8
17140594REAR SIDE-MARKER LAMP -Valid for USA and CDN2
17147563FRONT SIDE-MARKER LAMP -Valid for USA and CDN2
1865164700HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer1
1965511700GASKET -Valid for cars with headlights washer1
2065363000HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer1
2165380000HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer2
2265380100L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer1
2265667200R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer1
2315517201SCREW -Valid for cars with headlights washer6
2465896600R.H. SUPPORT -Valid for cars with headlights washer1
2465896700L.H. SUPPORT -Valid for cars with headlights washer1
2565896400R.H. PLUG -Valid for cars with headlights washer1
2565896500L.H. PLUG -Valid for cars with headlights washer1
2610441590BRACKET -Valid for cars with headlights washer4
2714296191RIVET -Valid for cars with headlights washer4
2865161700L. H. FRONT SIDE LIGHT SUPPORT1
2865161500R. H. FRONT SIDE LIGHT SUPPORT1
2910902424SCREW2
30116413WASHER2
3163234200SCREW2
3212646801WASHER2
33185378CLIP3
34183672BULB -For gas lamps2
3565705600L.H. BRACKET -For gas lamps1
3565705500R.H. BRACKET -For gas lamps1
3665705400BRACKET -For gas lamps2
37185554FRONT LIGHT CONTROL STATION -For gas lamps2
38155751CLIP -Valid for USA and CDN4
3914084111NUT -Valid for USA and CDN8
4012638124WASHER -Valid for USA and CDN8
4166120200INSULATION1
4214190190NUT WITH CAGE2
4364529600SPACER8
466325702Description not available
467259102Description not available
466325725Description not available
467259127Description not available
