Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

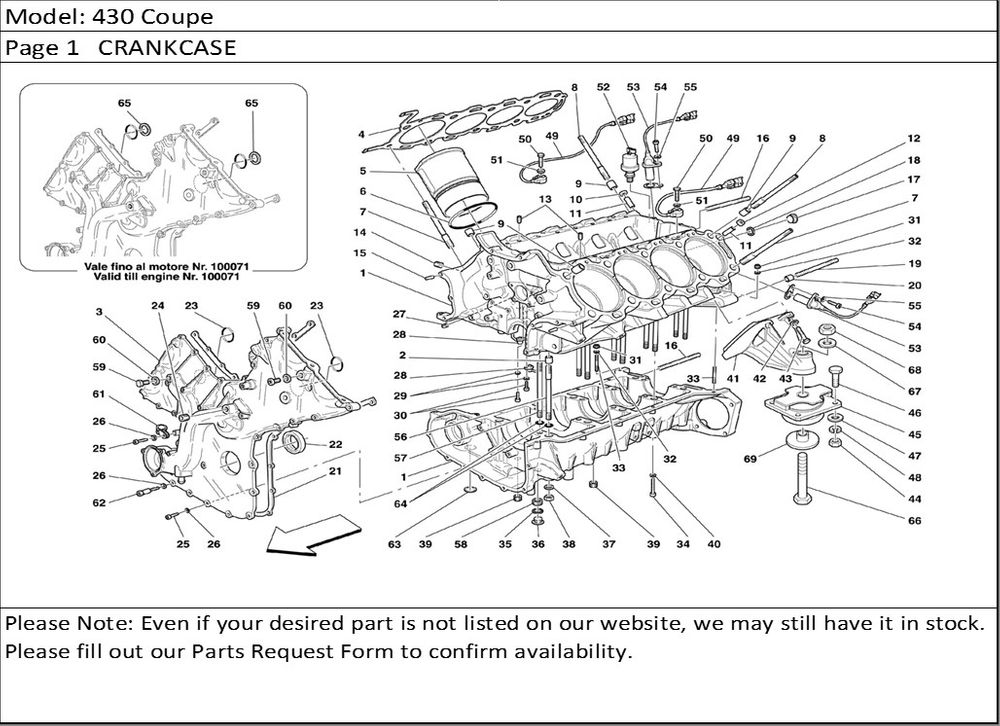

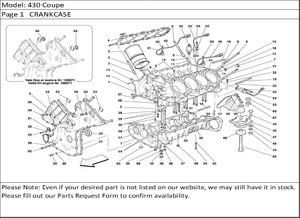

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 215926 | COMPLETE CRANKCASE -Valid from engine Nr. 89099- -Valid till engine Nr. 116245- | 1 |
| 1 | 233052 | COMPLETE CRANKCASE -Valid from engine Nr. 116246- -Valid till Ass. Nr. 72741 - | 1 |
| 1 | 236095 | COMPLETE CRANKCASE -Valid from Ass. Nr. 72742- | 1 |
| 1 | 202077 | COMPLETE CRANKCASE -Valid till engine Nr. 89098- | 1 |
| 2 | 176421 | CENTERING DOWEL | 10 |
| 3 | 229253 | FRONT COVER -Valid from engine No. 100072 to engine No. 117478- | 1 |
| 3 | 229253 | FRONT COVER -Valid till engine No. 100071- -Not as spare part- -Replaced by 221367- | 1 |
| 3 | 229253 | FRONT COVER -Valid from engine No. 117479- | 1 |
| 4 | 184966 | R.H. HEAD GASKET | 1 |
| 4 | 184967 | L.H. HEAD GASKET | 1 |
| 5 | 190770 | CYLINDER LINER | 8 |
| 6 | 186251 | GASKET | 24 |
| 7 | 217967 | STUD | 10 |
| 7 | 217967 | STUD -Not as spare part- -Replaced by 217967- | 10 |
| 8 | 217968 | STUD | 10 |
| 8 | 217968 | STUD -Not as spare part- -Replaced by 217968- | 10 |
| 9 | 185360 | CENTERING DOWEL | 4 |
| 10 | 201850 | DOWEL | 1 |
| 11 | 200458 | NONRETURN VALVE | 2 |
| 12 | 201849 | DOWEL | 1 |
| 13 | 177727 | CENTERING DOWEL | 2 |
| 14 | 164400 | THREADED PLUG | 1 |
| 15 | 175611 | CENTERING DOWEL | 2 |
| 16 | 13546734 | STUD | 4 |
| 17 | 193885 | THREADED PLUG -Valid till stock exhaustion- | 1 |
| 17 | 10275011 | THREADED PLUG -Valid after stock exhaustion of 193885- -Not as spare part- -Replaced by 10304511- | 1 |
| 17 | 10304511 | THREADED PLUG | 1 |
| 18 | 10263460 | GASKET | 1 |
| 19 | 13546934 | STUD | 3 |
| 20 | 100052 | CENTERING DOWEL | 2 |
| 21 | 193656 | FRONT COVER GASKET | 1 |
| 22 | 188717 | COVER GASKET | 1 |
| 23 | 183010 | O.R. GASKET | 2 |
| 24 | 14324940 | THREADED PLUG | 1 |
| 25 | 14305624 | SCREW -M 6X35- | 1 |
| 25 | 156828 | SCREW -M 6X50- | 3 |
| 25 | 14305524 | SCREW -M 6X30- | 3 |
| 25 | 14305924 | SCREW -M 6X45- | 2 |
| 25 | 231619 | SCREW -M 6X22- | 1 |
| 25 | 14433124 | SCREW-M 6X18- | 15 |
| 25 | 14432224 | SCREW -M 6X22- -Not as spare part- -Replaced by 231619- | 1 |
| 25 | 14303924 | SCREW -M 6X70- | 3 |
| 26 | 11197774 | SHER | 28 |
| 27 | 13525770 | THREADED INSERT | 5 |
| 28 | 175657 | PISTONS COOLING NOZZLE | 8 |
| 29 | 11181474 | SHER | 8 |
| 30 | 14302921 | SCREW | 8 |
| 31 | 132877 | NUT | 2 |
| 32 | 12604274 | SHER | 2 |
| 33 | 13541624 | STUD | 2 |
| 34 | 14305424 | SCREW -Not as spare part- -Replaced by 231620- | 10 |
| 34 | 231620 | SCREW | 10 |
| 34 | 14305324 | SCREW | 1 |
| 35 | 10261860 | GASKET | 1 |
| 36 | 104280 | THREADED PLUG | 1 |
| 37 | 178348 | SHER | 20 |
| 38 | 133988 | NUT | 20 |
| 39 | 14325140 | THREADED PLUG | 4 |
| 40 | 11197774 | SHER -Not as spare part- | 11 |
| 41 | 207221 | LH ENGINE FIXING SUPPORT | 1 |
| 41 | 207220 | RH ENGINE FIXING SUPPORT | 1 |
| 42 | 11190574 | SHER | 8 |
| 43 | 11306934 | SCREW -Valid from car Ass. Nr. 60389- | 8 |
| 43 | 15970734 | SCREW -Valid till car Ass. Nr. 60388- | 8 |
| 44 | 133988 | NUT | 8 |
| 45 | 216357 | ENGINE PAD -Valid till stock exhaustion- | 2 |
| 45 | 216357 | ENGINE PAD -Valid after stock exhaustion of 209069- | 2 |
| 46 | 15970634 | SCREW | 8 |
| 47 | 12646824 | SHER | 8 |
| 48 | 127497 | SHER | 8 |
| 49 | 187739 | SENSOR FOR FIRING -Flywheel side- -Not as spare part now- -Replaced by 219872 and 219873- | 2 |
| 49 | 219868 | R.H. SENSOR FOR FIRING -Flywheel side- | 1 |
| 49 | 219871 | L.H. SENSOR FOR FIRING -Flywheel side- | 1 |
| 49 | 187740 | SENSOR FOR FIRING -Timing side- -Not as spare part now- -Replaced by 219872 and 219873- | 2 |
| 49 | 219869 | R.H. SENSOR FOR FIRING -Timing side- | 1 |
| 49 | 219870 | L.H. SENSOR FOR FIRING -Timing side- | 1 |
| 50 | 16043834 | SCREW | 4 |
| 51 | 11198074 | SHER | 4 |
| 52 | 201207 | OIL PRESSURE TRANSMITTER | 1 |
| 53 | 182194 | ANGOLAR SPEED SENSOR -Not as spare part now- -Replaced by 219872 and 219873- | 2 |
| 53 | 219872 | R.H. SIDE ANGOLAR SPEED SENSOR | 1 |
| 53 | 219873 | L.H. SIDE ANGOLAR SPEED SENSOR | 1 |
| 54 | 14305724 | SCREW | 2 |
| 55 | 11197774 | SHER | 2 |
| 56 | 217794 | STUD -Not as spare part- -Replaced by 217794- | 10 |
| 56 | 217794 | STUD | 10 |
| 57 | 217796 | STUD | 10 |
| 57 | 217796 | STUD -Not as spare part- -Replaced by 217796- | 10 |
| 57 | 194757 | STUD -Not as spare part now- -Replaced by 215652- | 10 |
| 58 | 223577 | THREADED INSERT | 1 |
| 58 | 112254 | THREADED INSERT -Not as spare part- -Replaced by 223577- | 1 |
| 59 | 187718 | BLEEDER PLUG | 2 |
| 60 | 10284460 | GASKET | 2 |
| 61 | 10441590 | BRACKET WITH SHEATH | 1 |
| 62 | 206672 | STUD | 2 |
| 63 | 10158801 | PLUG | 1 |
| 64 | 134704 | O.R. GASKET | 20 |
| 65 | 191620 | REDUCTION -Valid till engine No. 100071- | 2 |
| 66 | 11369634 | SCREW | 2 |
| 67 | 12601774 | SHER | 2 |
| 68 | 176573 | NUT | 2 |
| 69 | 182141 | RETAINING WASHER | 2 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available | |
