Page 107 FLAT FLOOR PAN AND WHEELHOUSE

Click On Diagram To Enlarge

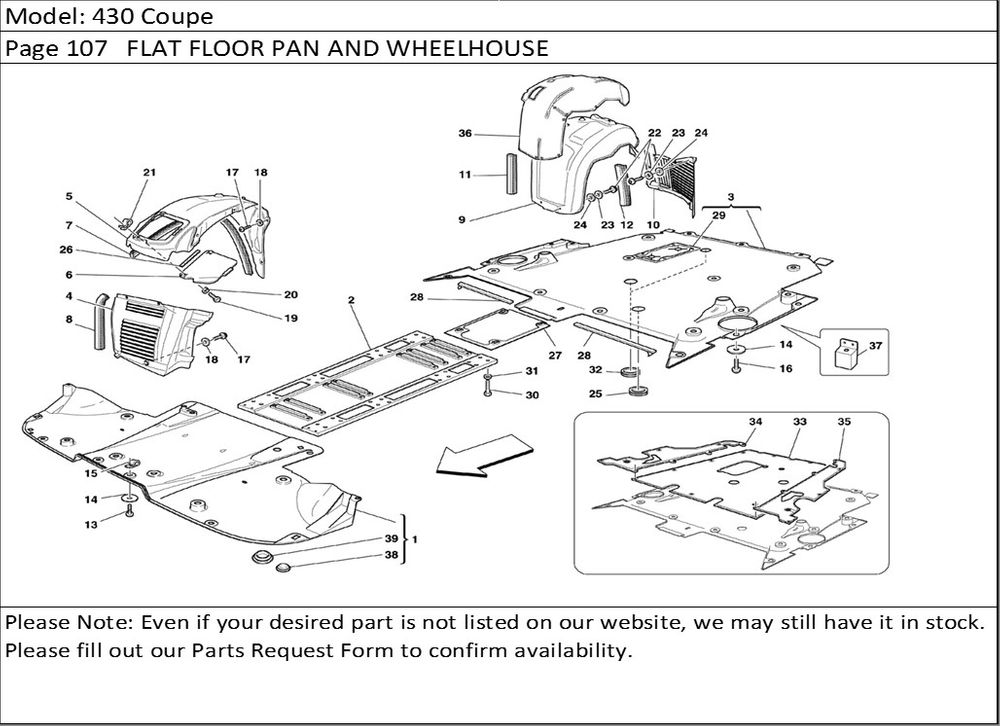

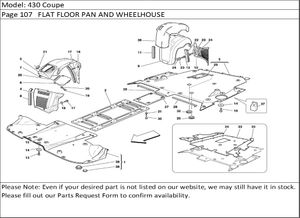

430 Coupe Page 107 FLAT FLOOR PAN AND WHEELHOUSE

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts Diagram	Part #	Description	Quantity Used
1	80494600	FRONT UNDER THE BODY SHELL SHIELD -Not as spare part- -Replaced by 80494600-	1
1	80494600	FRONT UNDER THE BODY SHELL SHIELD	1
2	198642	TUNNEL REINFORCEMENT	1
3	68373000	REAR UNDER THE BODY SHELL SHIELD	1
4	80255900	FRONT GRAVEL GUARD FOR L.H. FRONT WHEEL -Valid after stock exhaustion of 67256500-	1
4	80255900	FRONT GRAVEL GUARD FOR L.H. FRONT WHEEL -Valid till stock exhaustion-	1
4	80255800	FRONT GRAVEL GUARD FOR R.H. FRONT WHEEL -Valid after stock exhaustion of 67256400-	1
4	80255800	FRONT GRAVEL GUARD FOR R.H. FRONT WHEEL -Valid till stock exhaustion-	1
5	67957400	R.H. FRONT WHEELHOUSE OUTER CARPET SHIELD	1
5	67964900	L.H. FRONT WHEELHOUSE OUTER CARPET SHIELD	1
6	65522300	R.H. WHEELHOUSE DOOR	1
6	65522400	L.H. WHEELHOUSE DOOR	1
7	68036400	GASKET	2
8	64994500	GASKET -Not as spare part-	2
9	67957300	R.H. REAR WHEELHOUSE -Front side-	1
9	67957200	L.H. REAR WHEELHOUSE -Front side-	1
10	80256000	R.H. GRAVEL GUARD FOR REAR WHEEL -Valid till stock exhaustion-	1
10	80256000	R.H. GRAVEL GUARD FOR REAR WHEEL -Valid after stock exhaustion of 67964400-	1
10	80256100	L.H. GRAVEL GUARD FOR REAR WHEEL -Valid till stock exhaustion-	1
10	80256100	L.H. GRAVEL GUARD FOR REAR WHEEL -Valid after stock exhaustion of 67964500-	1
11	64865000	GASKET -Not as spare part-	2
12	68034900	GASKET	2
13	10902424	SCREW	16
14	66121400	WASHER	34
15	14189071	BRACKET	6
16	10902424	SCREW	23
17	13276477	SCREW	10
18	11197777	WASHER	10
19	10977887	SCREW	4
20	12638178	WASHER -Not as spare part- -Replaced by 12638178-	4
20	12638178	WASHER	4
21	66927700	BRACKET	4
22	13276477	SCREW	18
23	11197777	WASHER	18
24	12643724	WASHER	18
25	64783600	PROTECTION PLUG	1
26	66092500	ANTI-VIBRATION GASKET	2
27	68023300	CENTRAL UNDER THE BODY SHELL SHIELD	1
28	68035000	GASKET	2
29	68372600	OIL FILTER ISPECTION DOOR	1
30	205370	SCREW -M 6 x 25-	16
30	210246	SCREW -M 8 x 25-	32
31	12646727	WASHER -8,45 x 20 x 2-	32
31	12639727	WASHER-6,45x 11x1-	16
32	63965800	PLUG	2
33	69403900	CENTRAL INSULATION	1
34	69403800	R.H. INSULATION	1
35	69404000	L.H. INSULATION	1
36	80071600	L.H. WHEELHOUSE INSULATION -Valid till stock exhaustion of 69403500-	1
36	69403500	L.H. WHEELHOUSE INSULATION -Valid till stock exhaustion-	1
36	80071200	R.H. WHEELHOUSE INSULATION -Valid after stock exhaustion of 69403400-	1
36	80071200	R.H. WHEELHOUSE INSULATION -Valid till stock exhaustion-	1
37	68502300	BRACKET	1
38	14623187	PLUG	1
39	14507787	PLUG	1
14	65520000	FRONT FIXING BRACKET	4
15	10902024	SCREW	8
16	12640677	WASHER	8
17	140594	REAR SIDE-MARKER LAMP -Valid for USA and CDN	2
17	147563	FRONT SIDE-MARKER LAMP -Valid for USA and CDN	2
18	65164700	HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer	1
19	65511700	GASKET -Valid for cars with headlights washer	1
20	65363000	HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer	1
21	65380000	HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer	2
22	65380100	L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
22	65667200	R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
23	15517201	SCREW -Valid for cars with headlights washer	6
24	65896600	R.H. SUPPORT -Valid for cars with headlights washer	1
24	65896700	L.H. SUPPORT -Valid for cars with headlights washer	1
25	65896400	R.H. PLUG -Valid for cars with headlights washer	1
25	65896500	L.H. PLUG -Valid for cars with headlights washer	1
26	10441590	BRACKET -Valid for cars with headlights washer	4
27	14296191	RIVET -Valid for cars with headlights washer	4
28	65161700	L. H. FRONT SIDE LIGHT SUPPORT	1
28	65161500	R. H. FRONT SIDE LIGHT SUPPORT	1
29	10902424	SCREW	2
30	116413	WASHER	2
31	63234200	SCREW	2
32	12646801	WASHER	2
33	185378	CLIP	3
34	183672	BULB -For gas lamps	2
35	65705600	L.H. BRACKET -For gas lamps	1
35	65705500	R.H. BRACKET -For gas lamps	1
36	65705400	BRACKET -For gas lamps	2
37	185554	FRONT LIGHT CONTROL STATION -For gas lamps	2
38	155751	CLIP -Valid for USA and CDN	4
39	14084111	NUT -Valid for USA and CDN	8
40	12638124	WASHER -Valid for USA and CDN	8
41	66120200	INSULATION	1
42	14190190	NUT WITH CAGE	2
43	64529600	SPACER	8
4	66325702	Description not available
4	67259102	Description not available
4	66325725	Description not available
4	67259127	Description not available
