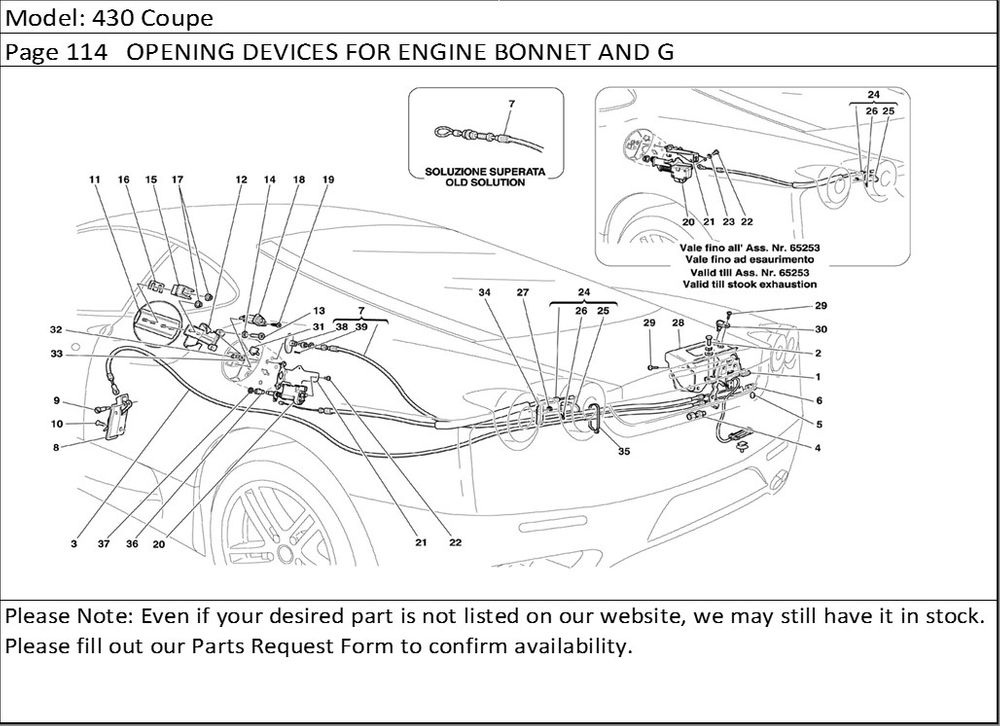

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 65732400 | COMPLETE ENGINE BONNET LOCK -Not for GD- | 1 |
| 1 | 65732500 | COMPLETE ENGINE BONNET LOCK -Valid for GD- | 1 |
| 2 | 16286127 | SCREW | 2 |
| 3 | 68746100 | CABLE FOR MOTOR BONNET OPENING | 1 |
| 4 | 62828900 | REGISTER FOR CABLES | 1 |
| 5 | 60276805 | DOWEL | 1 |
| 6 | 60276607 | CONNECTION | 1 |
| 7 | 65067300 | COMPLETE SAFETY LOCK CABLE FOR ENGINE HOOD -Not for GD- -Valid till stock exhaustion- | 1 |
| 7 | 80412000 | COMPLETE SAFETY LOCK CABLE FOR ENGINE HOOD -Not for GD- -Valid after stock exhaustion of 65067300- | 1 |
| 7 | 69204500 | COMPLETE SAFETY LOCK CABLE FOR ENGINE HOOD -Valid for GD- -Valid till stock exhaustion- | 1 |
| 7 | 80412100 | COMPLETE SAFETY LOCK CABLE FOR ENGINE HOOD -Valid for GD- -Valid after stock exhaustion of 69204500- | 1 |
| 8 | 80176200 | HANDLE FOR REAR HOOD OPENING -Valid after stock exhaustion of 65808100- | 1 |
| 8 | 80176200 | HANDLE FOR REAR HOOD OPENING -Valid till stock exhaustion- | 1 |
| 9 | 65852000 | PIN | 1 |
| 10 | 13299477 | SCREW | 1 |
| 11 | 68034110 | FUEL INLET LID -Alluminium lid- | 1 |
| 11 | 68430900 | FUEL INLET LID-Carbon lid- | 1 |
| 12 | 67934900 | HINGE FOR GAS UNION DOOOR | 1 |
| 13 | 13274014 | SCREW | 2 |
| 14 | 12605274 | WASHER -Not as spare part- -Replaced by 12601174- | 2 |
| 14 | 12601174 | WASHER | 2 |
| 15 | 65396000 | STRIKER | 1 |
| 16 | 65396100 | SPACER | 2 |
| 17 | 14084111 | NUT | 2 |
| 18 | 153069 | OPEN DOOR SWITCH | 1 |
| 19 | 15688875 | SCREW | 1 |
| 20 | 65395900 | ACTUATOR -Valid till Ass. Nr. 65253- -Valid till stock exhaustion- | 1 |
| 20 | 69918500 | ACTUATOR -Valid from Ass. Nr. 65254- -Valid after stock exhaustion of 65395900- | 1 |
| 21 | 65395800 | ACTUATOR SUPPORTING BRACKET -Valid till Ass. Nr. 65253- -Valid till stock exhaustion- | 1 |
| 21 | 69729700 | ACTUATOR SUPPORTING BRACKET -Valid from Ass. Nr. 65254- | 1 |
| 22 | 15641275 | SCREW -Valid till Ass. Nr. 65253- -Valid till stock exhaustion- | 2 |
| 22 | 15689601 | SCREW -Valid from Ass. Nr. 65254- | 2 |
| 23 | 14496277 | SHER -Valid till Ass. Nr. 65253- -Valid till stock exhaustion- | 2 |
| 24 | 65701000 | COMPLETE SAFETY CABLE FOR GAS UNION DOOR -Valid till Ass. Nr. 65253- -Valid till stock exhaustion- | 1 |
| 24 | 69775300 | COMPLETE SAFETY CABLE FOR GAS UNION DOOR -Valid from Ass. Nr. 65254- | 1 |
| 25 | 60710900 | EMERGENCY HANDLE | 1 |
| 26 | 60711000 | CLIP | 1 |
| 27 | 11087676 | FLEXIBLE RING | 2 |
| 28 | 65756100 | ENGINE BONNET LOCK SHIELD | 1 |
| 29 | 13297477 | SCREW | 1 |
| 30 | 62535900 | ADDITIONAL STOP LIGHT FIXED CONTACT | 1 |
| 31 | 63879900 | RUBBER PAD | 2 |
| 32 | 168698 | NUT | 2 |
| 33 | 12637878 | WASHER | 2 |
| 34 | 65506500 | REAR PIPE FIXING BRACKET -Not as spare part- | 1 |
| 35 | 145854 | CLAMP | 1 |
| 36 | 67485800 | BUSHING -Valid from Ass. Nr. 65254- | 1 |
| 37 | 67067600 | GASKET -Valid from Ass. Nr. 65254- | 1 |
| 38 | 60710900 | EMERGENCY HANDLE -Valid for cable 80412000 gsx. and 80412100 gdx. rif.7- | 1 |
| 39 | 60711000 | CLIP -Valid for cable 80412000 gsx. and 80412100 gdx. rif.7- | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available | |
