Page 123 ELECTRICAL SEAT GUIDE AND MOVEMENT O

Click On Diagram To Enlarge

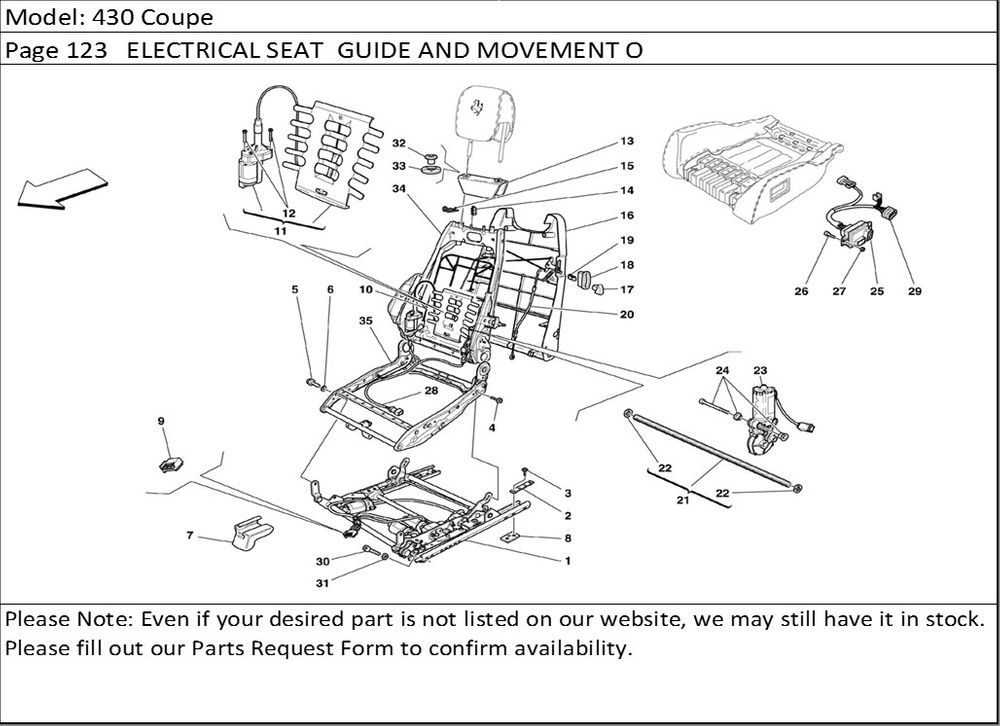

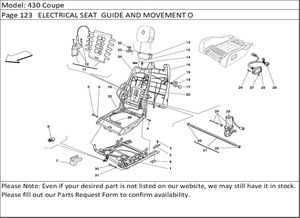

430 Coupe Page 123 ELECTRICAL SEAT GUIDE AND MOVEMENT O

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts Diagram	Part #	Description	Quantity Used
1	66327200	R.H. GUIDES	1
1	66327300	L.H. GUIDES	1
2	66323500	UPPER PLATE	4
3	66327100	SCREW	4
4	66327900	SCREW	8
5	66327500	COMPLETE SCREW	8
6	66327700	REAR FIXING BUSHING	4
6	66327600	FRONT FIXING BUSHING	4
7	66090500	L.H. GUIDE SHIELD	2
7	66090400	R.H. GUIDE SHIELD	2
8	166168	REAR SMALL PLATE	4
9	66328000	CONNECTOR	2
10	66326100	DEN CABLE SHEATH	2
10	66326000	SEAT BACK SIDE BOWDEN CABLE	2
11	66374500	ELECTRICAL LOMBAR SYSTEM	2
12	66328400	SCREW	4
13	691982	COMPLETE SADDLE	2
14	66324700	CLIP	4
15	66324600	R.H. CLIP	2
15	66370200	L.H. CLIP	2
16	66324100	SEAT BACK COVERING	2
17	66324500	SEAT RELEASE LEVER	4
18	66324400	PLATE	4
19	66324300	CLIP	4
20	66324200	SEAT RELEASE CABLE	4
21	66328800	COMPLETE UNION BAR	2
22	66328700	FIXING RING	4
23	66327800	MOTOR FOR SEAT BACK	2
24	66328500	FIXING KIT	2
25	66329300	L.H. SEAT SWITCH PANEL	1
25	66329200	R.H. SEAT SWITCH PANEL	1
26	66329400	SCREW	4
27	66329500	NUT	4
28	66329100	SEAT BACK ELECTRIC WIRING	2
28	80179100	SEAT BACK ELECTRIC WIRING -Heated seat-	2
29	80179500	CUSHION ELECTRIC WIRING PASSENGER SIDE -Valid for GD- -Heated seat-	1
29	69589700	CUSHION ELECTRIC WIRING PASSENGER SIDE -Valid for GD-	1
29	80179300	CUSHION ELECTRIC WIRING PASSENGER SIDE -Not for GD- -Heated seat-	1
29	66329000	CUSHION ELECTRIC WIRING PASSENGER SIDE -Not for GD-	1
29	80179400	CUSHION ELECTRIC WIRING PILOT SIDE -Valid for GD- -Heated seat-	1
29	69589600	CUSHION ELECTRIC WIRING PILOT SIDE -Valid for GD-	1
29	80179200	CUSHION ELECTRIC WIRING PILOT SIDE -Not for GD- -Heated seat-	1
29	66328900	CUSHION ELECTRIC WIRING PILOT SIDE -Not for GD-	1
30	65917500	SCREW	4
31	65917600	SHER	4
32	64025400	BUSHING	4
33	64025500	SHER	4
34	69198500	SEAT BACK STRUCTURE	2
35	69198800	R.H. CUSHION STRUCTURE	1
35	69198900	L.H. CUSHION STRUCTURE	1
14	65520000	FRONT FIXING BRACKET	4
15	10902024	SCREW	8
16	12640677	WASHER	8
17	140594	REAR SIDE-MARKER LAMP -Valid for USA and CDN	2
17	147563	FRONT SIDE-MARKER LAMP -Valid for USA and CDN	2
18	65164700	HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer	1
19	65511700	GASKET -Valid for cars with headlights washer	1
20	65363000	HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer	1
21	65380000	HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer	2
22	65380100	L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
22	65667200	R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
23	15517201	SCREW -Valid for cars with headlights washer	6
24	65896600	R.H. SUPPORT -Valid for cars with headlights washer	1
24	65896700	L.H. SUPPORT -Valid for cars with headlights washer	1
25	65896400	R.H. PLUG -Valid for cars with headlights washer	1
25	65896500	L.H. PLUG -Valid for cars with headlights washer	1
26	10441590	BRACKET -Valid for cars with headlights washer	4
27	14296191	RIVET -Valid for cars with headlights washer	4
28	65161700	L. H. FRONT SIDE LIGHT SUPPORT	1
28	65161500	R. H. FRONT SIDE LIGHT SUPPORT	1
29	10902424	SCREW	2
30	116413	WASHER	2
31	63234200	SCREW	2
32	12646801	WASHER	2
33	185378	CLIP	3
34	183672	BULB -For gas lamps	2
35	65705600	L.H. BRACKET -For gas lamps	1
35	65705500	R.H. BRACKET -For gas lamps	1
36	65705400	BRACKET -For gas lamps	2
37	185554	FRONT LIGHT CONTROL STATION -For gas lamps	2
38	155751	CLIP -Valid for USA and CDN	4
39	14084111	NUT -Valid for USA and CDN	8
40	12638124	WASHER -Valid for USA and CDN	8
41	66120200	INSULATION	1
42	14190190	NUT WITH CAGE	2
43	64529600	SPACER	8
4	66325702	Description not available
4	67259102	Description not available
4	66325725	Description not available
4	67259127	Description not available
