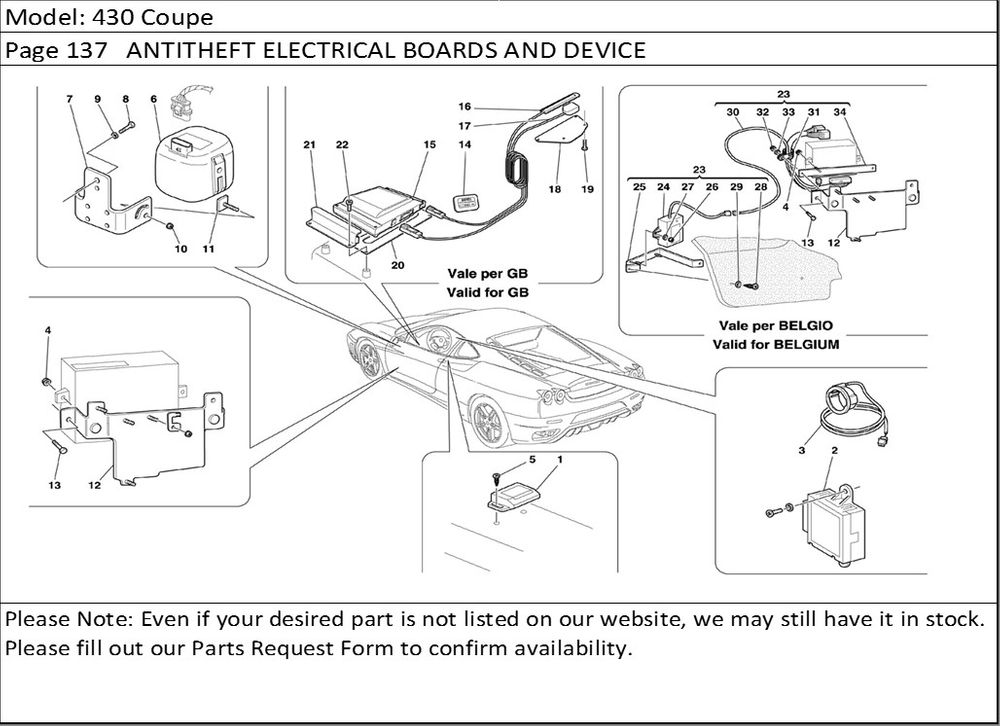

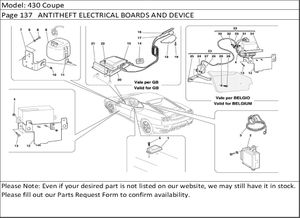

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 186594 | ANTI-LIFT SENSOR | 1 |
| 2 | 60673131 | IMMOBILIZER CONTROL STATION | 1 |
| 3 | 60692064 | IMMOBILIZER ANTENNA | 1 |
| 4 | 62790300 | NUT | 2 |
| 5 | 10444624 | SCREW -Not as spare part- -Replaced by 13272011 - | 2 |
| 5 | 13272011 | SCREW | 2 |
| 6 | 186593 | SIREN | 1 |
| 7 | 196386 | BRACKET | 1 |
| 8 | 16051921 | SCREW | 2 |
| 9 | 10519624 | WASHER | 2 |
| 10 | 102948 | NUT | 2 |
| 11 | 179810 | SCREW | 2 |
| 12 | 67912000 | BRACKET -Not as spare part- -Replaced by 69743500- | 1 |
| 12 | 69743500 | BRACKET | 1 |
| 13 | 16286024 | SCREW | 2 |
| 14 | 226183 | ADR3 CARD -Valid for satellite anti-theft- -Valid for GB- -Optional for not GB- -Not for J- | 1 |
| 15 | 226129 | ADR3 CONTROL STATION -Valid for satellite anti-theft- -Valid for GB- -Optional for not GB- -Not for J- | 1 |
| 16 | 226131 | GSM ANTENNA-PHANTOM 918 -Valid for satellite anti-theft- -Valid for GB- -Optional for not GB- -Not for J- | 1 |
| 17 | 226130 | GPS ANTENNA-SM76 MINI GPS -Valid for satellite anti-theft- -Valid for GB- -Optional for not GB- -Not for J- | 1 |
| 18 | 69082100 | PLATE -Valid for satellite anti-theft- -Valid for GB- -Optional for not GB- -Not for J- | 1 |
| 19 | 15900270 | SCREW -Valid for satellite anti-theft- -Valid for GB- -Optional for not GB- -Not for J- | 4 |
| 20 | 69732800 | ER PLATE -Valid for satellite anti-theft- -Valid for GB- -Optional for not GB- -Not for J- | 1 |
| 21 | 69733000 | UPPER PLATE -Valid for satellite anti-theft- -Valid for GB- -Optional for not GB- -Not for J- | 2 |
| 22 | 14779611 | SCREW -Valid for satellite anti-theft- -Valid for GB- -Optional for not GB- -Not for J- | 4 |
| 23 | 222626 | ANTI-THEFT KIT -Valid for Belgium- | 1 |
| 24 | 220908 | VOLUMETRIC SENSOR -Valid for Belgium- | 1 |
| 25 | 69344700 | BRACKET -Valid for Belgium- | 1 |
| 26 | 62790300 | NUT -Valid for Belgium- | 2 |
| 27 | 10519224 | WASHER -Valid for Belgium- | 2 |
| 28 | 13309177 | SCREW -Valid for Belgium- | 2 |
| 29 | 12611307 | WASHER -Valid for Belgium- | 2 |
| 30 | 220909 | CONNECTION CABLES -Valid for Belgium- | 1 |
| 31 | 10441490 | BRACKET WITH SHEATH -Valid for Belgium- | 1 |
| 32 | 62790300 | NUT -Valid for Belgium- | 1 |
| 33 | 10519224 | WASHER -Valid for Belgium- | 1 |
| 34 | 69344800 | CONTROL UNIT FIXING BRACKET -Valid for Belgium- | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available | |
