Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

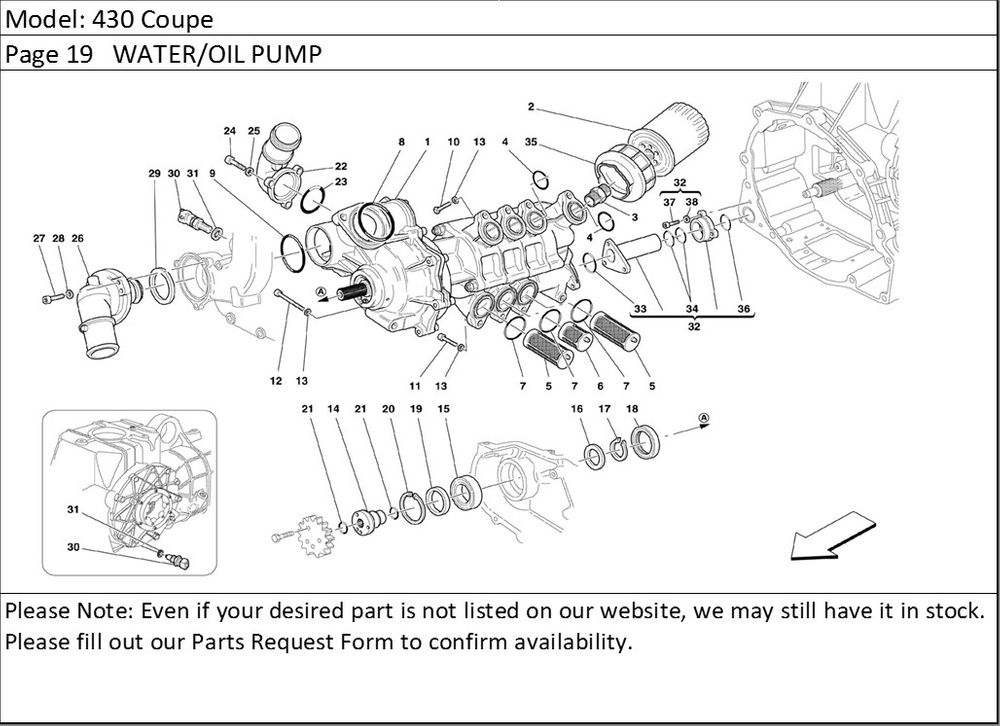

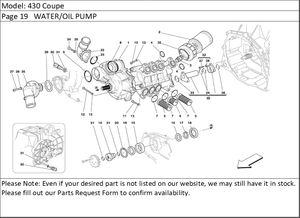

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 213223 | COMPLETE WATER AND OIL PUMP -Not for F1 - -Valid for car F1 till Ass. Nr. 58097- | 1 |
| 1 | 217628 | COMPLETE WATER AND OIL PUMP -Valid for F1- -Valid from car Ass. Nr. 58098- | 1 |
| 2 | 234742 | OIL FILTER CARTRIDGE -Not as spare part- -Replaced by 234742- | 1 |
| 2 | 234742 | OIL FILTER CARTRIDGE | 1 |
| 3 | 177604 | THREADED UNION | 1 |
| 4 | 133938 | O.R. GASKET | 4 |
| 5 | 187051 | LATERAL OIL RECOVERY FILTER | 2 |
| 6 | 187162 | CENTRAL OIL RECOVERY FILTER | 1 |
| 7 | 148225 | O.R. GASKET | 3 |
| 8 | 132829 | O.R. GASKET | 1 |
| 9 | 141250 | O.R. GASKET | 1 |
| 10 | 185345 | SCREW -M 8X25- | 4 |
| 11 | 14306524 | SCREW -M 8X30- | 1 |
| 11 | 14306424 | SCREW -M 8X25- | 3 |
| 12 | 14359324 | SCREW -M 8X65- | 2 |
| 13 | 11198074 | SHER | 10 |
| 14 | 189778 | COUPLING | 1 |
| 15 | 155996 | BALLBEARING | 1 |
| 16 | 177597 | COMPENSATOR RING | 1 |
| 17 | 11067276 | SEEGER RING | 1 |
| 18 | 121276 | GASKET | 1 |
| 19 | 177596 | COMPENSATOR RING | 1 |
| 20 | 11381076 | SEEGER RING | 1 |
| 21 | 186272 | O.R. GASKET | 2 |
| 22 | 196104 | TER INLET COVER | 1 |
| 23 | 154191 | GASKET | 1 |
| 24 | 14432224 | SCREW -Not as spare part- -Replaced by 231619- | 3 |
| 24 | 231619 | SCREW | 3 |
| 25 | 11197774 | SHER -Not as spare part- | 3 |
| 26 | 230887 | THERMOSTAT COVER -Valid for USA and CDN from M.Y. 06- -Valid after stock exhaustion of 224607- | 1 |
| 26 | 224607 | THERMOSTAT COVER -Valid for USA and CDN from M.Y. 06- -Valid till stock exhaustion- | 1 |
| 26 | 230887 | THERMOSTAT COVER -Valid for USA and CDN till M.Y. 06- -Valid after stock exhaustion of 222348- | 1 |
| 26 | 222348 | THERMOSTAT COVER -Valid for USA and CDN till M.Y. 06- -Valid till stock exhaustion- | 1 |
| 26 | 222348 | THERMOSTAT COVER -Not as spare part now- -Replaced by 222348- | 1 |
| 26 | 204513 | THERMOSTAT COVER -Not as spare part now- -Replaced by 218733- | 1 |
| 27 | 14305324 | SCREW | 3 |
| 28 | 11197774 | SHER | 3 |
| 29 | 137873 | GASKET | 1 |
| 30 | 180137 | TEMPERATURE SENSOR | 2 |
| 31 | 10298460 | GASKET | 2 |
| 32 | 240169 | FLANGE AND PIPE REPLACEMENT SET | 1 |
| 33 | 151914 | GASKET | 1 |
| 34 | 149536 | GASKET | 2 |
| 35 | 231414 | RUBBER BOOT | 1 |
| 36 | 153628 | GASKET | 1 |
| 37 | 14432224 | SCREW -Not as spare part- -Replaced by 231619- | 6 |
| 37 | 231619 | SCREW | 6 |
| 38 | 11197774 | SHER -Not as spare part- | 6 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available | |
