Home > Page 35 BRAKES AND CLUTCH HYDRAULIC CONTROLS

Page 35 BRAKES AND CLUTCH HYDRAULIC CONTROLS

Click On Diagram To Enlarge

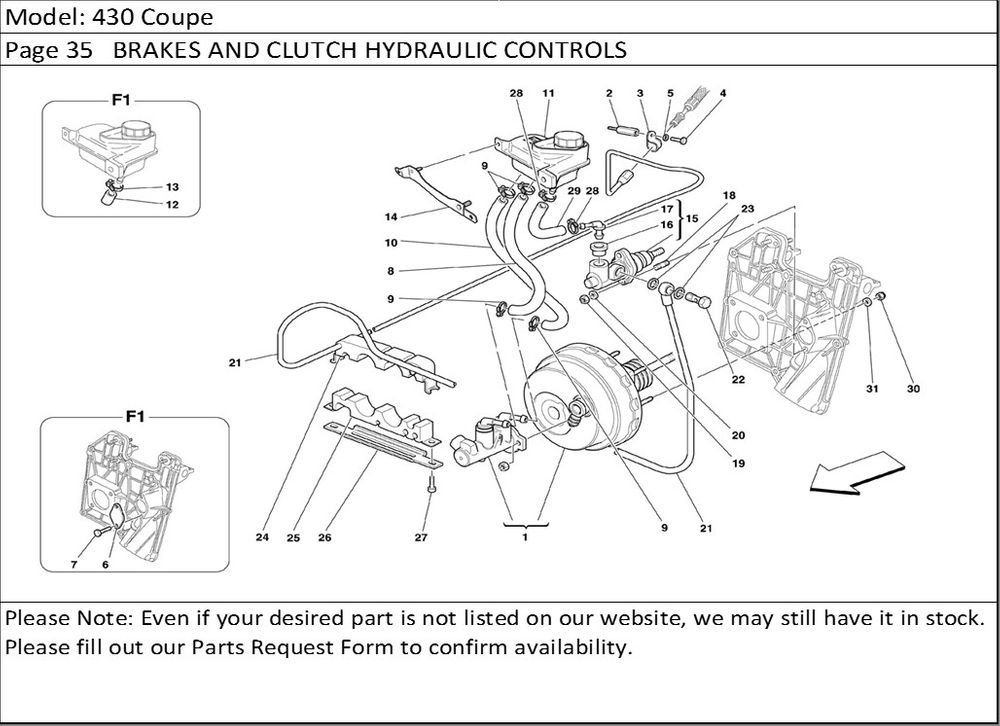

430 Coupe Page 35 BRAKES AND CLUTCH HYDRAULIC CONTROLS

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts Diagram	Part #	Description	Quantity Used
1	191087	COMPLETE BRAKE BOOSTER	1
1	198634	COMPLETE BRAKE BOOSTER -CCM version - -Optional-	1
2	178772	STUD-NotforF1-	1
3	10441390	BRACKET WITH SHEATH -Not for F1 -	2
4	10902224	SCREW-Not for F1-	1
5	127494	WASHER-Not for F1-	1
6	174177	FLANGE-Valid for F1-	1
7	16043021	SCREW -Valid for F1-	2
8	219142	PIPE FROM FRONT UNION TO TANK -CCM version- -Optional- -Valid for GD-	1
8	219140	PIPE FROM FRONT UNION TO TANK -Standard version- -Valid for GD-	1
8	182244	PIPE FROM FRONT UNION TO TANK -Standard version- -Valid for GD- -Not as spare part now- -Replaced by 219140-	1
8	154011	PIPE FROM FRONT UNION TO TANK -Not for GD-	1
9	13000190	SCREW COLLAR	4
10	219141	PIPE FROM REAR UNION TO TANK -CCM version- -Optional- -Valid for GD-	1
10	219139	PIPE FROM REAR UNION TO TANK -Standard version- -Valid for GD-	1
10	105857	PIPE FROM REAR UNION TO TANK -Standard version- -Valid for GD-	1
10	194598	PIPE FROM REAR UNION TO TANK -Not for GD-	1
11	203903	COMPLETE BRAKE OIL TANK	1
12	136379	PLUG-Valid for F1-	1
13	13000190	SCREW COLLAR -Valid for F1-	1
14	210758	BRACKET -Valid for GD-	1
14	195352	BRACKET-NotforGD-	1
15	180841	CLUTCH PUMP-Not for F1-	1
16	175189	SEAL RING-Not for F1-	1
17	184497	UNION-Not for F1-	1
18	13517024	STUD-NotforF1-	2
19	104030	NUT-NotforF1-	2
20	12601374	SHER-NotforF1-	2
21	202550	PIPE FROM PUMP TO REAR UNION -Not for F1--Not for GD-	1
21	219887	PIPE FROM PUMP TO REAR UNION -Not for F1--Valid for GD-	1
22	180042	UNION-NotforF1-	1
23	10298460	GASKET-NotforF1-	2
24	201028	UPPERSUPPORT	3
25	201029	ER SUPPORT	3
26	211683	SMALL PLATE	3
27	64830600	SCREW	6
28	13000190	SCREW COLLAR -Not for F1 -	2
29	134903	RUBBER HOSE -Not for F1 - -Not for GD-	1
29	212291	RUBBER HOSE -Not for F1 - -Valid for GD-	1
30	104030	NUT	4
31	12601374	SHER	4
14	65520000	FRONT FIXING BRACKET	4
15	10902024	SCREW	8
16	12640677	WASHER	8
17	140594	REAR SIDE-MARKER LAMP -Valid for USA and CDN	2
17	147563	FRONT SIDE-MARKER LAMP -Valid for USA and CDN	2
18	65164700	HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer	1
19	65511700	GASKET -Valid for cars with headlights washer	1
20	65363000	HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer	1
21	65380000	HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer	2
22	65380100	L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
22	65667200	R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
23	15517201	SCREW -Valid for cars with headlights washer	6
24	65896600	R.H. SUPPORT -Valid for cars with headlights washer	1
24	65896700	L.H. SUPPORT -Valid for cars with headlights washer	1
25	65896400	R.H. PLUG -Valid for cars with headlights washer	1
25	65896500	L.H. PLUG -Valid for cars with headlights washer	1
26	10441590	BRACKET -Valid for cars with headlights washer	4
27	14296191	RIVET -Valid for cars with headlights washer	4
28	65161700	L. H. FRONT SIDE LIGHT SUPPORT	1
28	65161500	R. H. FRONT SIDE LIGHT SUPPORT	1
29	10902424	SCREW	2
30	116413	WASHER	2
31	63234200	SCREW	2
32	12646801	WASHER	2
33	185378	CLIP	3
34	183672	BULB -For gas lamps	2
35	65705600	L.H. BRACKET -For gas lamps	1
35	65705500	R.H. BRACKET -For gas lamps	1
36	65705400	BRACKET -For gas lamps	2
37	185554	FRONT LIGHT CONTROL STATION -For gas lamps	2
38	155751	CLIP -Valid for USA and CDN	4
39	14084111	NUT -Valid for USA and CDN	8
40	12638124	WASHER -Valid for USA and CDN	8
41	66120200	INSULATION	1
42	14190190	NUT WITH CAGE	2
43	64529600	SPACER	8
4	66325702	Description not available
4	67259102	Description not available
4	66325725	Description not available
4	67259127	Description not available
