Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

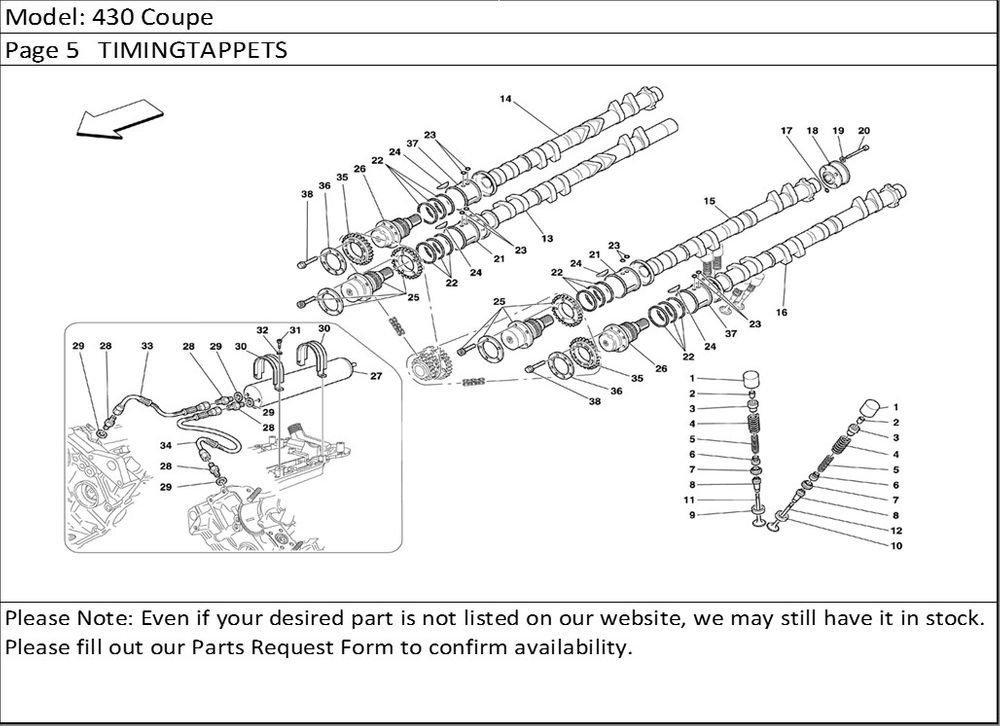

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 194700 | TAPPET FOR VALVE CONTROL | 32 |
| 2 | 179763 | COTTER FOR VALVE SPRING | 64 |
| 3 | 194713 | UPPER CUP | 32 |
| 4 | 197900 | OUTER SPRING FOR VALVE RETURN | 32 |
| 5 | 197901 | INNER SPRING FOR VALVE RETURN | 32 |
| 6 | 221473 | OILRING | 32 |
| 6 | 148153 | OIL RING -Not as spare part- -Replaced by 221473- | 32 |
| 7 | 194718 | ER CUP | 32 |
| 8 | 6172328 | INTAKE VALVE GUIDE -Not as spare part- -Replaced by 6213498- | 32 |
| 8 | 6213498 | INTAKE VALVE GUIDE | 32 |
| 9 | 6222847 | INTAKE VALVE SEAT -Valid from Ass. Nr. 71274- -Valid after stock exhaustion of 6213496- | 16 |
| 9 | 6213496 | INTAKE VALVE SEAT -Valid till Ass. Nr. 71273- -Valid till stock exhaustion- | 16 |
| 9 | 6175381 | INTAKE VALVE SEAT -Not as spare part- -Replaced by 6213496- | 16 |
| 10 | 6179959 | EXHAUST VALVE SEAT -Not as spare part- -Replaced by 6213497- | 16 |
| 10 | 6213497 | EXHAUST VALVE SEAT -Valid till Ass. Nr. 71273- -Valid till stock exhaustion- | 16 |
| 10 | 6222848 | EXHAUST VALVE SEAT -Valid from Ass. Nr. 71274- -Valid after stock exhaustion of 6213497- | 16 |
| 11 | 198581 | INTAKE VALVE -Not as spare part now- -Replaced by 198581- | 16 |
| 11 | 198581 | INTAKE VALVE | 16 |
| 12 | 198582 | EXHAUST VALVE | 16 |
| 12 | 189351 | EXHAUST VALVE -Not as spare part now- -Replaced by 198582- | 16 |
| 13 | 211414 | R.H. INDUCTION DISTRIBUTION CAM SHAFT -Valid till engine No. 97780- | 1 |
| 13 | 200144 | R.H. INDUCTION DISTRIBUTION CAM SHAFT -Valid from engine Nr. 97781- | 1 |
| 14 | 211416 | R.H. EXHAUST CAM SHAFT -Valid till engine No. 97780- | 1 |
| 14 | 200146 | R.H. EXHAUST CAM SHAFT -Valid from engine Nr. 97781- | 1 |
| 15 | 200145 | L.H. INDUCTION DISTRIBUTION CAM SHAFT-Valid from engine Nr. 97781- | 1 |
| 15 | 211415 | L.H. INDUCTION DISTRIBUTION CAM SHAFT -Valid till engine No. 97780- | 1 |
| 16 | 211418 | L.H. EXHAUST CAM SHAFT -Valid till engine No. 97780- | 1 |
| 16 | 200147 | L.H. EXHAUST CAM SHAFT -Valid from engine Nr. 97781- | 1 |
| 17 | 134701 | O.R. GASKET | 2 |
| 18 | 197558 | OIL PUMP VARIATOR | 1 |
| 19 | 184731 | SHER | 4 |
| 20 | 14303623 | SCREW | 4 |
| 21 | 206804 | INDUCTION PHASE VARIATOR SUPPORTNG BUSHING | 2 |
| 22 | 179926 | RING | 12 |
| 23 | 134701 | O.R. GASKET | 4 |
| 24 | 10618120 | KEY | 4 |
| 25 | 193779 | INDUCTION PHASE VARIATOR | 2 |
| 26 | 199438 | EXHAUST INDUCTION PHASE VARIATOR | 2 |
| 27 | 197062 | OIL ACCUMULATOR FOR VARIATOR | 1 |
| 28 | 195056 | THREADED UNION | 4 |
| 29 | 10261060 | GASKET | 4 |
| 30 | 197151 | BRACKET | 2 |
| 31 | 14305124 | SCREW | 4 |
| 32 | 11197774 | SHER | 4 |
| 33 | 198463 | PIPE FROM ACCUMULATOR TO R.H. CYLINDERS HEAD | 1 |
| 34 | 198464 | PIPE FROM ACCUMULATOR TO L.H. CYLINDERS HEAD | 1 |
| 35 | 194192 | TOOTHED WHEEL | 2 |
| 36 | 195649 | SHER | 2 |
| 37 | 206805 | EXHAUST PHASE VARIATOR SUPPORTNG BUSHING | 2 |
| 38 | 194977 | SCREW | 16 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available | |
