Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

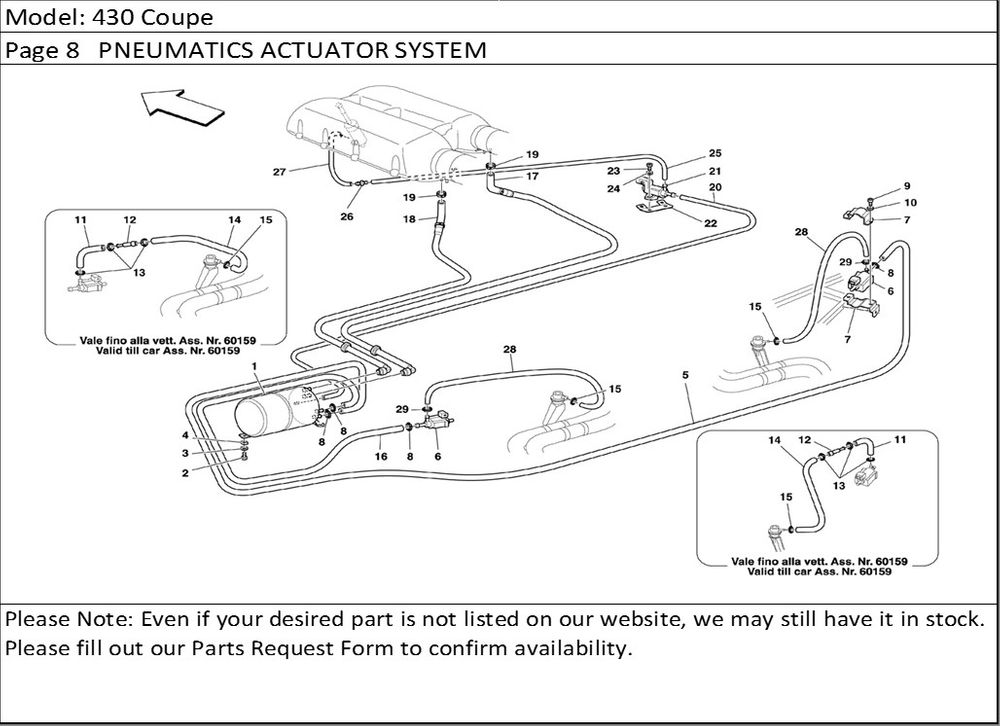

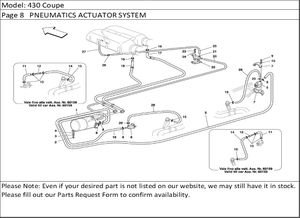

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 207624 | DEPRESSION ACCUMULATION TANK | 1 |
| 2 | 10902224 | SCREW -Not as spare part- -Replaced by 10902424- | 3 |
| 2 | 10902424 | SCREW | 3 |
| 3 | 12601274 | SHER | 3 |
| 4 | 12639724 | SHER -Not as spare part- -Replaced by 12644424- | 3 |
| 4 | 12644424 | SHER | 3 |
| 5 | 210352 | PIPE FROM TANK TO R.H. SOLENOID VALVE | 1 |
| 6 | 178309 | SOLENOID VALVE | 2 |
| 7 | 178515 | SOLENOID VALVE SUPPORT | 2 |
| 8 | 13432170 | COLLAR FOR SLEEVE | 4 |
| 9 | 14302924 | SCREW | 4 |
| 10 | 127492 | SHER | 4 |
| 11 | 178552 | RUBBER HOSE -Valid till car Ass. Nr. 60159- | 2 |
| 12 | 178369 | UNION -Valid till car Ass. Nr. 60159- | 2 |
| 13 | 13432270 | COLLAR FOR SLEEVE -Valid till car Ass. Nr. 60159- | 6 |
| 14 | 147121 | RUBBER HOSE -Valid till car Ass. Nr. 60159- | 2 |
| 15 | 241986 | COLLAR FOR SLEEVE | 2 |
| 15 | 171406 | COLLAR FOR SLEEVE -Not as spare part- -Replaced by 241986- | 2 |
| 16 | 210351 | PIPE FROM TANK TO L.H. SOLENOID VALVE | 1 |
| 17 | 222112 | COMPLETE R.H. DEPRESSION PIPE -Not as spare part- -Replaced by 222112- | 1 |
| 17 | 222112 | COMPLETE R.H. DEPRESSION PIPE | 1 |
| 18 | 222114 | COMPLETE L.H. DEPRESSION PIPE-Not as spare part--Replaced by 222114- | 1 |
| 18 | 222114 | COMPLETE L.H. DEPRESSION PIPE | 1 |
| 19 | 13432070 | COLLAR FOR SLEEVE | 2 |
| 20 | 124406 | PIPE FROM TANK TO SOLENOID VALVE -Not as spare part- -Replaced by 169692- | 1 |
| 20 | 169692 | PIPE FROM TANK TO SOLENOID VALVE | 1 |
| 21 | 184363 | SOLENOID VALVE | 1 |
| 22 | 200111 | BRACKET | 1 |
| 23 | 14304124 | SCREW | 2 |
| 24 | 12544179 | SHER | 2 |
| 25 | 115148 | PIPE FROM SOLENOID VALVE TO UNION | 1 |
| 26 | 178491 | UNION | 1 |
| 27 | 168248 | PIPE FROM UNION TO ACTUATOR | 1 |
| 28 | 198275 | RUBBER HOSE -Valid from car Ass. Nr. 60160- | 2 |
| 29 | 13432270 | COLLAR FOR SLEEVE -Valid from car Ass. Nr. 60160- | 2 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available | |
