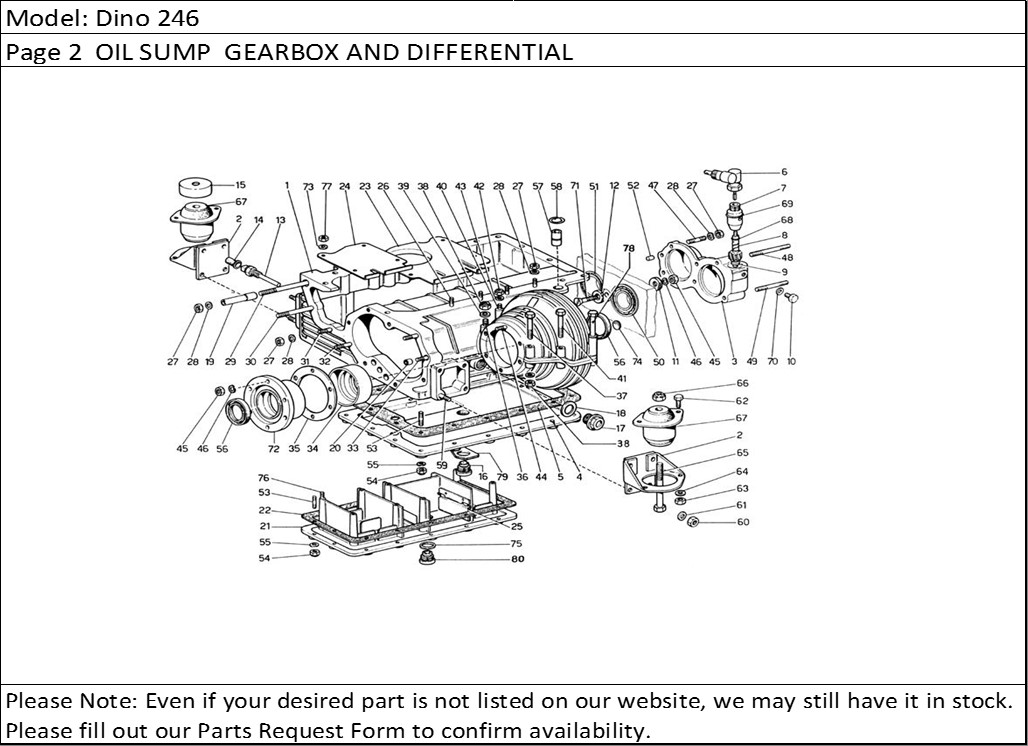

Dino 246 Page 2 OIL SUMP GEARBOX AND DIFFERENTIAL
Product Description
Dino 246 Page 2 OIL SUMP GEARBOX AND DIFFERENTIAL
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 607E52446 | Scatola cambio differenzialeDopo esaurim. N. 607E - 524169 e fino N. 04110 | 1 |
| 1 | 607E52416 | Scatola cambio differenzialeVale fino ad esaurimento | 1 |
| 1 | 607E52458 | Scatola cambio differenzialeVale dal N. 04112 | 1 |
| 1 | 607E52518 | Scatola cambio differenziale completa | 1 |
| 2 | 607E52388 | Supporto | 4 |
| 3 | 607E52458 | Coperchio posteriore cambioVale dal N. 04112 al N. 07022 | 1 |
| 3 | 607E52388 | Coperchio posteriore cambioVale fino N. 04110 | 1 |
| 3 | 105673 | Coperchio posteriore cambioVale dal N. 07024 | 1 |
| 4 | 104194 | Coperchio inferiore cambio | 1 |
| 5 | 104196 | Guarnizione | 1 |
| 6 | 101353 | Rinvio angolo R. 1-1 | 1 |
| 7 | 104288 | Corpo rinvio tachimetroVale dal N. 04830 | 1 |
| 7 | 607E52392 | Corpo rinvio tachimetroVale fino N. 04828 | 1 |
| 8 | 607E52392 | Pignone per conta Km. R. 8/15Vale fino N. 04828 | 1 |
| 8 | 607E52437 | Pignone per conta Km. R. 8/15Vale dal N. 04830 | 1 |
| 9 | 101354 | Bottone reggispintaVale fino N. 07022 | 1 |
| 9 | 105674 | Rullo reggispintaVale dal N 07024 | 1 |
| 10 | 101349 | Bullone | 1 |
| 11 | 104198 | Rondella tenuta cuscinetti | 1 |
| 12 | 104199 | Rondella tenuta cuscinetti | 1 |
| 13 | 107576 | Termistore | 1 |
| 14 | 607E52454 | Protezione per termistore | 1 |
| 15 | 607-523127 | Protezione per tampone | 1 |
| 16 | 104280 | TappoDal N. 03526 la quant. e 1 | 1 |
| 17 | 104282 | Tappo controllo livello olio | 1 |
| 18 | 104283 | Guarnizione | 1 |
| 19 | 607E52397 | Grano di centraggio | 1 |
| 20 | 102704 | Grano di centraggio | 1 |
| 21 | 607E52412 | Coperchio olio motore | 1 |
| 22 | 104197 | Guarnizione | 1 |
| 23 | 607E52422 | Paratia anteriore | 1 |
| 24 | 607E52423 | Paratia posteriore | 1 |
| 25 | 236E11145 | Assieme paratia verticale | 2 |
| 26 | 13516920 | THREADED STUD | 4 |
| 27 | 16100811 | Dado | 22 |
| 28 | 11198071 | Rondella | 22 |
| 29 | 8x110P1 | THREADED STUD | 1 |
| 30 | 95920426 | THREADED STUD | 1 |
| 31 | 13517420 | THREADED STUD | 1 |
| 32 | 13517220 | THREADED STUD | 8 |
| 33 | 13517320 | THREADED STUD | 1 |
| 34 | 104295 | Busta per cuscinetto | 1 |
| 35 | 106086 | Idem spessore mm. 2Di eventuale montaggio | 1 |
| 35 | 607E58088 | Idem spessore mm. 2.2Di eventuale montaggio | 1 |
| 35 | 607E58088 | Idem spessore mm. 2.4Di eventuale montaggio | 1 |
| 35 | 607E58088 | Spessore per registro cuscinetti differenziale (spessore mm. 1.8)Di eventuale montaggio | 1 |
| 36 | 13450420 | THREADED STUD | 2 |
| 37 | 15972021 | Bullone | 2 |
| 38 | 12574511 | Dado autobloccante | 4 |
| 39 | 12601471 | Rondella | 4 |
| 40 | 13517820 | THREADED STUD | 1 |
| 41 | 11102521 | Bullone | 1 |
| 42 | 16104111 | Dado autobloccante | 4 |
| 43 | 103180 | Rondella | 4 |
| 44 | 99920408 | THREADED STUD | 6 |
| 45 | 16100811 | Dado | 7 |
| 46 | 10516670 | Rondella | 7 |
| 47 | 13517220 | THREADED STUD | 4 |
| 48 | 13517820 | THREADED STUD | 1 |
| 49 | 13517620 | THREADED STUD | 1 |
| 50 | 95890505 | Cuscinetto centrale | 1 |
| 51 | 95893020 | Cuscinetto centrale | 1 |
| 52 | 4146563 | Grano di centraggio | 1 |
| 53 | 13541121 | THREADED STUDDopo esaurim. N. 95920109 | 30 |
| 53 | 95920109 | THREADED STUDVale fino ad esaurimento | 30 |
| 54 | 15896211 | Dado | 30 |
| 55 | 11197771 | Rondella | 30 |
| 56 | 95850316 | Anello di tenuta | 2 |
| 57 | 103838 | Grano di centraggio | 2 |
| 58 | 103839 | Anellino elastico | 2 |
| 59 | 13449520 | THREADED STUD | 16 |
| 60 | 12164711 | Dado | 16 |
| 61 | 10516870 | Rondella | 16 |
| 62 | 15970621 | Bullone | 8 |
| 63 | 12164711 | Dado | 8 |
| 64 | 10516870 | Rondella | 8 |
| 65 | 15541821 | BulloneDopo esaurim. N. 100798 | 4 |
| 65 | 100798 | Bullone | 4 |
| 66 | 16105121 | Dado | 4 |
| 67 | 607E52452 | Supporto elastico | 4 |
| 68 | 104103 | Anello di tenutaVale dal N. 04830 | 1 |
| 68 | 95860003 | Anello di tenutaVale fino N. 04828 | 1 |
| 69 | 95860045 | Anello di tenuta | 1 |
| 70 | 103180 | Rondella | 1 |
| 71 | 95940234 | Vite | 1 |
| 72 | 104294 | Coperchio laterale differenziale | 1 |
| 73 | 11195470 | Rondella | 8 |
| 74 | 10158801 | Tappo ad espans. per foro asta 1a e RM. | 1 |
| 75 | 10263460 | Guarnizione | 1 |
| 76 | 95920002 | THREADED STUD | 8 |
| 77 | 95900718 | Dado | 8 |
| 78 | 104189 | Bullone | 1 |
| 79 | 607E52450 | Piastrina per tappo scarico olio cambioVale dal N. 02456 al N. 05066 | 1 |
| 80 | 10275001 | Tappo scarico olio motoreDopo esaurim. N. F10275040 | 1 |
| 80 | 10275040 | Tappo scarico olio motoreVale dal N. 03526 e fino ad esaurim. | 1 |
