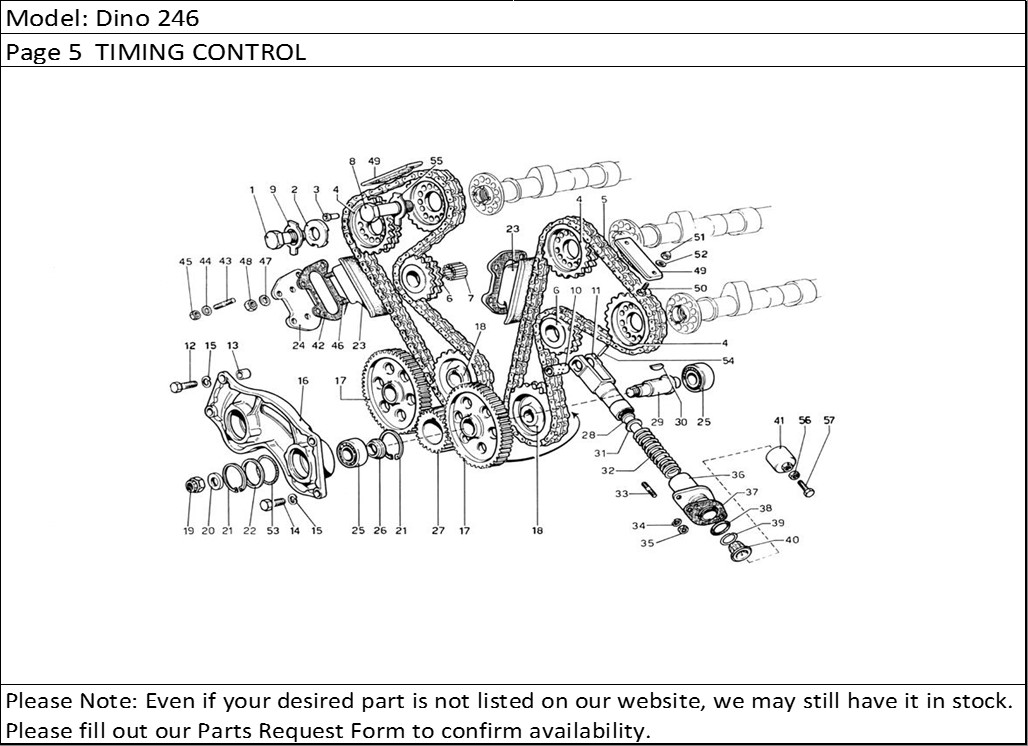

Dino 246 Page 5 TIMING CONTROL
Product Description
Dino 246 Page 5 TIMING CONTROL
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 4146779 | Vite per ingranaggio | 2 |
| 1 | 4261136 | Vite per ingranaggio condotto | 1 |
| 2 | 4146764 | Rondella piana | 3 |
| 3 | 4146769 | Grano di trascinamento | 8 |
| 4 | 4181157 | Ingranaggio condotto | 4 |
| 5 | 4181156 | Catena comando distribuzione | 2 |
| 6 | 4181158 | ingranaggio tendicatena | 2 |
| 7 | 28044380 | Rullino per ingranaggi | 38 |
| 8 | 4146765 | Vite per ingranaggio | 1 |
| 9 | 4146781 | Piastrina di sicurezza | 3 |
| 10 | 4160884 | Perno per supporto | 2 |
| 11 | 4195781 | Supporto per tendicatena | 2 |
| 12 | 16043621 | Bullone 8x1.25x25 | 2 |
| 13 | 4146789 | Grano di centraggio | 2 |
| 14 | 16043421 | Bullone 8x1.25x20 | 2 |
| 15 | 11198073 | Rondella elastica | 4 |
| 16 | 4182708 | Supporto ingranaggi | 1 |
| 17 | 236E22075 | Ingranaggio condotto | 2 |
| 18 | 4181155 | ingranaggio di comando | 2 |
| 19 | 16109221 | Dado autobloccante | 2 |
| 20 | 4177555 | Rondella | 2 |
| 21 | 11059475 | Anello elastico | 4 |
| 22 | 4182710 | Rondella elastica distanziale | 2 |
| 23 | 4242216 | Pattino per catena | 2 |
| 24 | 4234900 | Piastre chiusura feritoie sulle teste | 2 |
| 25 | 10558440 | Cuscinetto a sfere | 4 |
| 26 | 4146780 | Distanziale | 2 |
| 27 | 236E12830 | Ingranaggio sull''albero motore | 1 |
| 28 | 236E22079 | Assieme asta per tendicatenaVale dal motore N. 11422 aI N 11481 | 2 |
| 28 | 4195791 | Asta per tendicatena | 2 |
| 28 | 236E22079 | Asta per tendicatenaVale dal iraglore N. 11422 al N. 11481 | 2 |
| 28 | 236E22079 | Terminale in gommaVale dal motore N 11422 al N 11481 | 2 |
| 29 | 4177554 | Albero per ingranaggio | 2 |
| 30 | 10205920 | LinguettaVale fmo N. 05302 | 2 |
| 30 | 236E12834 | LinguettaVale dal N. 05304 | 2 |
| 31 | 4195785 | Rondella | 2 |
| 32 | 4220865 | Molla per tendicatena | 2 |
| 33 | 13540921 | THREADED STUD | 4 |
| 34 | 11197773 | Rondella elastica | 4 |
| 35 | 15896211 | Dado EM 6x1 | 4 |
| 36 | 236E22076 | Corpo tendicatena | 2 |
| 37 | 4195788 | Guarnizione | 2 |
| 38 | 4195786 | Anello di tenuta | 2 |
| 39 | 4195790 | Anello dlsinnesto cono | 2 |
| 40 | 4195789 | Cono arresto asta | 2 |
| 41 | 236E22076 | Dado registro tendicatena | 2 |
| 41 | 4195782 | Tendicatena complete | 2 |
| 42 | 4234707 | Guarnizione per piastra | 2 |
| 43 | 13540921 | Prigioniero M 6x12 (sulle teste cilindri) | 8 |
| 44 | 11197773 | Rosetta | 8 |
| 45 | 15896211 | Dado | 8 |
| 46 | 13543121 | Prigioniero 8x1.25x16 | 4 |
| 47 | 11198073 | Dado | 4 |
| 48 | 16100811 | Rosetta | 4 |
| 49 | 100213 | Pattino tenuta catena | 2 |
| 50 | 99880306 | Builone | 4 |
| 51 | 101239 | Dado cieco | 4 |
| 52 | 10519460 | Guarnizione | 4 |
| 53 | 4182709 | Anello di tenuta | 2 |
| 54 | 10336110 | Perno | 2 |
| 55 | 102777 | Piastrina | 1 |
| 56 | 15896221 | Dado | 2 |
| 57 | 95880324 | BulloneVale dal motore N. 1 1422 aIN. 11481 | 2 |
| 57 | 95880320 | Bullone | 2 |
