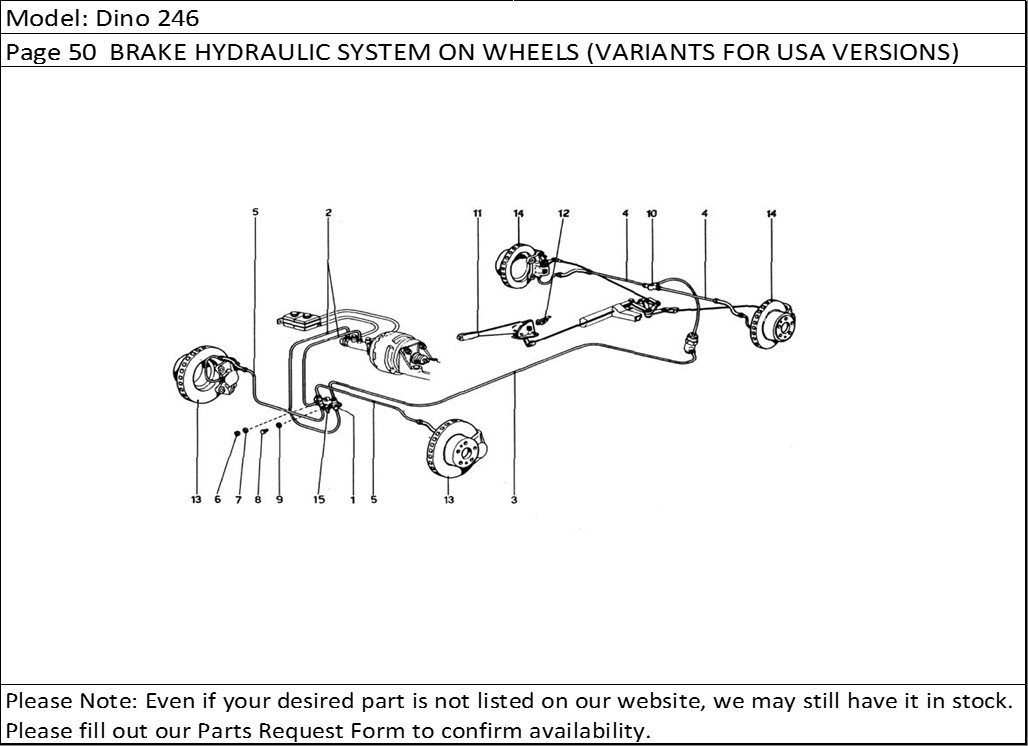

Dino 246 Page 50 BRAKE HYDRAULIC SYSTEM ON WHEELS (VARIANTS FOR USA VERSIONS)
Product Description
Dino 246 Page 50 BRAKE HYDRAULIC SYSTEM ON WHEELS (VARIANTS FOR USA VERSIONS)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 101415 | Valvola di segnalazione pressione olio freniPer U.S - Vale anche per S e CH | 1 |
| 2 | 104469 | Tubetto dal servofreno alia valvola segnalazione pressione olio freniPer U.S - Vale anche per S e CH | 2 |
| 3 | 104471 | Tubetto dalla valvola segnalazione pressione olio freni alla valvola regolazione freni posterioriPer U.S - Vale fino al N. 04828 - Vale anche per S e CH | 1 |
| 3 | 607E68105 | Tubetto dalla valvola segnalazione pressione olio freni alla valvola regolazione freni posterioriPer U.S - Vale dal N. 04830 - Vale anche per S e CH | 1 |
| 4 | 104470 | Tubetto dal 3 vie posteriore ai flessibili ruote posterioriPer U.S - Vale anche per S e CH | 2 |
| 5 | 104470 | Tubetto dalla valvola segnalazione pressione olio ai flessibili ruote ant.Per U.S - Vale anche per S e CH | 2 |
| 6 | 16100821 | Dado fissaggio valvolaPer U.S - Vale anche per S e CH | 1 |
| 7 | 10516670 | RondellaPer U.S - Vale anche per S e CH | 1 |
| 8 | 106368 | Tappo per valvolaPer U.S - Vale anche per S e CH | 1 |
| 9 | 10260160 | GuarnizionePer U.S - Vale anche per S e CH | 1 |
| 10 | 101394 | Raccordo a tre viePer U.S | 1 |
| 11 | 607E68096 | Assieme leva comando freno a manoPer U.S - Vale anche per S | 1 |
| 12 | 101188 | Interruttore per spia freno a manoPer U.S - Vale anche per S | 1 |
| 13 | 607E68100 | Disco freno per ruote anterioriPer U.S | 2 |
| 14 | 607E68100 | Disco freno per ruote posterioriPer U.S | 2 |
| 15 | 107621 | Trasmettitore elettrico ineffic. freniPer U.S | 1 |
