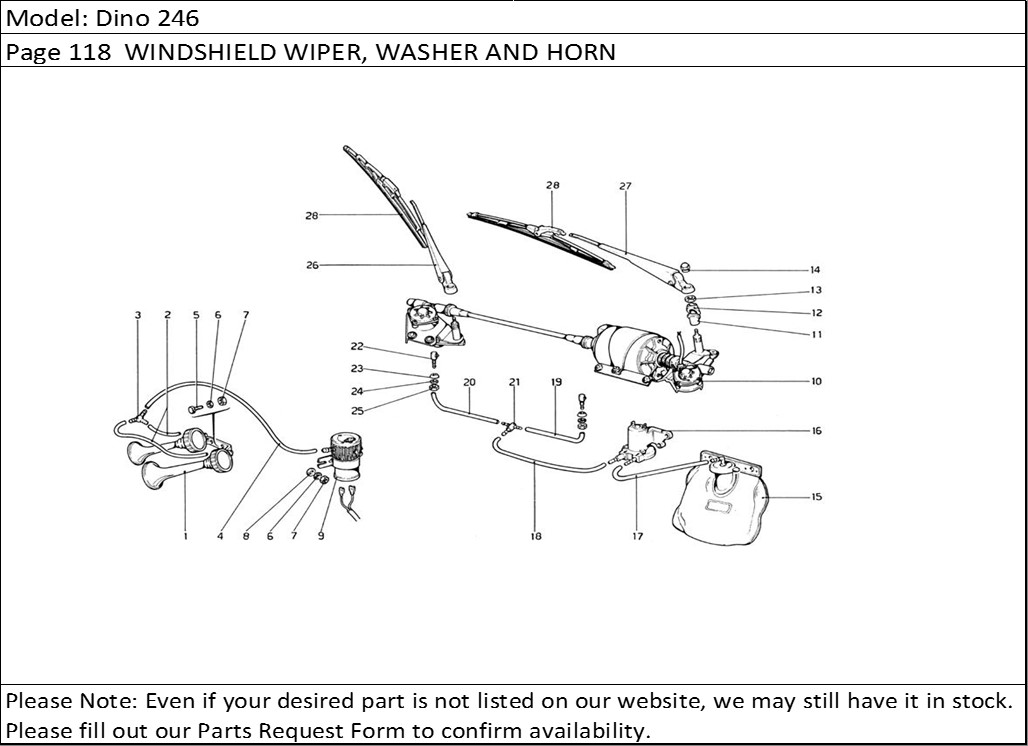

Dino 246 Page 118 WINDSHIELD WIPER, WASHER AND HORN
Product Description
Dino 246 Page 118 WINDSHIELD WIPER, WASHER AND HORN
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 500895 | TrombeNon vale per CH | 1 |
| 1 | 501869 | TrombeVale per CH | 1 |
| 2 | 500896 | Condotto da raccordo a tromba | 2 |
| 3 | 500897 | Raccordo | 1 |
| 4 | 202812 | Condotto da compressore raccordo | 1 |
| 5 | 16043221 | Vite | 2 |
| 6 | 10615670 | Rondella | 4 |
| 7 | 16100811 | Dado | 4 |
| 8 | 12642001 | Rondella | 2 |
| 9 | 500893 | CompressoreNon vale per CH | 1 |
| 9 | 501868 | CompressoreVale per CH | 1 |
| 9 | 202813 | Complessivo trombe e compressoreVale per CH | 1 |
| 9 | 201631 | Complessivo trombe e compressoreNon vale per CH | 1 |
| 10 | 607E40156 | Motorino tergiVale dalla 1333 | 1 |
| 10 | 607E40171 | Motorino tergiVale per GD dalla 1251 in poi - Per GS dalla 1251 alla1332 | 1 |
| 10 | 607E40123 | Motorino tergiVale fino alia 1250 | 1 |
| 11 | 202814 | Distanziale inferiore | 2 |
| 12 | 202815 | Distanziale superiore | 2 |
| 13 | 202816 | Dado | 2 |
| 14 | 202817 | Dado cieco | 2 |
| 15 | 201692 | Borsa lavacristalloVale fino alla 1250 - Non vale per USA - D - S | 1 |
| 15 | 202336 | Borsa lavacristalloVale dalla 1251 | 1 |
| 16 | 202818 | Pompa per lavacristallo | 1 |
| 17 | 202819 | Condotto | 1 |
| 18 | 202820 | Condotto | 1 |
| 19 | 202821 | Condotto | 1 |
| 20 | 202822 | Condotto | 1 |
| 21 | 202823 | Raccordo | 1 |
| 22 | 202824 | Ugello | 2 |
| 23 | 202825 | Distanziale | 2 |
| 24 | 12605370 | Rondella | 2 |
| 25 | 10725911 | Dado | 2 |
| 25 | 200874 | Complessivo lavacristalloVale fino alia 1250 - Non vale per USA - S - D | 1 |
| 25 | 201358 | Complessivo lavacristalloVale dalla 1251 per tutte - Vale per USA - S - D | 1 |
| 26 | 607E40176 | Braccio tergi Iato passeggeroVale per G.D. - Per G.S. vale fino alla 1332 | 1 |
| 26 | 607E40176 | Braccio tergi Iato passeggeroVale dalla 1333 in poi | 1 |
| 27 | 607E40134 | Braccio tergi Iato pilotaVale per G.D. - Per G.S. vale fino alla 1332 | 1 |
| 27 | 607E40176 | Braccio tergi Iato pilotaVale dalla 1333 in poi | 1 |
| 28 | 607E40176 | Spazzole tergiVale per USA - S - N - DK dalla 1333 in poi | 2 |
| 28 | 607E40112 | Spazzole tergiVale per AUS - Per USA e S vale fino alla 1332 | 2 |
| 28 | 607E40112 | Spazzole tergiVale per G.D. - Per G.S. vale fino alla 1332 | 2 |
| 28 | 607E40176 | Spazzole tergiVale dalla 1333 in poi - Non vale per USA - S - N - DK e G.D. | 2 |
