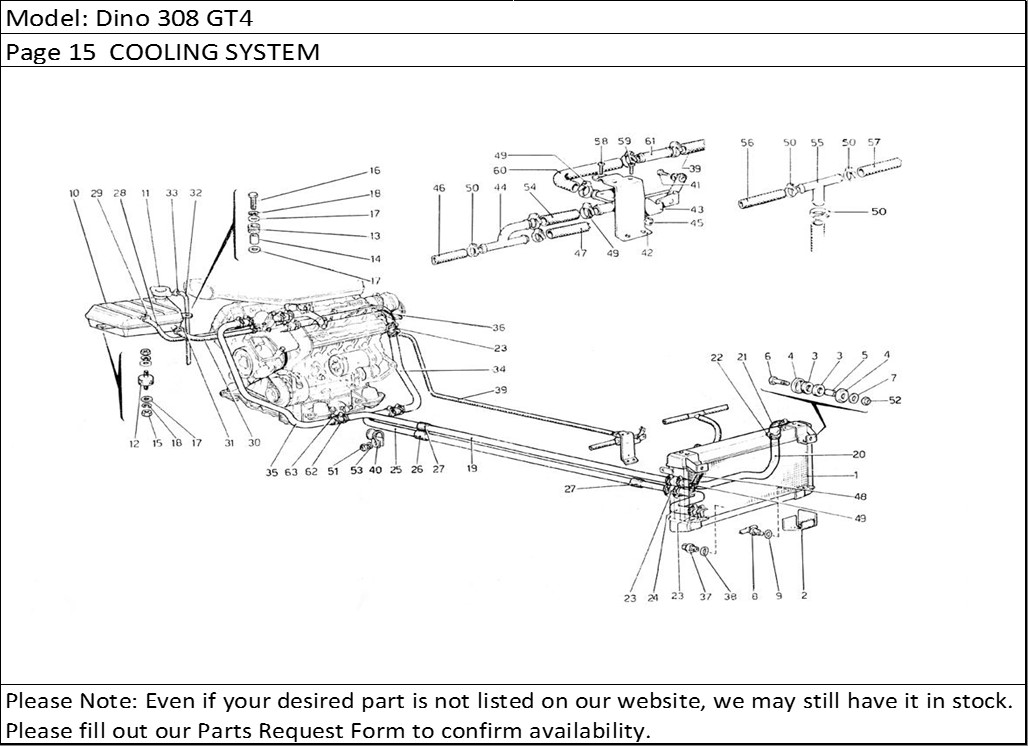

Dino 308 GT4 Page 15 COOLING SYSTEM
Product Description
Dino 308 GT4 Page 15 COOLING SYSTEM
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| - | 100507 | Fascetta | 8 |
| 1 | 107759 | Radiiitore acquaNon vale per USA - AUS - J e tiopico | 1 |
| 2 | 107782 | Spessore gomma antivibrante | 2 |
| 4 | 107979 | Scodellino | 4 |
| 6 | 16043821 | Bullone | 2 |
| 8 | 101188 | Rubinetto scarico acqua | 1 |
| 10 | 106728 | Nourice per radiatore | 1 |
| 12 | 102947 | Supporto anlivibrante | 1 |
| 14 | 103550 | Distanziale | 2 |
| 16 | 16132921 | Vite | 2 |
| 18 | 10516477 | Rondella | 3 |
| 20 | 107521 | Tubo anteriore per mandata al rad.Per GD vale n. 107455 | 1 |
| 21 | 102956 | Manicotto | 1 |
| 23 | 102957 | Manicotto | 5 |
| 25 | 106680 | Tubo centraie per mandataPer GD vale n. 106677 | 1 |
| 26 | 107465 | Manicotto antivibrante | 1 |
| 28 | 106681 | Tubo sfiato colleg. motore-nourice | 1 |
| 30 | 106682 | Tubo alimentazione dalla nourice al motore | 1 |
| 32 | 106683 | Tubo sfiato | 1 |
| 34 | 106690 | Tubo posteriore Sx.Per GD vale n. 107466 | 1 |
| 35 | 108042 | Tubo posteriore Dx.Per GD vale n. 108053 | 1 |
| 36 | 106306 | Tubo fra le teste | 1 |
| 38 | 101508 | Guarnizione | 1 |
| 40 | 107002 | Fascetta | 2 |
| 42 | 110067 | Stafta fissaggio rubinulto | 1 |
| 44 | 109376 | Tre vie sul rubinetto | 1 |
| 46 | 110276 | Tubo al riscaldatore Dx. | 1 |
| 48 | 112493 | Tubo al tre vie | 1 |
| 51 | 12574221 | Dado | 1 |
| 53 | 12643701 | Rondella | 1 |
| 55 | 104303 | Tre vie | 1 |
| 57 | 112492 | Tubo dal riscaldatore Sx. al 3 vie | 1 |
| 59 | 110106 | Vite | 2 |
| 61 | 108501 | Tubetto di giurizione | 1 |
| 63 | 12174090 | Fascetta | 4 |
