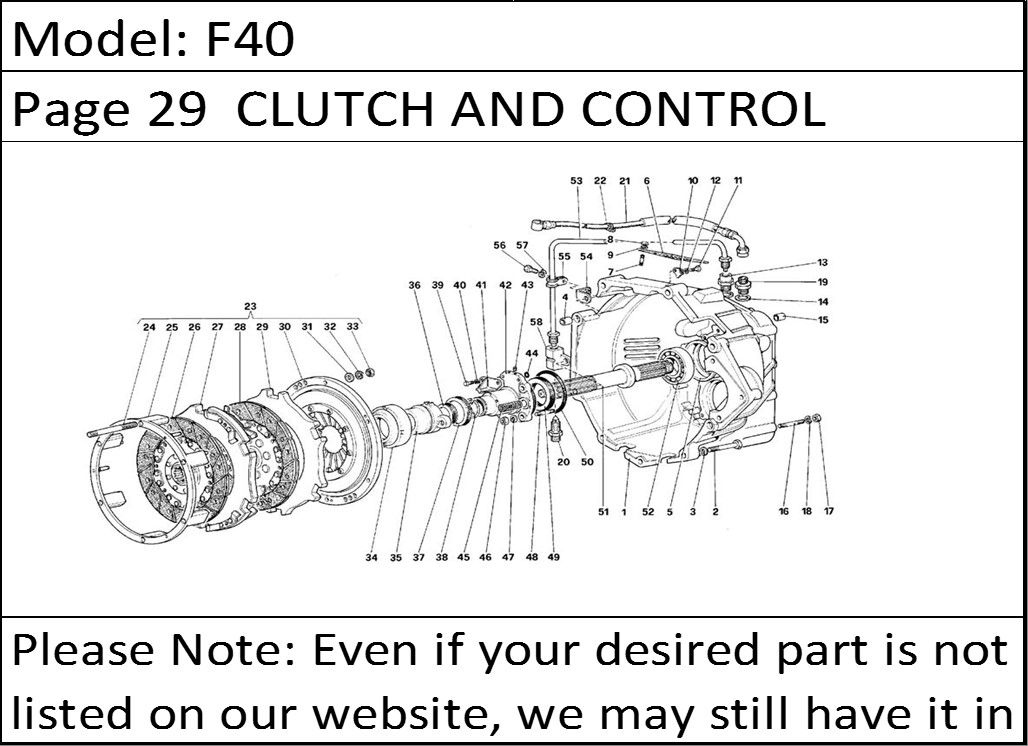

F40 Page 29 CLUTCH AND CONTROL
Product Description
F40 Page 29 CLUTCH AND CONTROL
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| - | 125456 | Clutch housing, compl. | 1 |
| 2 | 16044021 | Screw | 3 |
| 3 | 12601379 | Washer | 3 |
| 4 | 125537 | Dowel | 2 |
| 5 | 121797 | Bush for bearing | 1 |
| 6 | 121806 | Inspection cover | 1 |
| 7 | 11000921 | Stud bolt-Not for USA | 2 |
| 7 | 11000824 | Stud -Q.ty 4 for USA- | 2 |
| 8 | 15896470 | Nut | 4 |
| 9 | 12601174 | Washer | 4 |
| 10 | 114603 | Timing ref. bracket | 1 |
| 11 | 10977624 | Screw | 2 |
| 12 | 127493 | Washer | 2 |
| 13 | 148604 | Fitting | 1 |
| 14 | 10257060 | Gasket | 2 |
| 15 | 123865 | Dowel | 2 |
| 16 | 13543424 | Stud | 12 |
| 17 | 16100821 | Nut | 12 |
| 18 | 12601379 | Washer | 12 |
| 19 | 136568 | Union | 1 |
| 20 | 121699 | Bleed screw | 1 |
| 21 | 144259 | Flexible hose | 1 |
| 22 | 123478 | Clamp | 1 |
| 23 | 136807 | Clutch ? 8 1/2 compl. | 1 |
| 24 | 13544231 | Stud | 6 |
| 25 | 136813 | Spacer (supplied only with unit 136807) | 1 |
| 26 | 136811 | Clutch disc | 1 |
| 27 | 136809 | Ring (supplied only with unit 136807) | 1 |
| 28 | 136812 | Clutch disc | 1 |
| 29 | 136808 | Pad (supplied only with unit 136807) | 1 |
| 30 | 136810 | Cover (supplied only with unit 136807) | 1 |
| 31 | 10519624 | Washer | 6 |
| 32 | 127496 | Washer | 6 |
| 33 | 16100821 | Nut | 6 |
| 34 | 70000568 | Thrust bearing | 1 |
| 35 | 123359 | Bush for bearing | 1 |
| 36 | 139440 | Sealing ring | 1 |
| 37 | 139439 | Sealing ring -Valid after depletion of 124674 | 1 |
| 38 | 123110 | Safety ring | 1 |
| 39 | 10977521 | Screw | 2 |
| 40 | 127493 | Washer | 2 |
| 41 | 123696 | Plate | 1 |
| 42 | 123360 | Sleeve for bush | 1 |
| 43 | 65928500 | Plug | 2 |
| 44 | 121813 | Sealing ring | 2 |
| 45 | 121717 | Pre load spring | 2 |
| 46 | 16100821 | Nut | 4 |
| 47 | 127496 | Washer | 4 |
| 48 | 13516621 | Stud | 4 |
| 49 | 138680 | Sealing ring | 1 |
| 50 | 121814 | Sealing ring | 1 |
| 51 | 123689 | Clutch shaft | 1 |
| 52 | 125499 | Bearing (as option n. 137180) | 1 |
| 53 | 149576 | Pipe | 1 |
| 54 | 149577 | Bracket | 1 |
| 55 | 10441290 | Bracket with | 1 |
| 56 | 10902011 | Screw | 1 |
| 57 | 106850 | Washer | 1 |
| 58 | 139921 | Block | 1 |
