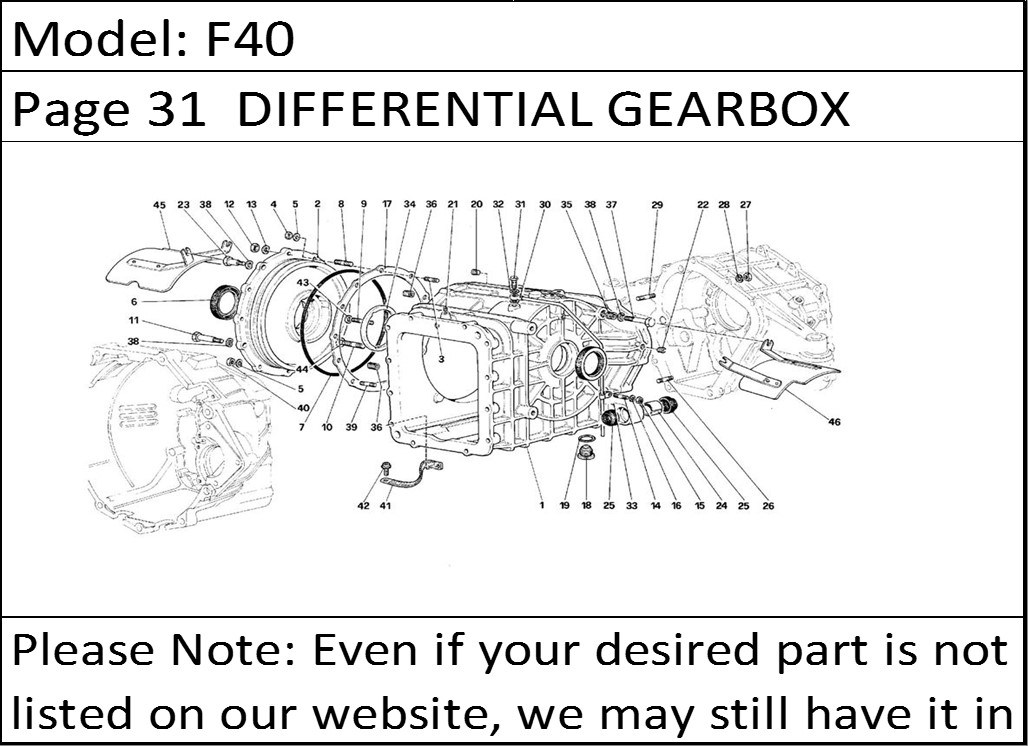

F40 Page 31 DIFFERENTIAL GEARBOX
Product Description
F40 Page 31 DIFFERENTIAL GEARBOX
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 122719 | Differential housing | 1 |
| 2 | 121606 | Lateral cover | 1 |
| 3 | 13543424 | Stud | 5 |
| 4 | 16100821 | Nut | 6 |
| 5 | 12601379 | Washer | 7 |
| 6 | 125076 | Sealing ring | 2 |
| 7 | 122153 | Sealing ring | 1 |
| 8 | 13449624 | Stud | 1 |
| 9 | 13543721 | Stud | 1 |
| 10 | 13546621 | Stud | 1 |
| 11 | 126289 | Screw | 1 |
| 12 | 133988 | Nut | 2 |
| 13 | 127497 | Washer | 1 |
| 14 | 11500020 | Stud | 1 |
| 15 | 15896214 | Nut | 1 |
| 16 | 12601279 | Washer | 1 |
| 17 | 122048 | Ditto, thickness mm. 2,9 | |
| 17 | 122047 | Ditto, thickness mm. 2,7 | |
| 17 | 122045 | Ditto, thickness mm. 3,1 | |
| 17 | 122044 | Spacer for differential cover thickness mm. 2,5 (eventual use) | 1 |
| 17 | 122046 | Ditto, thickness mm. 3,3 | |
| 18 | 104280 | Plug | 1 |
| 19 | 10263460 | Gasket | 1 |
| 20 | 14326050 | Plug | 2 |
| 21 | 65928500 | Plug | 5 |
| 22 | 14326001 | Plug | 1 |
| 23 | 126290 | Screw | 1 |
| 24 | 117812 | Bush | 1 |
| 25 | 121929 | Ring | 2 |
| 26 | 13543524 | Stud | 9 |
| 27 | 16100821 | Nut | 12 |
| 28 | 12601379 | Washer | 12 |
| 29 | 13543624 | Stud | 3 |
| 30 | 122773 | Tube | 1 |
| 31 | 113664 | Brether | 1 |
| 32 | 14330260 | Gasket | 2 |
| 33 | 10116501 | Clamp | 1 |
| 34 | 122071 | Ditto, thickness mm. 3,20 | |
| 34 | 122070 | Ditto, thickness mm. 3 | |
| 34 | 138134 | Ditto, thickness mm. 2,60 | |
| 34 | 122069 | Ditto, thickness mm. 3,60 | |
| 34 | 122067 | Spacer for differential bearing thickness mm. 2,80 (eventual use) | 1 |
| 34 | 122068 | Ditto, thickness mm. 3,40 | |
| 35 | 13526070 | Heli-coil -For part. 37- | 3 |
| 36 | 13525870 | Heli-coil -For part. 11 and 23- | 2 |
| 37 | 11234721 | Screw | 3 |
| 38 | 127497 | Washer | 5 |
| 39 | 13543524 | Stud | 2 |
| 40 | 16102314 | Nut | 2 |
| 41 | 155073 | Cable | 1 |
| 42 | 16296421 | Screw | 1 |
| 43 | 12646724 | Washer | 1 |
| 44 | 14496621 | Washer | 1 |
| 45 | 142522 | R.H. protection | 1 |
| 46 | 142523 | L.H. protection -Not for cars with catalyst | 1 |
| 46 | 142820 | L.H. protection -Valid for cars with catalyst | 1 |
