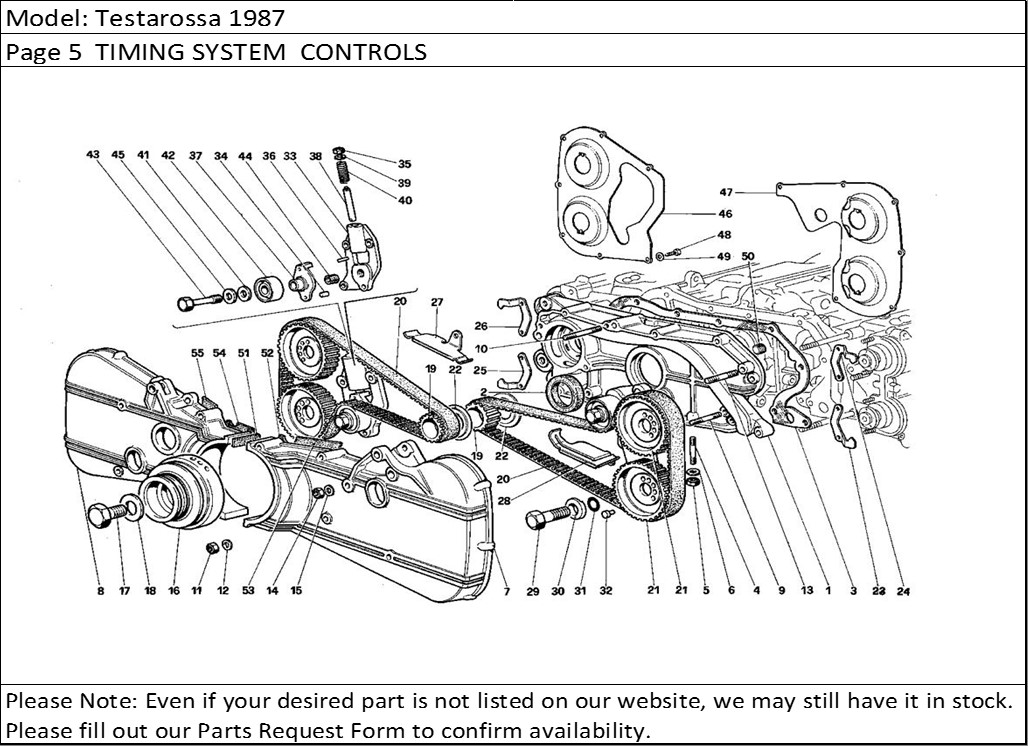

Testarossa 1987 Page 5 TIMING SYSTEM CONTROLS
Product Description
Testarossa 1987 Page 5 TIMING SYSTEM CONTROLS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 121433 | Front cover, completeWith complete crankcase | 1 |
| 1 | 122171 | Front coverNot available as spare part | 1 |
| 2 | 121094 | Seal ring | 1 |
| 3 | 122172 | Gasket | 1 |
| 4 | 13449621 | Stud | 3 |
| 5 | 12575621 | Nut | 3 |
| 6 | 12601471 | Washer | 1 |
| 7 | 126068 | L.H. cover | 1 |
| 8 | 125778 | R.H. cover | 1 |
| 9 | 13544421 | Stud For A1 | 1 |
| 10 | 13544321 | Stud For A1 q.ty = 2 | 3 |
| 11 | 101139 | Nut | 3 |
| 12 | 12601371 | Washer | 3 |
| 13 | 13450421 | Stud | 1 |
| 14 | 12575611 | Nut | 1 |
| 15 | 12601471 | Washer | 1 |
| 16 | 125194 | DamperFor A1, starting engine no. 456, US - CH - SA - B1 | 1 |
| 16 | 122955 | Damper For A1 until engine no. 455 | 1 |
| 17 | 100476 | Screw | 1 |
| 18 | 102775 | Washer | 1 |
| 19 | 123112 | Belt control gear | 2 |
| 20 | 120731 | Timing belt | 2 |
| 21 | 123108 | Timing belt pulley | 4 |
| 22 | 120733 | Timing belt lock ring | 2 |
| 23 | 125309 | Timing mark plate L.H. exhaust, for A1 (Until engine No. 304) | 1 |
| 24 | 125310 | Timing mark plate L.H. intake, for A1 (Until engine no. 304) | 1 |
| 25 | 125176 | Timing mark plate R.H. exhaust, for A1 (Until engine no. 304) | 1 |
| 26 | 125177 | Timing mark plate R.H. intake, for A1 (Until engine no. 304) | 1 |
| 27 | 125248 | R.H. belt protection plateFor A1 (Until engine no. 181) | 1 |
| 28 | 125249 | LH. belt protection plateFor A1 (Until engine no. 181) | 1 |
| 29 | 16326431 | Screw | 4 |
| 30 | 114802 | Gear retaining washer | 4 |
| 31 | 114808 | Garter spring | 4 |
| 32 | 114803 | Drive pin | 4 |
| 33 | 121044 | Dowel | 2 |
| 34 | 125717 | Dowel | 2 |
| 35 | 102948 | Self-locking nut | 2 |
| 36 | 13933570 | Spring pin | 2 |
| 37 | 121045 | Belt stretcher support plate | 2 |
| 38 | 121047 | Spring control pin | 2 |
| 39 | 121558 | Spring retaining washer | 2 |
| 40 | 121249 | Spring | 2 |
| 41 | 111460 | Spacer | 2 |
| 42 | 116750 | Belt stretcher bearing | 2 |
| 43 | 111458 | Screw | 2 |
| 44 | 13524670 | Heli-coil | 2 |
| 45 | 102824 | Washer | 2 |
| 46 | 123705 | R.H. belt protection plateFor A1 (Starting engine no. 305), US-CH-SA-B1 | 1 |
| 47 | 123706 | LH. belt protection plateFor A1 (Starting engine no. 305), US-CH-SA-B1 | 11 |
| 48 | 10977711 | Screw | 13 |
| 49 | 12601171 | Washer | 13 |
| 50 | 127635 | Plug | 1 |
| 51 | 128029 | Protection | 1 |
| 52 | 128030 | Protection | 1 |
| 53 | 128031 | Protection | 1 |
| 54 | 128032 | Protection | 1 |
| 55 | 128033 | Protection | 1 |
