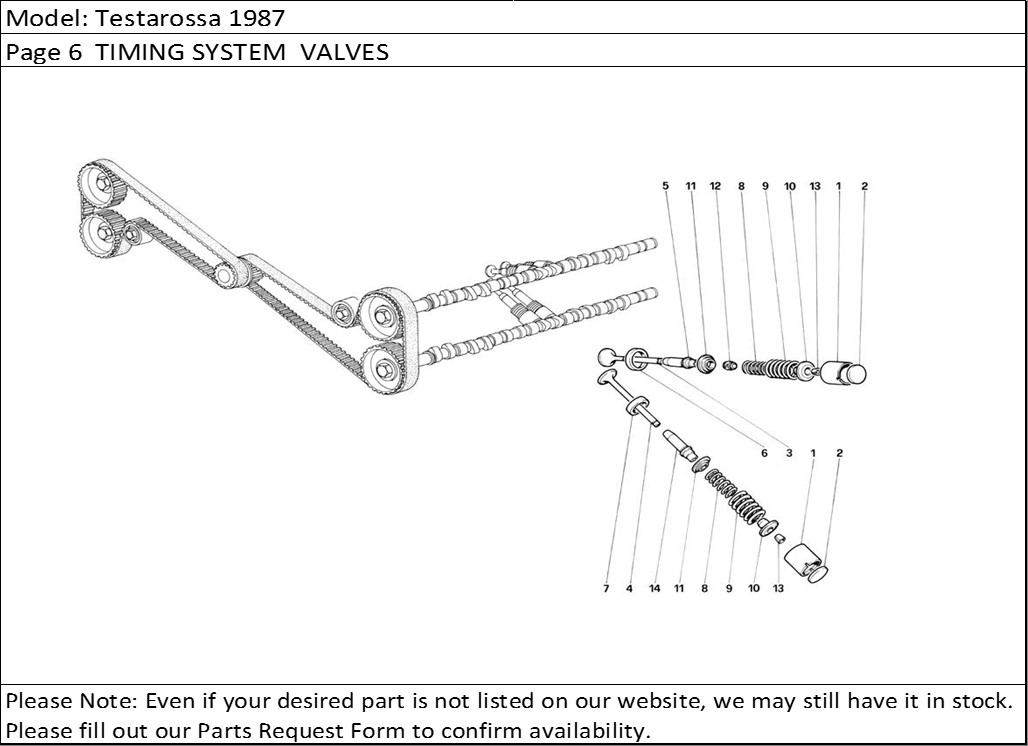

Testarossa 1987 Page 6 TIMING SYSTEM VALVES
Product Description
Testarossa 1987 Page 6 TIMING SYSTEM VALVES
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 117562 | Tappet for valve control | 48 |
| 2 | 117589 | Ditto, thickness 4.25 mm. | 1 |
| 2 | 117575 | Ditto, thickness 3.55 mm. | 1 |
| 2 | 117573 | Ditto, thickness 3.45 mm. | 1 |
| 2 | 117571 | Ditto, thickness 3.35 mm. | 1 |
| 2 | 117587 | Ditto, thickness 4.15 mm. | 1 |
| 2 | 117585 | Ditto, thickness 4.05 mm. | 1 |
| 2 | 117584 | Ditto, thickness 4.00 mm. | 1 |
| 2 | 117582 | Ditto, thickness 3.90 mm. | 1 |
| 2 | 117570 | Ditto, thickness 3.30 mm. | 1 |
| 2 | 117572 | Ditto, thickness 3.40 mm. | 1 |
| 2 | 117574 | Ditto, thickness 3.50 mm. | 1 |
| 2 | 117576 | Ditto, thickness 3.60 mm. | 1 |
| 2 | 117578 | Ditto, thickness 3.70 mm. | 1 |
| 2 | 117577 | Ditto, thickness 3.65 mm. | 1 |
| 2 | 117579 | Ditto, thickness 3.75 mm. | 1 |
| 2 | 117581 | Ditto, thickness 3.85 mm. | 1 |
| 2 | 117596 | Ditto, thickness 4.60 mm. | 1 |
| 2 | 117594 | Ditto, thickness 4.50 mm. | 1 |
| 2 | 117592 | Ditto, thickness 4.40 mm. | 1 |
| 2 | 117593 | Ditto, thickness 4.45 mm. | 1 |
| 2 | 117590 | Ditto, thickness 4.30 mm. | 1 |
| 2 | 117580 | Ditto, thickness 3.80 mm. | 1 |
| 2 | 117569 | Shim for valve adjustment, thickness 3.25mm. | 48 |
| 2 | 117595 | Ditto, thickness 4.55 mm. | 1 |
| 2 | 117588 | Ditto, thickness 4.20 mm. | 1 |
| 2 | 117591 | Ditto, thickness 4.35 mm. | 1 |
| 2 | 117586 | Ditto, thickness 4.10 mm. | 1 |
| 2 | 117583 | Ditto, thickness 3.95 mm. | 1 |
| 3 | 120476 | Intake valve | 24 |
| 4 | 120477 | Exhaust valve | 24 |
| 5 | 117565 | Intake valve guide | 24 |
| 5 | 117566 | Intake valve guide overized by 0.2mm. | 24 |
| 6 | 120478 | Intake valve seat If out of stock use PN. 126212 | 24 |
| 7 | 120479 | Exhaust valve seat | 24 |
| 8 | 117558 | Valve return inner spring | 48 |
| 9 | 117559 | Valve return outer spring | 48 |
| 10 | 117567 | Spring retaining upper cup | 48 |
| 11 | 117568 | Spring retaining lower cup | 48 |
| 12 | 119051 | Oil seal for valves guideFor B1 - US - CH - SA | 48 |
| 12 | 119051 | Oil seal on intake valve guideFor A1 | 24 |
| 13 | 117283 | Cotter for valve spring cup | 96 |
| 14 | 117566 | Exhaust valve guide oversized by 0.2 mm. Not for A1 | 24 |
| 14 | 123075 | Exhaust valve guideFor A1 | 24 |
| 14 | 123076 | Exhaust valve guide oversized by 0.2 mm. For A1 | 24 |
| 14 | 117565 | Exhaust valve guideNot for A1 | 24 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
