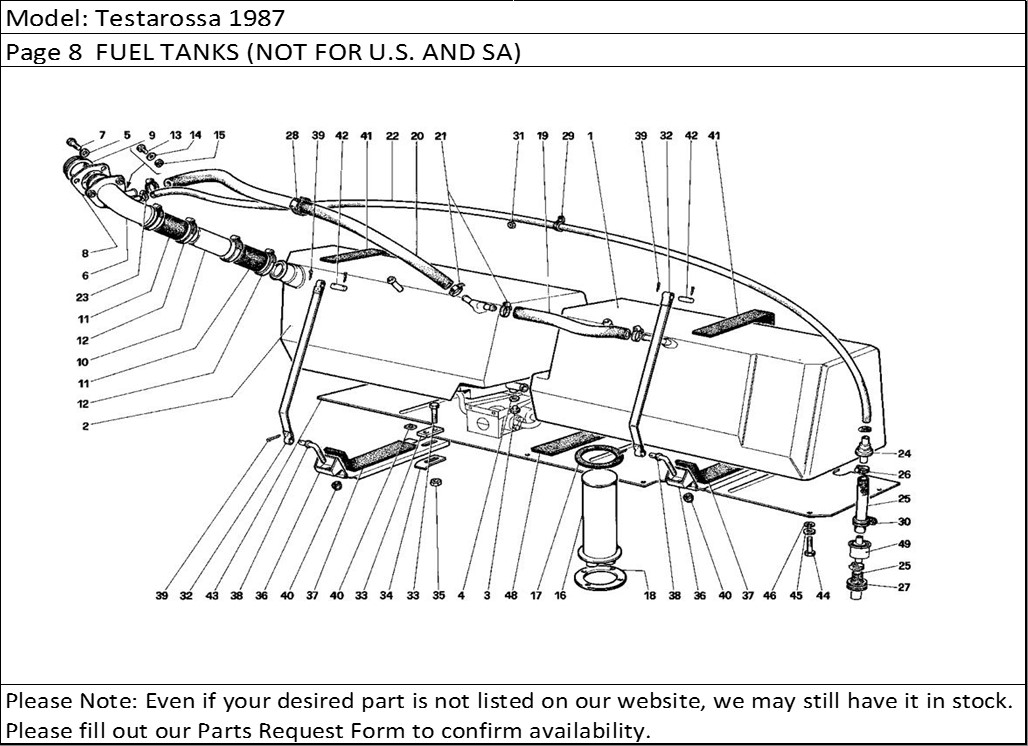

Testarossa 1987 Page 8 FUEL TANKS (NOT FOR U.S. AND SA)
Product Description
Testarossa 1987 Page 8 FUEL TANKS (NOT FOR U.S. AND SA)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 119139 | Right fuel tank | 1 |
| 2 | 119140 | Left fuel tank | 1 |
| 3 | 10300771 | Fuel drain plug | 1 |
| 4 | 10278650 | Gasket | 1 |
| 5 | 12601271 | Washer | 3 |
| 6 | 122793 | Fuel filler Not for S7, after exhaustion use PN. 129527 | 1 |
| 6 | 132285 | Fuel filler For S7 | 1 |
| 7 | 14064511 | Screw | 3 |
| 8 | 123897 | Gasket | 1 |
| 9 | 113401 | Filler cap | 1 |
| 10 | 122795 | Pipe | 1 |
| 11 | 115677 | Sleeve | 2 |
| 12 | 12174790 | Clamp | 4 |
| 13 | 10902221 | Screw | 1 |
| 14 | 12574211 | Nut | 1 |
| 15 | 12746601 | Washer | 1 |
| 16 | 122621 | Control for fuel level gaugeUntil car no. 67545 | 1 |
| 16 | 132134 | Control for fuel level gaugeFrom car no. 67547 | 1 |
| 17 | 132132 | Gasket With part no. 132134 | 1 |
| 17 | 116792 | GasketWith part no. 122621 | 1 |
| 18 | 121435 | Gauge securing ring nut | 1 |
| 19 | 125032 | Breather hose | 1 |
| 20 | 120469 | Breather hose | 1 |
| 21 | 12179590 | Clamp | 4 |
| 22 | 116851 | Breather hose | 1 |
| 23 | 12179090 | Clamp | 1 |
| 24 | 120444 | Tank ventilation valve | 1 |
| 25 | 116760 | Breather hose | 2 |
| 26 | 12179490 | Clamp | 4 |
| 27 | 10396580 | Wire guide | 1 |
| 28 | 105550 | Colson type clamp | 1 |
| 29 | 10441290 | Hose retaining clamp | 4 |
| 30 | 10441490 | Hose retaining clamp | 4 |
| 31 | 12574211 | Nut | 3 |
| 32 | 122797 | Tank securing strap | 4 |
| 33 | 123867 | Spacer | 4 |
| 34 | 115734 | Small plate | 4 |
| 35 | 12574211 | Self-locking nut | 8 |
| 36 | 123866 | Tank supporting bracket | 4 |
| 37 | 125035 | Shim | 4 |
| 38 | 127529 | Tie rod | 4 |
| 39 | 10796401 | Split pin | 12 |
| 40 | 16104121 | Self-locking nut | 4 |
| 41 | 125036 | Shim | 8 |
| 42 | 103447 | Pin | 4 |
| 43 | 122800 | Tank protection plate For RHD use PN 124067 | 1 |
| 44 | 10902121 | Screw | 11 |
| 45 | 12643701 | Flat washer | 11 |
| 46 | 106850 | Spring washer | 11 |
| 47 | 60659100 | Gaged nut | 4 |
| 48 | 125037 | Shim | 4 |
| 49 | 129085 | Silencer | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
