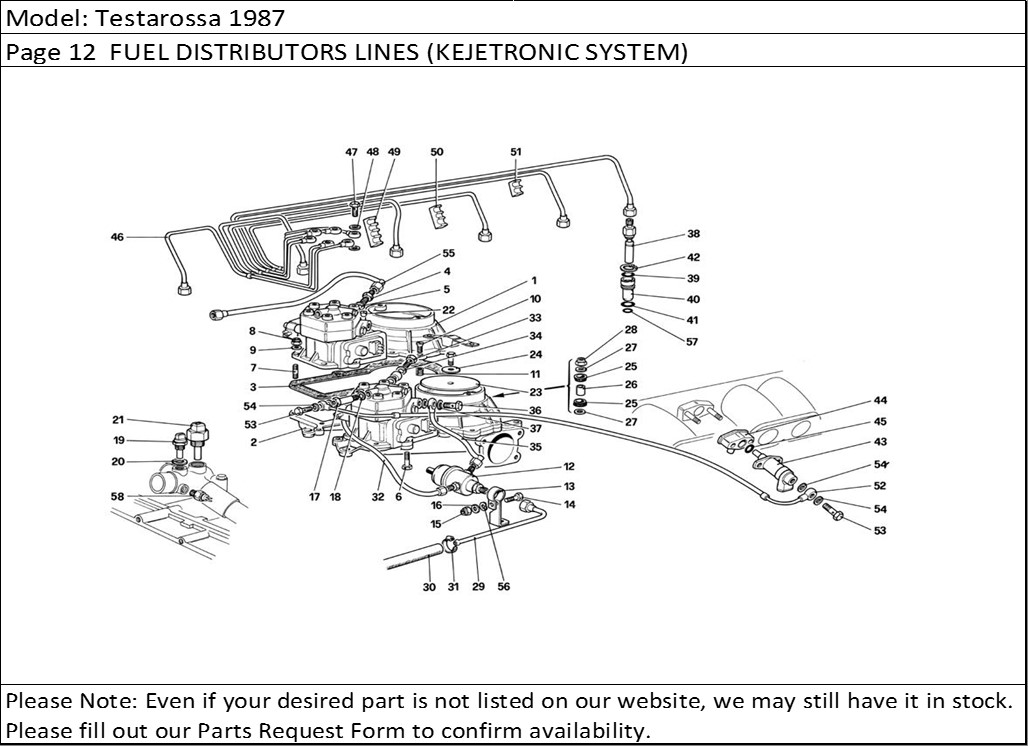

Testarossa 1987 Page 12 FUEL DISTRIBUTORS LINES (KEJETRONIC SYSTEM)
Product Description
Testarossa 1987 Page 12 FUEL DISTRIBUTORS LINES (KEJETRONIC SYSTEM)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 121694 | Support for metering devices, compl. | 1 |
| 1 | 123411 | Metering device | 2 |
| 2 | 123068 | Support for metering devicesWith assy. P.N. 121694 | 1 |
| 3 | 121568 | Gasket | 1 |
| 4 | 115498 | Union with filter | 2 |
| 5 | 11270160 | Gasket | 2 |
| 6 | 10902521 | Bolt | 4 |
| 7 | 13540921 | Stud | 8 |
| 8 | 12575421 | Selflocking nut | 12 |
| 9 | 12601271 | Washer | 12 |
| 10 | 14441321 | Screw | 8 |
| 11 | 13525470 | Heli-coil | 8 |
| 12 | 125136 | Pressure regulator | 2 |
| 13 | 125770 | Pressure regulator support | 2 |
| 14 | 10902421 | Bolt | 2 |
| 15 | 12574221 | Selflocking nut | 2 |
| 16 | 12604271 | Washer | 2 |
| 17 | 113660 | Fitting | 2 |
| 18 | 14330260 | Washer | 2 |
| 19 | 121720 | Water temperature sensor | 1 |
| 20 | 10298460 | Gasket | 1 |
| 21 | 118790 | Thermo time switch | 1 |
| 22 | 117242 | Cap for idling adjusting screw | 2 |
| 23 | 124408 | Air sensor plate | 2 |
| 24 | 120809 | Supporting washer | 2 |
| 25 | 123134 | Pad | 8 |
| 26 | 123135 | Distance tube | 4 |
| 27 | 106744 | Washer | 8 |
| 28 | 12574211 | Nut | 4 |
| 29 | 125876 | R.H. return pipe | 1 |
| 29 | 125846 | L.H. return pipe | 1 |
| 30 | 116769 | L.H. pipe | 1 |
| 30 | 114882 | R.H. pipe | 1 |
| 31 | 12179490 | Clamp | 4 |
| 32 | 125775 | Delivery pipe | 1 |
| 32 | 125774 | Delivery pipe | 1 |
| 33 | 111644 | Fitting | 2 |
| 34 | 10296160 | Gasket | 4 |
| 35 | 125829 | Retunr pipe | 1 |
| 35 | 125830 | Return pipe | 1 |
| 36 | 113670 | Fitting | 2 |
| 37 | 10260160 | Gasket | 4 |
| 38 | 113975 | Injector | 12 |
| 39 | 113570 | Seal ring | 12 |
| 40 | 123936 | Injector holding bush | 12 |
| 41 | 101031 | Garter ring | 12 |
| 42 | 103326 | Stop ring | 12 |
| 43 | 113979 | Cold start injector | 2 |
| 44 | 121056 | Injector connecting union | 2 |
| 45 | 103039 | Seal ring | 2 |
| 46 | 125797 | Shaped fuel from metering device to injector of no. 10 cylinder | 1 |
| 46 | 125795 | Shaped fuel from metering device to injector of no. 8 cylinder | 1 |
| 46 | 125788 | Shaped fuel from metering device to injector of no. 1 cylinder | 1 |
| 46 | 125798 | Shaped fuel from metering device to injector of no. 11 cylinder | 1 |
| 46 | 125789 | Shaped fuel from metering device to injector of no. 2 cylinder | 1 |
| 46 | 125796 | Shaped fuel from metering device to injector of no. 9 cylinder | 1 |
| 46 | 125792 | Shaped fuel from metering device to injector of no. 5 cylinder | 1 |
| 46 | 125793 | Shaped fuel from metering device to injector of no. 6 cylinder | 1 |
| 46 | 125790 | Shaped fuel from metering device to njector oj no. 3 cylinder | 1 |
| 46 | 125791 | Shaped fuel from metering device to injector of no. 4 cylinder | 1 |
| 46 | 125799 | Shaped fuel from metering device to injector of no. 12 cylinder | 1 |
| 47 | 113670 | Union | 12 |
| 48 | 10260170 | Copper washer | 24 |
| 49 | 115595 | 4-way pipe supporting clamp | 2 |
| 50 | 113896 | 3-way pipe supporting clamp | 11 |
| 51 | 117279 | 2-way pipe supporting clamp | 2 |
| 52 | 125879 | Shaped fuel pipe for R.H. cold start | 1 |
| 52 | 125884 | Shaped fuel pipe for L.H. cold start | 1 |
| 53 | 113664 | Union | 4 |
| 54 | 14330260 | Gasket | 8 |
| 55 | 123791 | Pipe connecting filter to left metering | 1 |
| 55 | 123790 | Pipe connecting filter to right metering | 1 |
| 56 | 12601371 | Washer | 2 |
| 57 | 101030 | Garter ring | 12 |
| 58 | 125878 | Bimetallic thermoswitch | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
