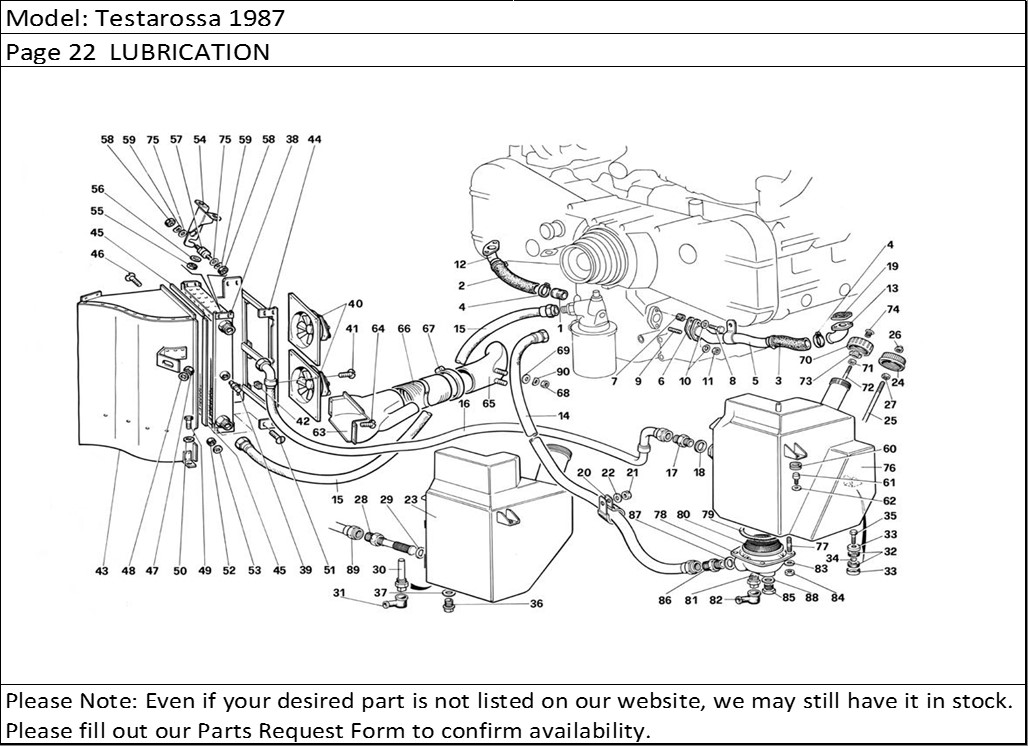

Testarossa 1987 Page 22 LUBRICATION
Product Description
Testarossa 1987 Page 22 LUBRICATION
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 104561 | Union | 1 |
| 2 | 122828 | Sleeve | 1 |
| 3 | 122829 | Sleeve | 1 |
| 4 | 12173090 | Clamp | 4 |
| 5 | 125900 | L.H. cyl. head oil exhaust pipe | 1 |
| 6 | 104558 | Gasket | 1 |
| 7 | 13525570 | Heli-coil on gearbox casing | 1 |
| 8 | 10902321 | Screw | 1 |
| 9 | 11500221 | Stud | 1 |
| 10 | 10516471 | Washer | 2 |
| 11 | 15896221 | Nut | 1 |
| 12 | 122826 | R.H. cy!. head oil exhaust port | 1 |
| 13 | 122827 | L.H. cyl. head oil exhaust port | 1 |
| 14 | 124168 | Hose, from reservoir fo pump | 1 |
| 15 | 124169 | Hose from pump to radiator | 1 |
| 16 | 124170 | Hose from radiator to reservoirFor reservoir no. 122860 | 1 |
| 16 | 125903 | Hose from radiator to reservoirFor reservoir no. 125517 | 1 |
| 17 | 109371 | Union | 1 |
| 18 | 10264660 | Gasket | 1 |
| 19 | 122823 | Gasket | 2 |
| 20 | 106195 | Clamp | 2 |
| 21 | 12574211 | Nut | 1 |
| 22 | 14496401 | Washer | 1 |
| 23 | 122860 | Oil reservoir Not for US - CH - SA | 1 |
| 24 | 109719 | Oil filler cap Until exhausted | 1 |
| 25 | 124257 | Oil dip stickFor cap 109719 | 1 |
| 26 | 100044 | Cap nut For cap 109719 | 1 |
| 27 | 15896211 | NutFor cap 169719 | 1 |
| 28 | 122868 | Filter on oil intake dust | 1 |
| 29 | 109649 | Seal ring | 1 |
| 30 | 107576 | Oil thermistor | 1 |
| 31 | 107003 | Protection cap | 1 |
| 32 | 107978 | Rubber bushing | 4 |
| 33 | 107979 | Cup | 4 |
| 34 | 107980 | Distance bushing | 2 |
| 35 | 123029 | Screw | 2 |
| 36 | 10305171 | Plug | 1 |
| 37 | 10263460 | Gasket | 1 |
| 38 | 123276 | Oil radiator | 1 |
| 39 | 123277 | Thermal switch for fan | 1 |
| 40 | 122961 | Electric fanNot for B1 - U7 - C7 - S7 | 2 |
| 40 | 131510 | Electric fanPer B1 U7 - C7 - S7 | 2 |
| 41 | 15688078 | Screw | 8 |
| 42 | 60674700 | Clip | 8 |
| 43 | 124181 | Electric fan hood | 1 |
| 44 | 124180 | Air conveyor | 1 |
| 45 | 124200 | Self-adhesive gasket | 4 |
| 46 | 15888078 | Screw | 2 |
| 47 | 15896221 | Nut | 1 |
| 48 | 106850 | Washer | 1 |
| 49 | 10902321 | Screw | 1 |
| 50 | 106850 | Washer | 1 |
| 51 | 10902121 | Screw | 1 |
| 52 | 15896221 | Nut | 1 |
| 53 | 106850 | Washer | 1 |
| 54 | 123805 | Radiator fastening upper bracket | 1 |
| 55 | 12574221 | Nut | 2 |
| 56 | 12643701 | Washer | 2 |
| 57 | 102947 | Vibration-damping pad | 3 |
| 58 | 15896221 | Nut | 6 |
| 59 | 106850 | Washer | 6 |
| 60 | 10397480 | Wire carrier | 1 |
| 61 | 125708 | Pin | 1 |
| 62 | 108242 | Washer | 1 |
| 63 | 124191 | R.H. conveyor for brakes | 1 |
| 63 | 124192 | R.H. conveyor for brakes | 2 |
| 64 | 15688007 | Screw | 3 |
| 65 | 124943 | Rear conveyor | 2 |
| 66 | 124941 | L.H. hose | 1 |
| 66 | 124940 | R.H. hose | 1 |
| 67 | 12174990 | Clamp | 4 |
| 68 | 15896221 | Nut | 4 |
| 69 | 106850 | Washer | 4 |
| 70 | 126141 | Cap On exhaustion PN 109719 | 1 |
| 71 | 15896211 | Nut For cap 126141 | 1 |
| 72 | 124691 | Oil dip stick For oil reservoir 125517 | 1 |
| 72 | 126144 | Oii dip stick For cap 126141, for oil reservoir PN. 122860 | 1 |
| 73 | 101242 | Ring nut For cap 126141 | 1 |
| 74 | 126142 | Screw For cap 126141 | 1 |
| 75 | 12643701 | Washer | 8 |
| 76 | 125517 | Oil reservoir For US - CH - SA and for every car from 1 - 9 -85 | 1 |
| 77 | 11500421 | Stud | 1 |
| 78 | 125473 | Oil suction pan | 1 |
| 79 | 125521 | OR-ring | 1 |
| 80 | 100332 | Oil suction filter | 1 |
| 81 | 104628 | Oil thermistor | 1 |
| 82 | 104628 | Protection cap | 1 |
| 83 | 12601271 | Nut | 4 |
| 84 | 12574211 | Washer | 4 |
| 85 | 10300711 | Cap | 1 |
| 86 | 110203 | Nipple | 1 |
| 87 | 10303460 | Gasket | 1 |
| 88 | 10257060 | Gasket | 1 |
| 89 | 125475 | Hose from reservoir the pump | 1 |
| 90 | 12643701 | Washer | 4 |
