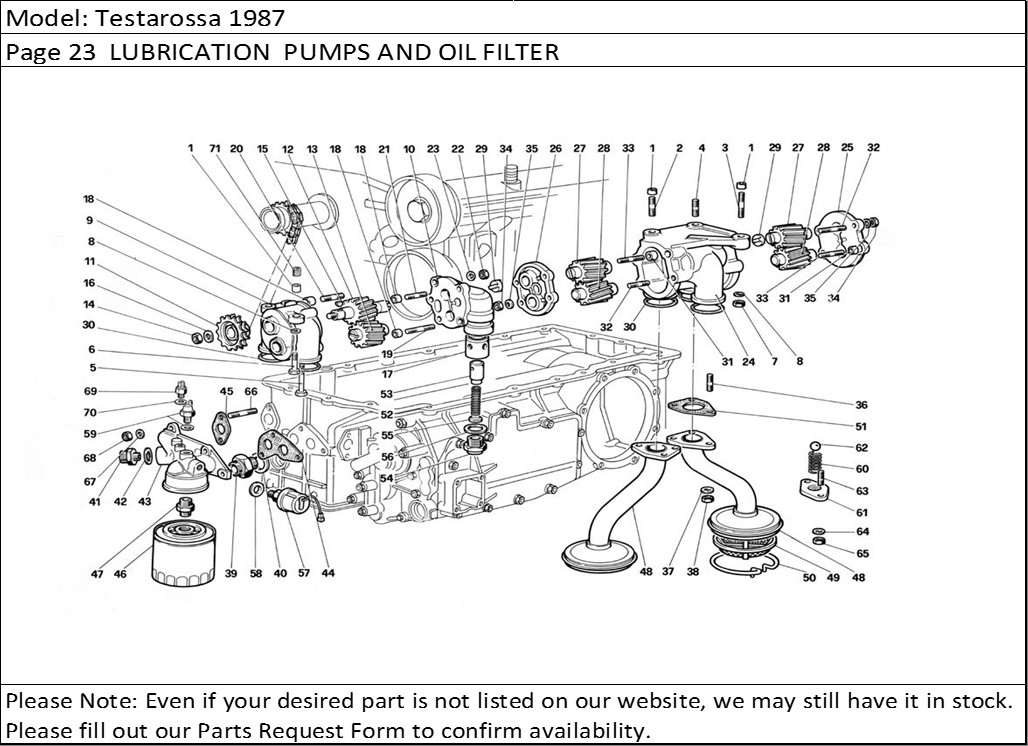

Testarossa 1987 Page 23 LUBRICATION PUMPS AND OIL FILTER
Product Description
Testarossa 1987 Page 23 LUBRICATION PUMPS AND OIL FILTER
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 102704 | Dowel | 4 |
| 2 | 13517221 | Stud | 1 |
| 3 | 13543621 | Stud | 1 |
| 4 | 13543321 | Stud | 1 |
| 5 | 16043821 | Bolt | 2 |
| 6 | 16043621 | Bolt | 1 |
| 7 | 16100821 | Nut | 6 |
| 8 | 11198071 | Washer | 6 |
| 9 | 121059 | Body of oil delivery pump | 1 |
| 10 | 121060 | Cover of oil delibery pump | 1 |
| 11 | 121058 | Oil pump control gear | 1 |
| 12 | 120940 | Driving gear | 1 |
| 13 | 121057 | Driven gear | 1 |
| 14 | 121532 | Nut | 1 |
| 15 | 10205820 | Feather key | 1 |
| 16 | 12601471 | Washer | 1 |
| 17 | 125321 | Centering bush Not spare | 1 |
| 18 | 102725 | Dowel | 2 |
| 19 | 11501421 | Stud | 1 |
| 20 | 11500521 | Stud | 1 |
| 21 | 11500321 | Stud | 3 |
| 22 | 15896211 | Nut | 5 |
| 23 | 11197771 | Washer | 5 |
| 24 | 120560 | Body of oil scavenge pump | 1 |
| 25 | 121029 | Rear cover | 1 |
| 26 | 121069 | Front cover | 1 |
| 27 | 121062 | Driving gear | 2 |
| 28 | 116056 | Driven gear | 2 |
| 29 | 109309 | Coupling | 2 |
| 30 | 123236 | Seal ring | 5 |
| 31 | 102725 | Dowel | 4 |
| 32 | 11500121 | Stud | 4 |
| 33 | 11500321 | Stud on dowel | 4 |
| 34 | 15896211 | Nut | 8 |
| 35 | 11197771 | Washer | 8 |
| 36 | 13540921 | Stud for oil suction pipe | 6 |
| 37 | 11197771 | Washer | 6 |
| 38 | 15896221 | Nut | 6 |
| 39 | 110203 | Union | 1 |
| 40 | 10303460 | Gasket | 1 |
| 41 | 109371 | Union | 1 |
| 42 | 10264660 | Gasket | 1 |
| 43 | 123187 | Oil filter supportNot for US - CH - SA | 1 |
| 43 | 127127 | Oil filter support For C6 - S6 | 1 |
| 43 | 125824 | Oil filter support For US - C7 - S7 | 1 |
| 44 | 121146 | Gasket | 1 |
| 45 | 121147 | Gasket | 1 |
| 46 | 124228 | Oil filter | 1 |
| 47 | 124229 | Union for filter | 1 |
| 48 | 120917 | Suction pipe for oil scavenge pump | 2 |
| 49 | 100332 | Filter | 2 |
| 50 | 103944 | Circlip | 2 |
| 51 | 103942 | Gasket | 2 |
| 52 | 106900 | Spring for valve | 1 |
| 53 | 125885 | Plunger | 1 |
| 54 | 106237 | Plug | 1 |
| 55 | 131743 | Spacer | 1 |
| 56 | 10264660 | Gasket | 1 |
| 57 | 122592 | Oil pressure transmitter | 1 |
| 58 | 10259960 | Gasket | 1 |
| 59 | 110664 | Switch for oil pressure led | 1 |
| 60 | 109980 | Spring for oil pressure adjusting valve | 1 |
| 61 | 121305 | Flange | 1 |
| 62 | 121306 | Ball | 1 |
| 63 | 13540721 | Stud | 2 |
| 64 | 11197771 | Washer | 2 |
| 65 | 15896221 | Nut | 2 |
| 66 | 12354521 | Stud | 5 |
| 67 | 12601371 | Washer | 5 |
| 68 | 16100821 | Nut | 5 |
| 69 | 125857 | Bimetallic thermoswitchFor US - CH - SA | 1 |
| 70 | 10260050 | Gasket | 1 |
| 71 | 13525770 | Heli-coil | 3 |
