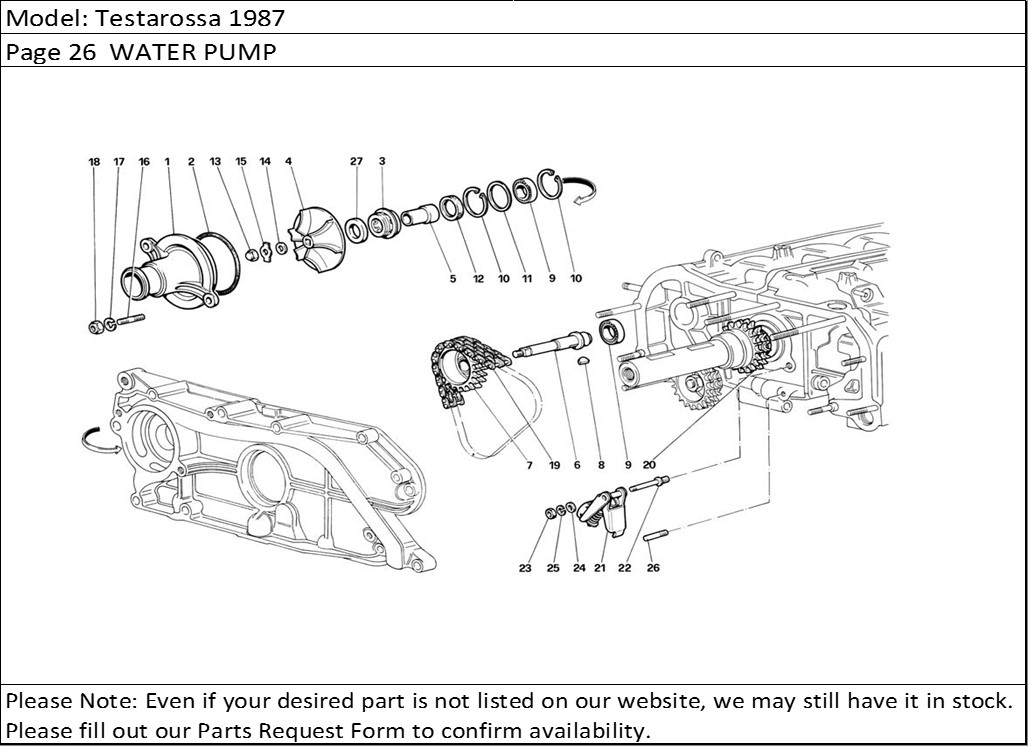

Testarossa 1987 Page 26 WATER PUMP
Product Description
Testarossa 1987 Page 26 WATER PUMP
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 121012 | Water pump cover | 1 |
| 2 | 101023 | Seal ring | 1 |
| 3 | 120948 | Seal ring | 1 |
| 4 | 120770 | Impeller | 1 |
| 5 | 121066 | Spacer | 1 |
| 6 | 121065 | Spindle | 1 |
| 7 | 121064 | Driven gear | 1 |
| 8 | 10202320 | Feather key | 1 |
| 9 | 121145 | Bearing | 2 |
| 10 | 11059476 | Seeger ring | 2 |
| 11 | 121084 | Spring washer | 1 |
| 12 | 121165 | Seal ring | 1 |
| 13 | 100436 | Cap nut | 1 |
| 14 | 10730301 | Washer | 1 |
| 15 | 100434 | Safety plate | 1 |
| 16 | 13541021 | Stud | 2 |
| 17 | 12601271 | Washer | 2 |
| 18 | 102741 | Nut | 2 |
| 19 | 133065 | Water and oil pumps control belt | 1 |
| 20 | 121063 | Water and oil pumps control gear | 1 |
| 21 | 114329 | Belt stretcher | 1 |
| 22 | 121269 | Belt stretcher supporting pin | 1 |
| 23 | 10720121 | Nut | 1 |
| 24 | 10730121 | Tab washer | 1 |
| 25 | 106850 | Washer | 1 |
| 26 | 14604670 | Belt stretcher securing pin | 1 |
| 27 | 121553 | Backplate for ring | 1 |
