Testarossa 1987 Page 30 GEAR BOX MOUNTINGS AND COVERS
Product Description
Testarossa 1987 Page 30 GEAR BOX MOUNTINGS AND COVERS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

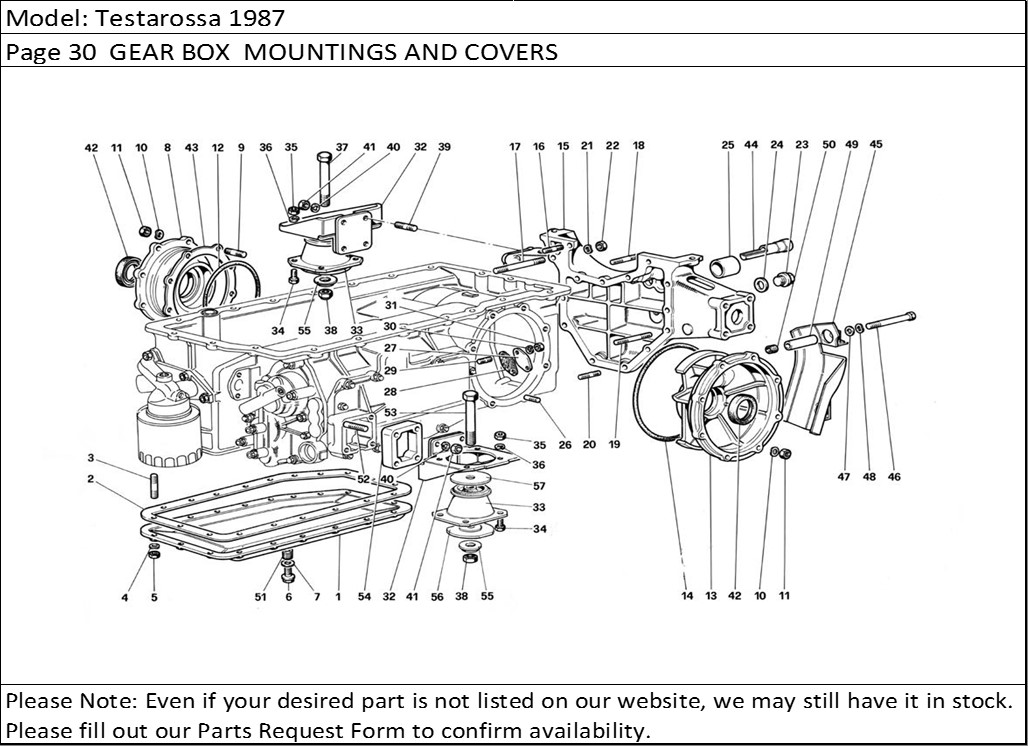

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 109436 | Oil sump cover | 1 |
| 2 | 104674 | Gasket | 1 |
| 3 | 13541121 | Stud | 18 |
| 4 | 11197771 | Washer | 18 |
| 5 | 15896221 | Nut | 18 |
| 6 | 103974 | Engine oil drain plug | 1 |
| 7 | 10257060 | Gasket | 1 |
| 8 | 125459 | Differential R.H. side cover | 1 |
| 9 | 13546521 | Stud | 8 |
| 10 | 12601471 | Washer | 16 |
| 11 | 12164721 | Nut | 16 |
| 12 | 103017 | Seal ring | 1 |
| 13 | 109629 | Differential L.H. side cover | 1 |
| 14 | 109640 | Seal ring | 1 |
| 15 | 109603 | Intermediate cover | 1 |
| 16 | 13543321 | Stud | 5 |
| 17 | 13970821 | Stud | 2 |
| 18 | 13544121 | Stud | 2 |
| 19 | 13544421 | Stud | 3 |
| 20 | 13543421 | Stud | 4 |
| 21 | 12601371 | Washer | 16 |
| 22 | 16100821 | Nut | 16 |
| 23 | 10275001 | Oil level inspection plug | 1 |
| 24 | 10263460 | Gasket | 1 |
| 25 | 109335 | Bushing between interm. body and clutch housing | 1 |
| 26 | 13546321 | Stud | 8 |
| 27 | 104772 | Flange for oil ports | 1 |
| 28 | 104773 | Gasket | 1 |
| 29 | 11500121 | Stud | 2 |
| 30 | 106850 | Washer | 2 |
| 31 | 15896221 | Nut | 2 |
| 32 | 105642 | Engine support | 4 |
| 33 | 125485 | Rubber pad, complete | 4 |
| 34 | 15970621 | Bolt | 16 |
| 35 | 12164711 | Nut | 16 |
| 36 | 106853 | Washer | 16 |
| 37 | 11369621 | Rear pads security bolt | 2 |
| 38 | 12575911 | Nut | 4 |
| 39 | 13546321 | Stud | 8 |
| 40 | 10516871 | Washer | 16 |
| 41 | 12164721 | Nut | 16 |
| 42 | 129021 | Seal ring on side covers After exhaustion use P.N. 125077 | 2 |
| 43 | 130988 | Ditto, thickness 1.3 mm. | 1 |
| 43 | 130991 | Ditto, thickness 1.9 mm. | 1 |
| 43 | 130990 | Ditto, thickness 1.7 mm. | 1 |
| 43 | 130989 | Ditto, thickness 1.5 mm. | 1 |
| 43 | 103232 | Spacer on R.H. side cover 1.638mm. thickness | 1 |
| 43 | 103428 | Ditto, thickness 1.4 mm. | 1 |
| 43 | 103431 | Ditto, thickness 1.8 mm. | 1 |
| 43 | 103427 | Ditto, thickness 1.2 mm. | 1 |
| 43 | 103429 | Ditto, thickness 1.6 mm. | 1 |
| 44 | 109339 | Oil pipe | 1 |
| 45 | 109683 | Oil conveyor | 1 |
| 46 | 11032321 | Screw | 2 |
| 47 | 109684 | Washer | 2 |
| 48 | 106850 | Washer | 2 |
| 49 | 109682 | Conveyor supporting stud | 2 |
| 50 | 13524170 | Heli-coil | 2 |
| 51 | 111352 | Heli-coil | 1 |
| 52 | 13546921 | Stud | 8 |
| 53 | 11369621 | Front pads securing bolt | 2 |
| 54 | 107530 | Spacer for pads support | 2 |
| 55 | 124731 | Washer securing front rubber pads | 4 |
| 56 | 130972 | Lower plate | 4 |
| 57 | 130973 | Upper plate | 4 |
