Testarossa 1987 Page 37 BRAKE SYSTEM
Product Description
Testarossa 1987 Page 37 BRAKE SYSTEM
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

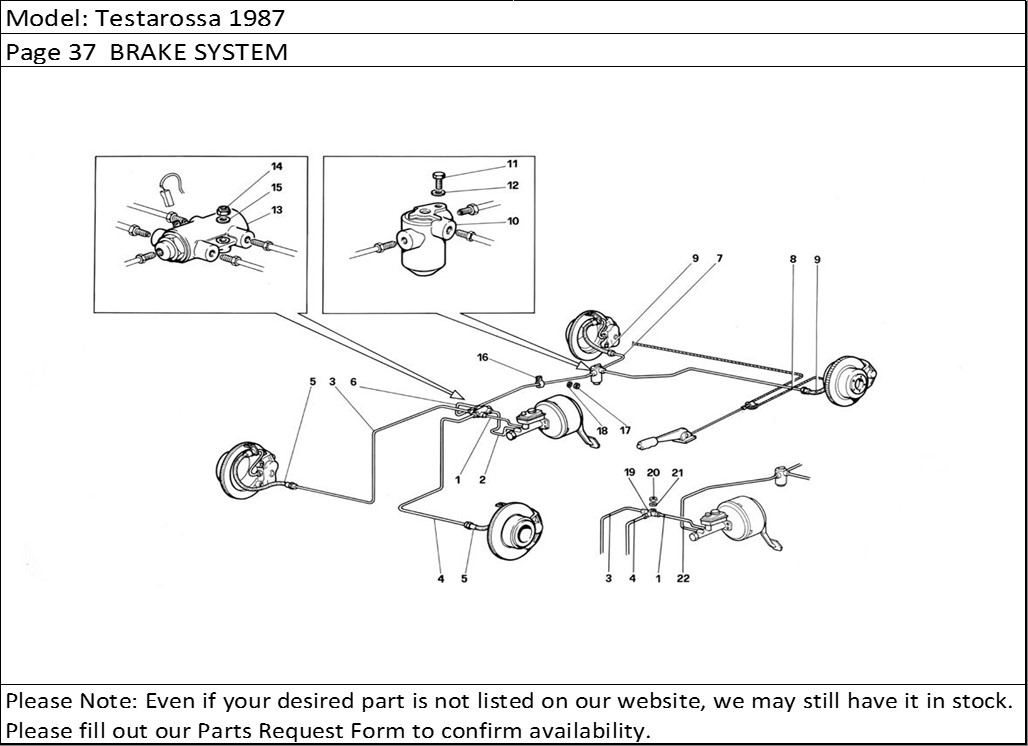

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 105849 | Pipe for front circuit | 1 |
| 2 | 105850 | Pipe from pump to valve (rear circuit)For LHD version with brake failure indicator | 1 |
| 3 | 116397 | Pipe to R.H. front brake hose | 1 |
| 4 | 105850 | Pipe to L.H. front brake hose | 1 |
| 5 | 116373 | Front brake hose | 2 |
| 6 | 106182 | Pipe from valve to rear braking regulatorFor LHD version with brake failure indicator | 1 |
| 7 | 105849 | Pipe to R.H. rear brake hoseFor RHD use No. 125760 | 1 |
| 8 | 118611 | Pipe from braking action control to L.H. rear brake hose | 1 |
| 9 | 116373 | Rear brake hose | 2 |
| 10 | 124735 | Rear braking regulatorAfter exhaustion use PN. 132440 | 1 |
| 11 | 16043021 | Screw | 1 |
| 12 | 106852 | Washer | 1 |
| 13 | 108803 | Brake failure indicator (LHD) To exhaustion - Not for US | 1 |
| 14 | 15896211 | Nut | 1 |
| 15 | 106850 | Washer | 1 |
| 16 | 10440890 | Hose supporting bracket | 2 |
| 17 | 12574211 | Nut | 2 |
| 18 | 10519401 | Washer | 2 |
| 19 | 101394 | Three way nipple | 1 |
| 20 | 12574211 | Nut | 1 |
| 21 | 12639701 | Washer | 1 |
| 22 | 126844 | Pipe from pump to rear braking | 1 |
