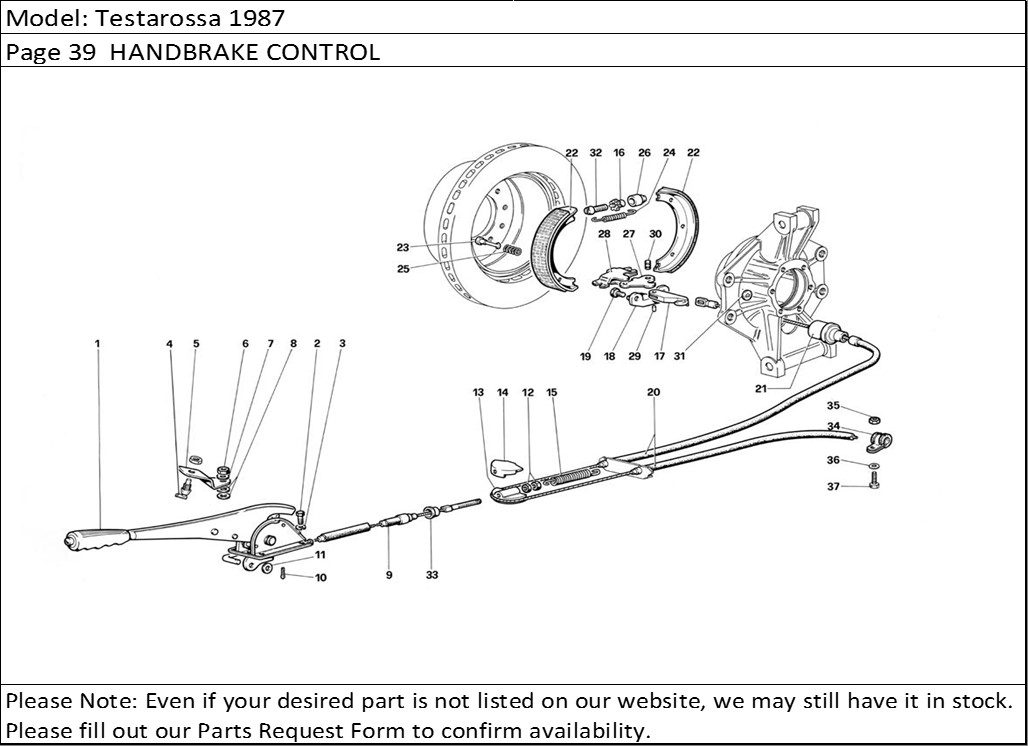

Testarossa 1987 Page 39 HANDBRAKE CONTROL
Product Description
Testarossa 1987 Page 39 HANDBRAKE CONTROL
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 118548 | Hand-brake control lever | 1 |
| 2 | 10902121 | Screw | 4 |
| 3 | 106850 | Washer | 4 |
| 4 | 114318 | Washer | 1 |
| 5 | 114320 | Bracket for switch | 1 |
| 6 | 15896411 | Nut | 1 |
| 7 | 12605270 | Washer | 1 |
| 8 | 10519301 | Flat washer (If required) | 2 |
| 9 | 120960 | Front cable | 1 |
| 10 | 10796401 | Cotter pin | 1 |
| 11 | 10519601 | Washer | 1 |
| 12 | 16102311 | Lock nut, R.H. thread | 2 |
| 13 | 118552 | Anchorage for rear cable | 1 |
| 14 | 118553 | Cable retaining plate | 1 |
| 15 | 104895 | Return spring | 1 |
| 16 | 101286 | Nut for adjusting screw | 2 |
| 17 | 105270 | Inner lever control fork | 2 |
| 18 | 106243 | Block on hub holder | 2 |
| 19 | 106242 | Screw securing block supporting hand-brake shoe control levers | 4 |
| 20 | 120961 | Rear cable Until car no. 67077 | 1 |
| 20 | 132397 | Rear cable From car no. 67079 | 1 |
| 21 | 105735 | Fork protective capAfter exhaustion use PN. 132129 | 2 |
| 22 | 101270 | Brake shoe | 4 |
| 23 | 101275 | Spring securing pin | 4 |
| 24 | 101276 | Return spring for shoe | 4 |
| 25 | 101277 | Spring | 4 |
| 26 | 101279 | Seat for adjusting screw | 2 |
| 27 | 101280 | Inner control lever | 2 |
| 28 | 101281 | Outer control lever | 2 |
| 29 | 101282 | Pin securing fork to inner lever | 2 |
| 30 | 101283 | Pin for joint | 2 |
| 31 | 101284 | Spring plate | 4 |
| 32 | 101285 | Screw | 2 |
| 33 | 118554 | Bushing | 1 |
| 34 | 10441290 | Clamp | 1 |
| 35 | 12574211 | Nut | 2 |
| 36 | 106850 | Washer | 1 |
| 37 | 10902121 | Nut | 1 |
